Electro-Craft BRU-200 - Figure 5-2 OM Jumper and Personality Module Locations

Start-Up and Adjustments
26
c::::IJFl 'L------J'
[r
IEDIP9
IEDIPlO
Pl3
e e e
Pll Pl2
I
lED
PIS
FUSE
DIAGNOSTIC JI'()JCATOR LIGHTS-. U_
PERSONALITY HOOULE CPif)
Pl2 Pl3
a PH
PIS
s,
BRu-200 DRIVE HODULE
LOGIC PC BOARD
CCCli'IPOHENT SlllEl
BRu-SOo DRIVE MODULE
LOGIC PC BOARD
CCt1I'I>OHEKT SlOEJ
JUMPER
ACROSS
PINS SELECTS:
pg
1-2&
PH IS RAM OR EPROM
2-3 PH IS EE PROM
1-2&
PH PARAMETERS CAN NOT BE CHANGED
P10
2-3 PH PARAMETERS CAN BE CHANGED
&:
1-2
RS422 CHOST MODE) SERIAL INPUT AT P6
2-3&
RS232 SERIAL INPUT AT P6
1-2
RS422 CHOST MODE) SERIAL OUTPUT AT P6
2-3&
RS232 SERIAL OUTPUT AT P6
1-2&
RS232 SERIAL OUTPUT AT P6
2-3 RS422 CHOST MODE) SERIAL OUTPUT AT P6
1-2
MOTOR OVERTEHPERATURE SWITCH
IS NOT MONITORED 3
P14
2-3&
MOTOR OVERTEHPERATURE SWITCH
IS MONITORED
1-2&
INTERNAL TORQUE COMMAND
P1S
2-3
EXTERNAL TORQUE COMMAND
NOTES:
DENOTES STANDARD JUMPER SETTING.
£ SEE SECTION X DRAWING NO. 9101-0136.
CAUTION : RUNNING MOTOR WITH J14
ACROSS PINS 1-2 WILL NOT PROTECT
MOTOR FROM OVERHEATING.
USED ONLY WHEN SPECIFIED FOR OPTION CARD.

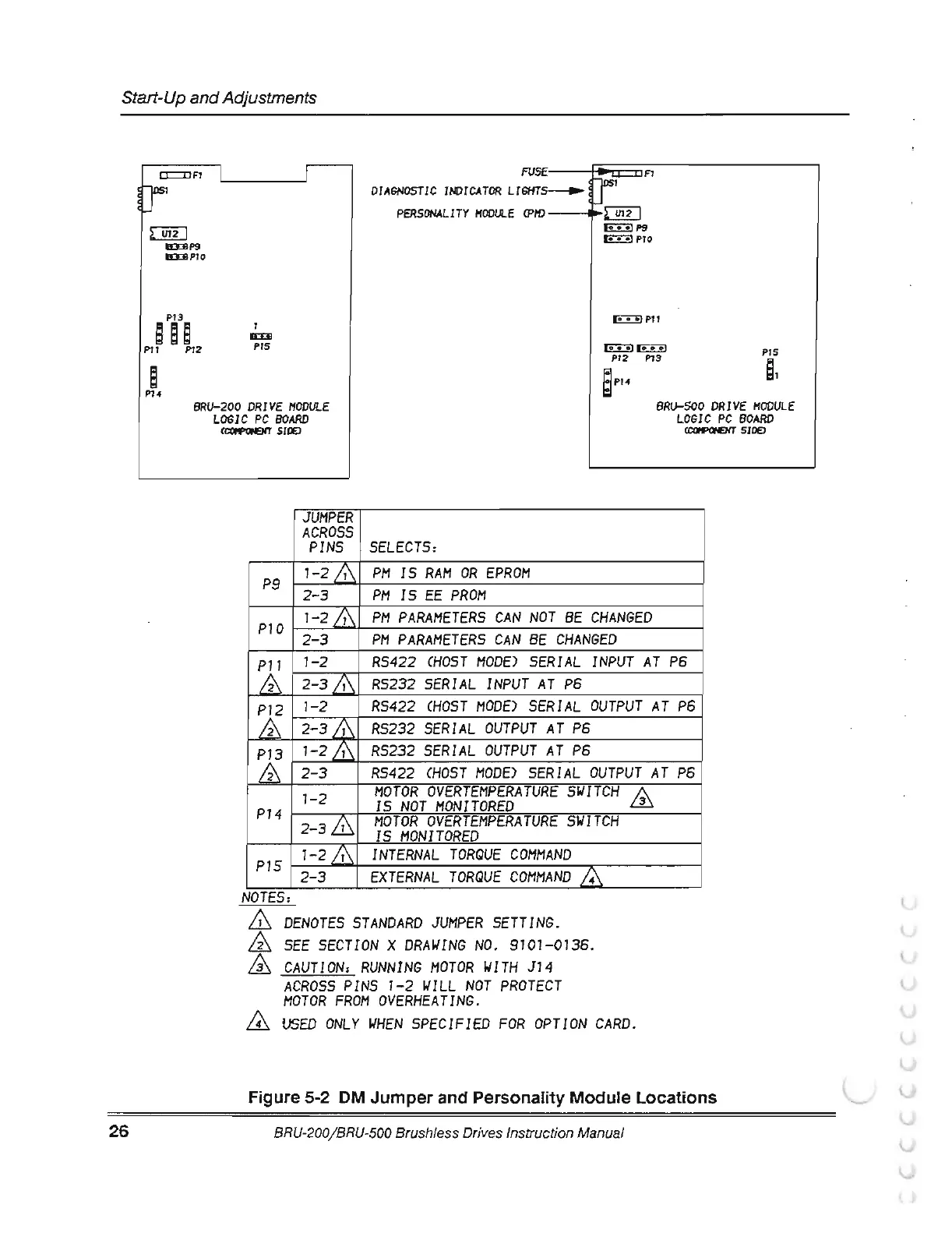

Figure 5-2 DM Jumper and Personality Module Locations
BRU-200/BRU-500 Brushless Drives Instruction Manual
