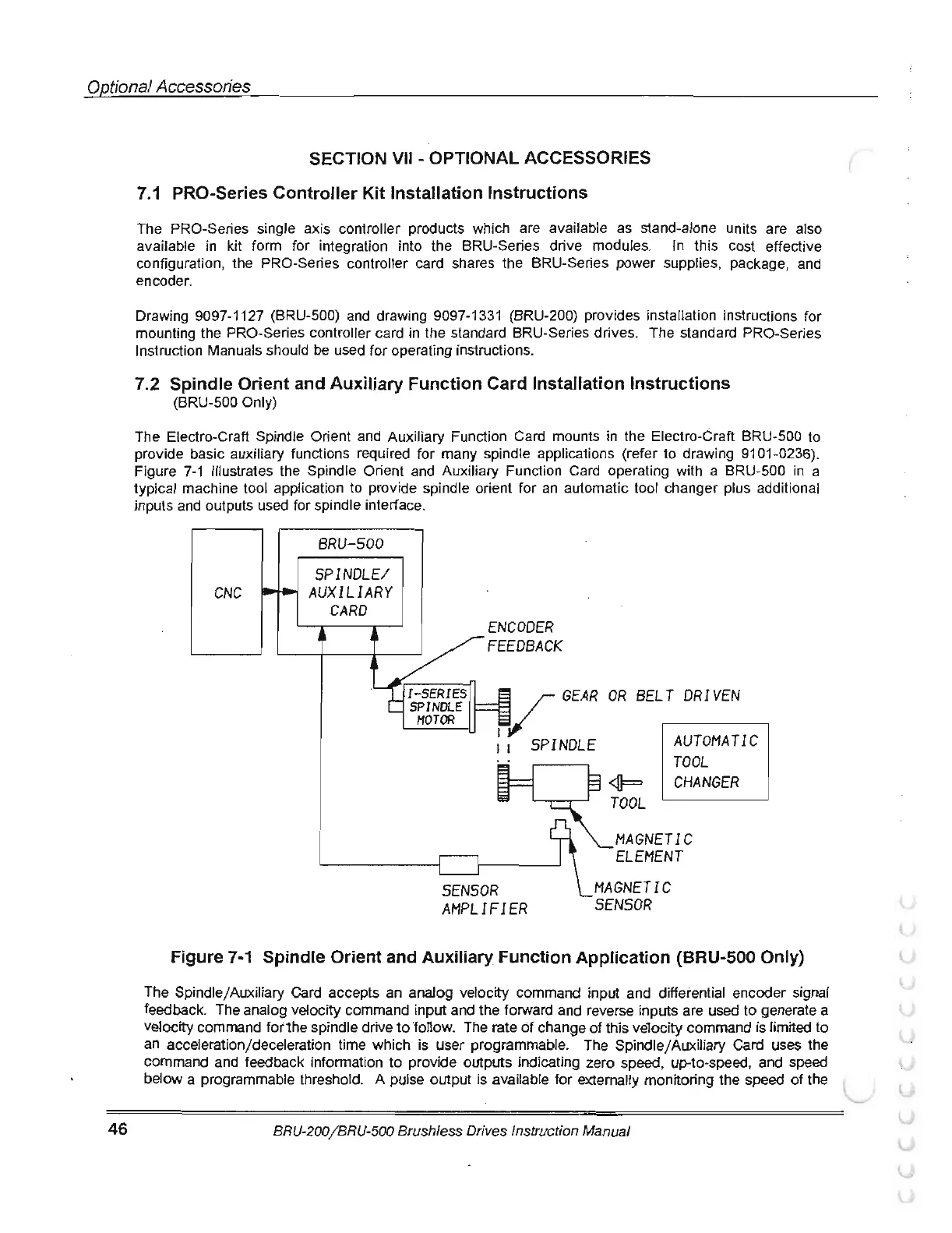

SECTION VII - OPTIONAL ACCESSORIES
7.1
PRO-Series Controller Kit Installation Instructions
The PRO-Series single axis controller products which are available as stand-alone units are also
available in kit form
for
integration into the BRU-Series drive modules. In this cost effective
configuration, the PRO-Series controller card shares the BRU-Series power supplies, package, and
encoder.
Drawing 9097-1127 (BRU-500) and drawing 9097-1331 (BRU-200) provides installation instructions
for
mounting the PRO-Series controller card in the standard BRU-Series drives. The standard PRO-Series
Instruction Manuals should be used
for
operating instructions.
7.2 Spindle Orient and Auxiliary Function Card Installation Instructions
(BRU-500 Only)
The Electro-Craft Spindle Orient and Auxiliary Function Card mounts in the Electro-Craft BRU-500 to
provide basic auxiliary functions required
for
many spindle applications (refer to drawing
91
01-0236).
Figure
7-1
illustrates the Spindle Orient and Auxiliary Function Card operating with a BRU-500 in a
typical machine tool application to provide spindle orient
for
an
automatic tool changer plus additional
inputs and outputs used
for
spindle interface.
BRU-500
SPINDLE/
CNC
AUXILIARY
CARD
ENCODER
FEEDBACK
1
v
GEAR
OR
BELT
DR
/YEN
1 1
SPINDLE
AUTOMATIC
TOOL
CHANGER
MAGNETIC
ELEMENT
MAGNETIC
SENSOR
Figure 7·1 Spindle Orient and Auxiliary Function Application (BRU-500 Only)
The Spindle/Auxiliary Card accepts an analog velocity command input and differential encoder signal
feedback. The analog velocity command input and the forward and reverse inputs are used to generate a
velocity command for
the
spindle drive
to
fonow. The rate
of
change
of
this velocity command is limited
to
an acceleration/deceleration time which is user programmable. The Spindle/Auxiliary Card uses the
command and feedback information
to
provide outputs indicating zero speed, up-to-speed, and speed
below a programmable threshold. A pulse output is available for externally monitoring the speed
of
the
BRU-200/BRU-500 Brushless Drives Instruction Manual
(
(
