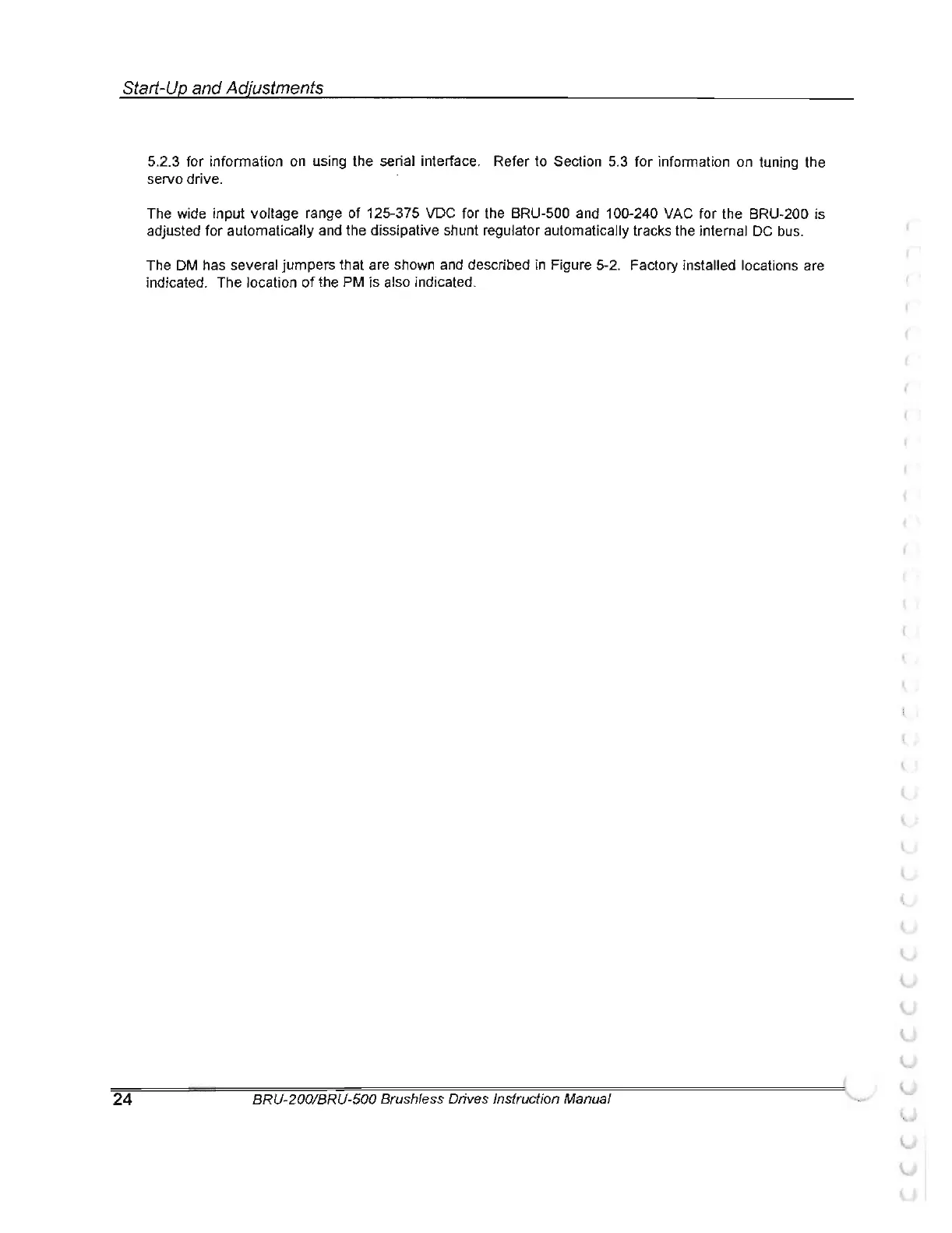

Start-Up and Adjustments
24
5.2.3 for information on using the serial interface. Refer to Section 5.3 for information
on
tuning the
servo drive. ·
The wide input voltage range of 125-375 VDC for the BRU-500 and 100-240
VAC
for the BRU-200 is
adjusted for automatically and the dissipative shunt regulator automatically tracks the internal
DC
bus.
The
OM
has several jumpers that are shown
and
described in Figure 5-2. Factory installed locations are
indicated. The location
of
the PM is also indicated.
BRU-200/BRU-500 Brushless Drives Instruction Manual
(
