97
Section F - Ice Maker

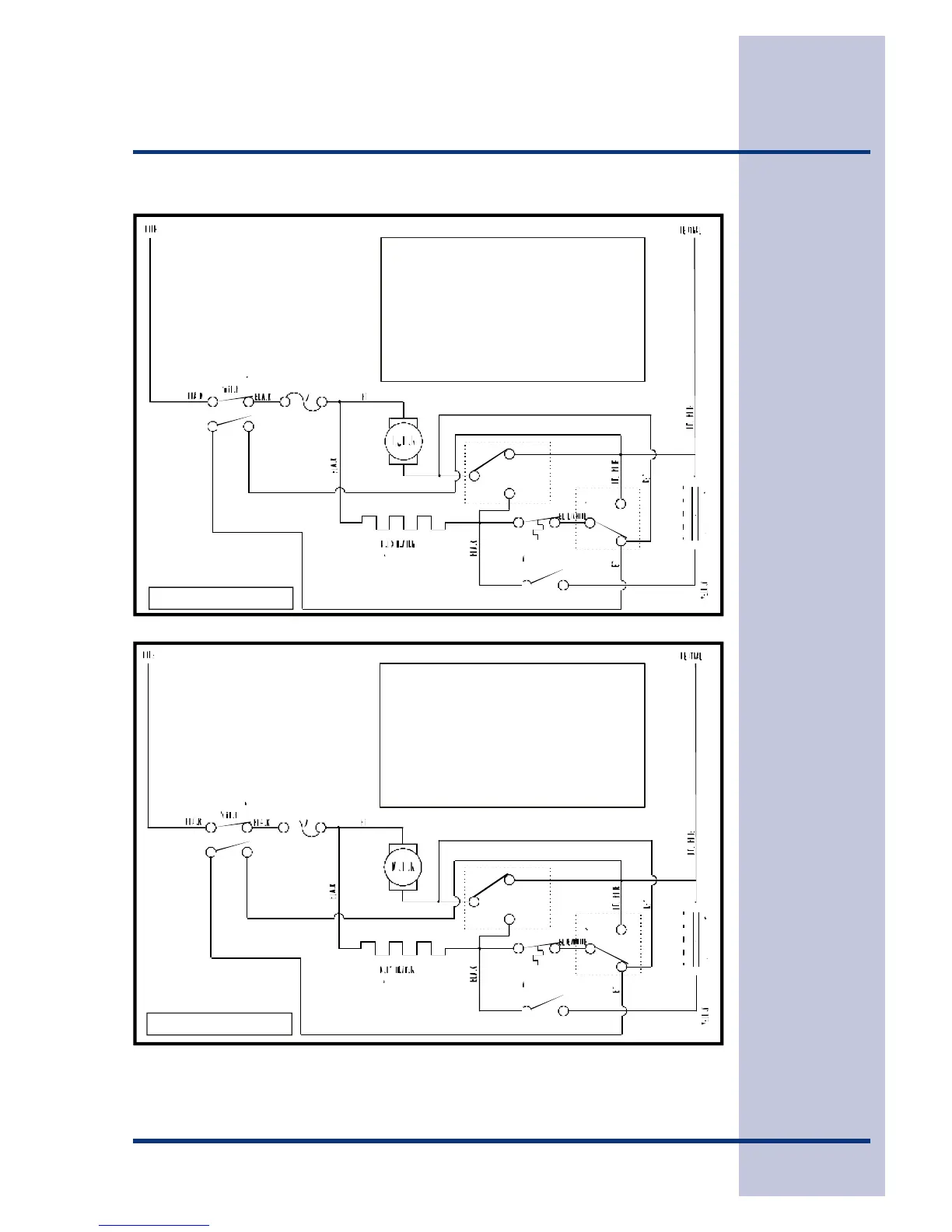

Ice Maker - Electric 5
NC
C
NC
C
NO
NO
· Ice Maker connected to electricity.
· Mold temperature below 15° F
· Motor stalls as finger hits ice cubes
· Power on heater.
· Thermostat closed.
· Control Arm swinging down.
· ON/OFF switch in the ON position.
· Shut-Off Switch closed C to NC.
· Hold Switch closed C to NO.
· Water Fill Switch open.
.
.
Ice Maker - Electric 4
NC
C
NC
C
NO
NO
· Ice Maker connected to electricity.
· Mold temperature below 15° F
· Motor rotating
· Power on heater.
· Thermostat closed.
· Control Arm swinging up.
· ON/OFF switch in the ON position.
· Shut-Off Switch closed C to NC.
· Hold Switch closed C to NO.
· Water Fill Switch open.
.
.
