23. Programme unit
438 9145-41/03
03.11
DEFAULT MEDIUM EXTRACT TIME 00:15
DEFAULT HIGH EXTRACT TIME 00:20
DEFAULT DRAIN TIME 00:40
DEFAULT DISTR. TIME 00:30
DO UNBALANCE MEASUREMENT Y
DRAIN OPEN DELAY 0:13
START EXTRACT TIME 00:30
ROLLOUT TIME 00:01
PAY PER WASH ALARM 0
LOCK TEST DELAY 0:10
DRAIN TIME WHEN OVERFILL 0:05
OIL LUBRICATION HOURS 100
PULSE TIME OIL LUBR. SEC 0:01
AMOUNT OF I/O MODULES (1-3) 3
1 2 3
4 5 6
7 8 9
0
Speed
Time
RinseExtraction
Water
filling
Rollout time
Rollout time

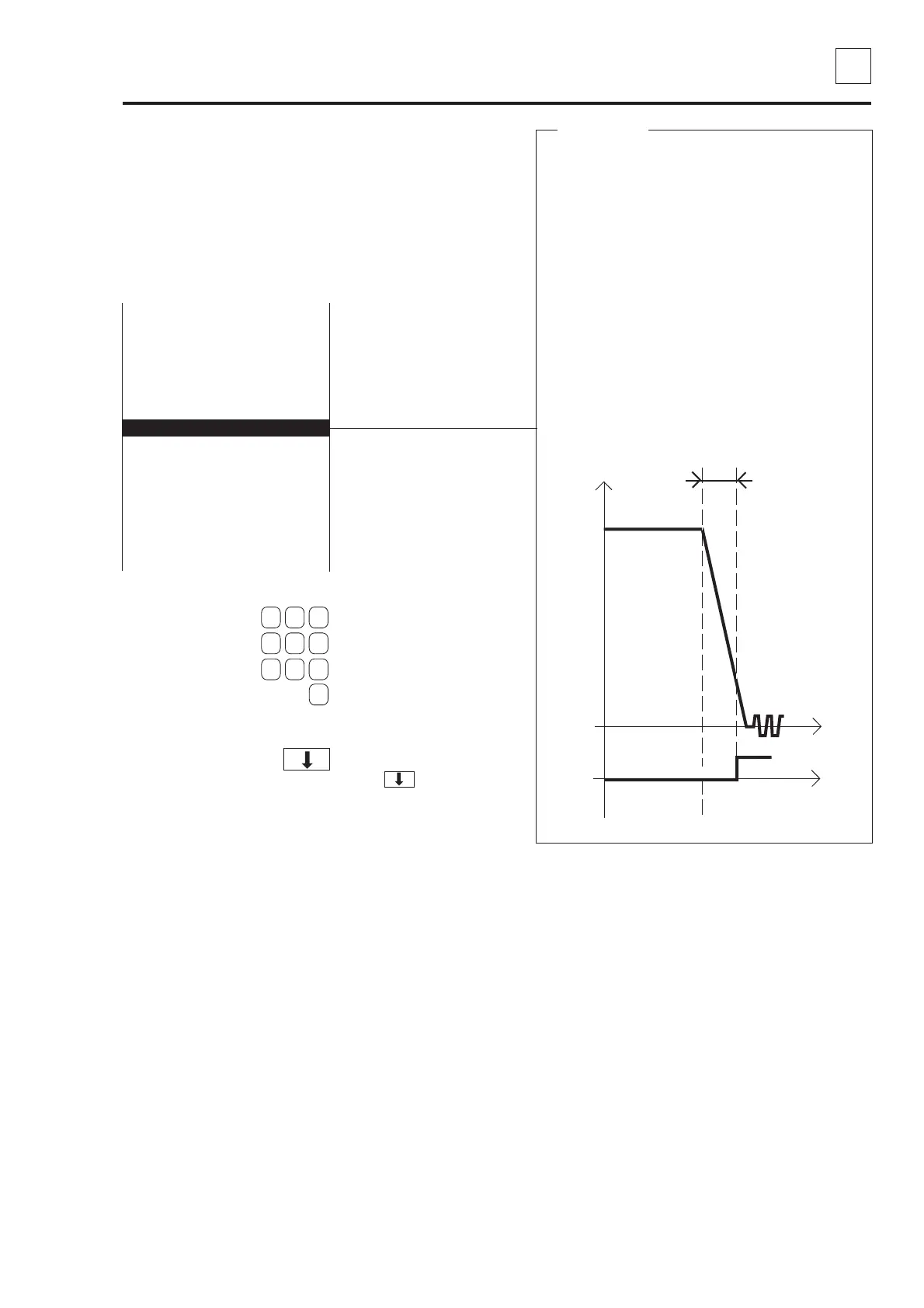

Here you determine whether you want a time delay
after each extraction before the machine starts to fill
with water, to give the motor time to slow down.
This function is useful if the motor is not a
frequency-controlled one.
Another function, intended primarily for frequency-
controlled motors (which continuously report motor
speed to the PCU), is called ”MAX. SPEED
DURING FILLING” (SETTINGS 2, described later in
this section). This function allows you to specify a
speed which the motor must drop below before
water filling can begin.
If these functions are combined, you must ensure
that the ”rollout time” will have ended before water
filling is allowed to begin, regardless of whether the
drum speed has, prior to that, dropped below the
speed specified in ”MAX. SPEED DURING
FILLING”.
Use the numeric keys to
enter the value.
If you make a mistake while
entering digits:
Press ERASE.
When you have finished:
Press .
