23. Programme unit
52
438 9145-41/03
03.11
TEMPERATURE STEP IN COOL-DOWN 4 °C
DEFAULT LOW EXTRACT TIME 00:10
DEFAULT MEDIUM EXTRACT TIME 00:15
DEFAULT HIGH EXTRACT TIME 00:20
DEFAULT DRAIN TIME 00:40
DEFAULT DISTR. TIME 00:30
DO UNBALANCE MEASUREMENT Y
DRAIN OPEN DELAY 0:13
START EXTRACT TIME 00:30
ROLLOUT TIME 00:01
PAY PER WASH ALARM 0
LOCK TEST DELAY 0:10
DRAIN TIME WHEN OVERFILL 0:05
OIL LUBRICATION HOURS 100
1 2 3
4 5 6
7 8 9
0
DEFAULT LOW EXTRACT TIME 00:10
DEFAULT MEDIUM EXTRACT TIME 00:15
DEFAULT HIGH EXTRACT TIME 00:20
DEFAULT DRAIN TIME 00:40
DEFAULT DISTR. TIME 00:30
DO UNBALANCE MEASUREMENT Y
DRAIN OPEN DELAY 0:13
START EXTRACT TIME 00:30
ROLLOUT TIME 00:01
PAY PER WASH ALARM 0
LOCK TEST DELAY 0:10
DRAIN TIME WHEN OVERFILL 0:05
OIL LUBRICATION HOURS 100
PULSE TIME OIL LUBR. SEC 0:01
1 2 3
4 5 6
7 8 9
0
2
1
Speed
Time

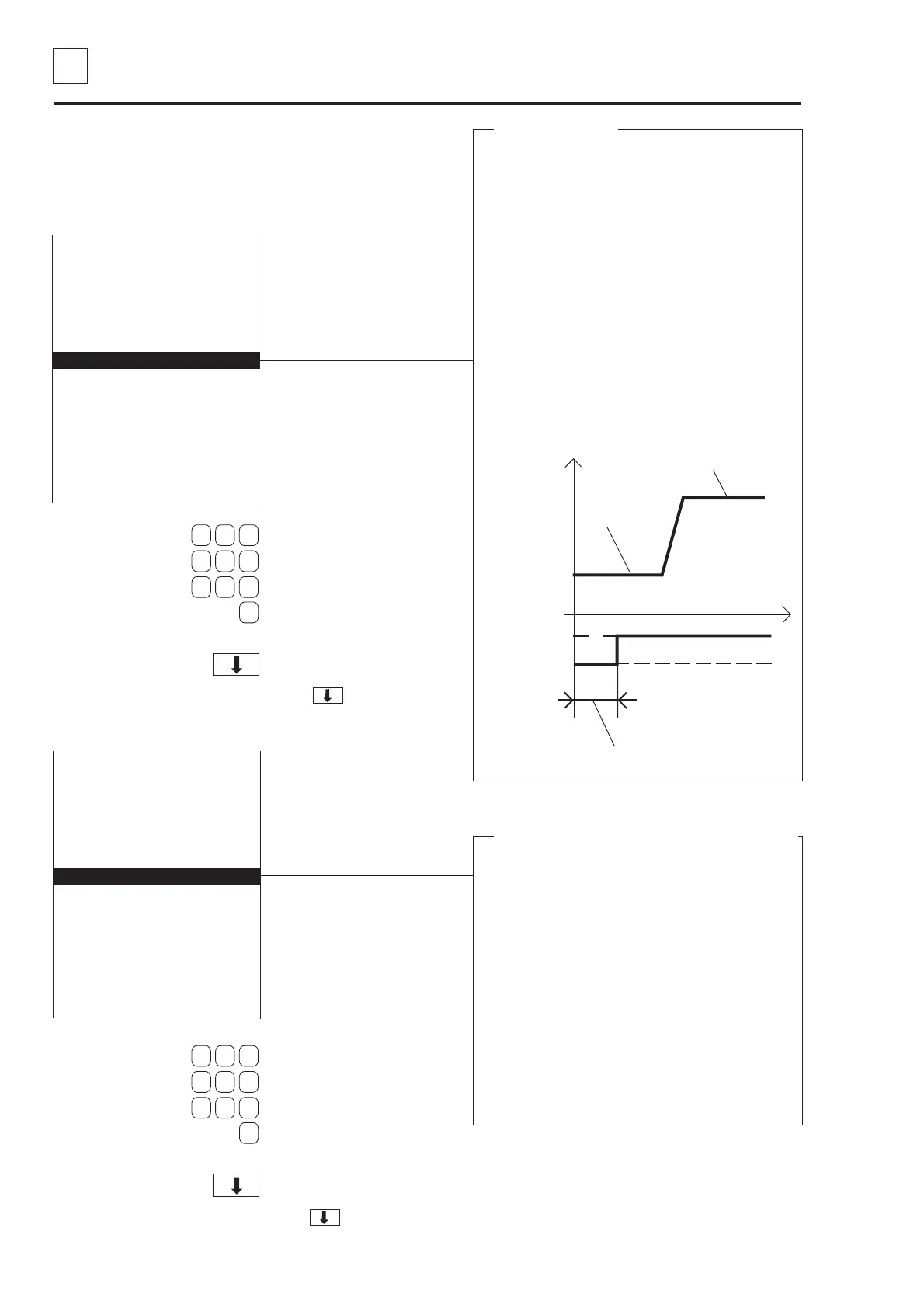

Drain open
Drain closed
Drain open delay
Here you determine whether you want a delay
before the drain valve opens, for example if you
want the drum to have time to gather speed first,
before the valve opens.
The drain module
may be structured according to point 1 (here)
only, according to point 2 only, or a combination
of 1 and 2, according to the way you program.
1 Drain time
The drain will be open. The motor may be at a
standstill, on gentle action or normal action.
2 Distribution time
The drain will be open. The motor runs at
distribution speed. During this time the wash
load will be distributed evenly around the walls
of the inner drum.
You can program this time here
Start extract time (i.e. Initial extraction time)
Here you determine the length of time for initial
extraction (if used).
When you are programming the ”main data” for a
wash program you can determine whether the
program is to begin with initial extraction. Initial
extraction is used to spin the load outwards against
the drum walls, which makes it absorb water more
readily on first filling. As a result of this the machine
will not require so much extra filling (repeated
topping up) later (to maintain its required water
level).
There are two other functions affecting initial
extraction which can be programmed under
SETTINGS 2:
• START EXTRACT SPEED
• START EXTRACT ACCELERATION
Use the numeric keys to
enter the value.
If you make a mistake while
entering digits:
Press ERASE.
When you have finished:
Press .
Use the numeric keys to
enter the value.
If you make a mistake while
entering digits:
Press ERASE.
When you have finished:
Press .
