Service
Manual
23
23. Programme unit
60
438 9145-41/03
03.11
AMOUNT OF I/O MODULES (1-3) 3
DELAY CLEAR DOOR TEXT 04:00
MAX DRAIN TIME 4:00
TIMEOUT DURING PAUSE 1:00
MINIMUM TEMPERATURE INCREASE 5°C
DOOR OPEN DELAY FOR MOTOR LOST 1:00
ERROR, NO WATER Y
ERROR, OPEN DOOR Y
ERROR, DOOR LOCK Y
ERROR, LOW TEMPERATURE Y
ERROR, HIGH TEMPERATURE Y
ERROR, WATER IN MACHINE Y
ERROR, NO HEAT Y
1 2 3
4 5 6
7 8 9
0
1 2 3
4 5 6
7 8 9
0
ERROR, NO WATER Y
ERROR, OPEN DOOR Y
ERROR, DOOR LOCK Y
ERROR, LOW TEMPERATURE Y
ERROR, HIGH TEMPERATURE Y
ERROR, WATER IN MACHINE Y
ERROR, NO HEAT Y
ERROR, REMAINING WATER Y
ERROR, UNBALANCE SWITCH Y
ERROR, MOTOR COMMUNICATION Y
ERROR, LEVEL ADJUST Y
ERROR, EMERGENCY STOP Y
ERROR, WEIGHT FROM SCALE Y
ERROR, DOOR LOCK SWITCH Y
ERROR, START NOT ALLOWED Y
ERROR, MIS COMMUNICATION Y
ERROR, EWD INTERLOCK Y
ERROR, I/O COMMUNICATION Y
ERROR, LOW OIL LEVEL Y
ERROR, LOW OR HIGH VOLTAGE Y
ERROR, ERROR CODES FROM MOTOR Y
ERROR, PRESS SENSOR TILT Y
ERROR, PRESSURE SENSOR TIMEOUT Y
ERROR, DOOR SWITCH TILT Y
ERROR, LEVEL OFFSET Y
ERROR, LEVEL SYSTEM NOT CALIB. Y

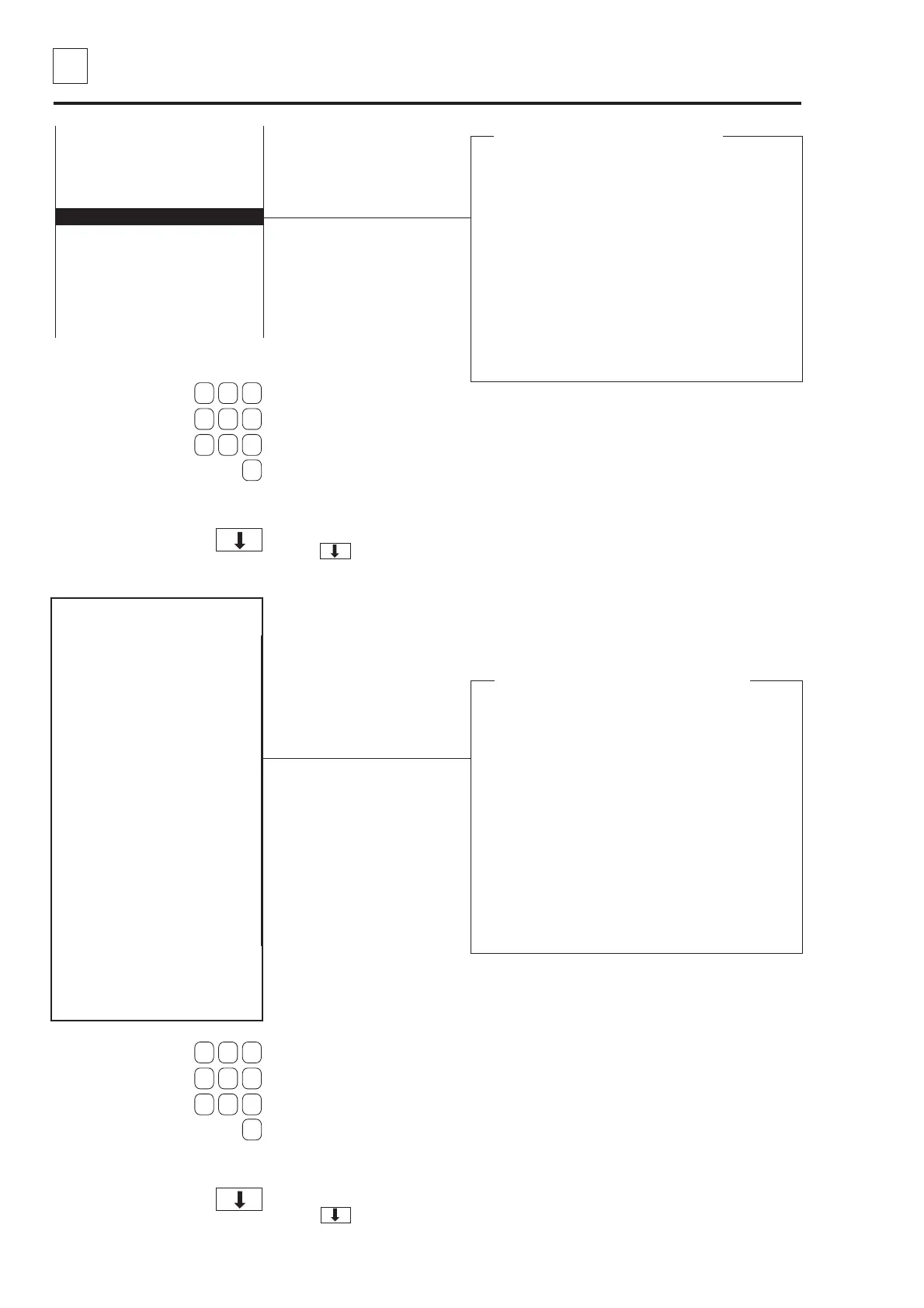

Door open delay for ”motor lost”
Here you determine the length of time during which
the door will be prevented from opening if, (in
machines with frequency control) the MCU loses
control of braking at the end of extraction.
In machines with frequency-controlled motors it is
the MCU which ensures that the motor and drum
are braked smoothly after extraction speed.
If anything should go wrong at this stage so that
the MCU loses control of the braking process
(colloquially referred to as ”motor lost”) the MCU
will inform the PCU. If the program has reached the
final extraction sequence, the PCU will ensure that
the door cannot be opened until the time you
program here has elapsed.
Switch on/off monitoring of machine
functions/error message display
All of these options (involving monitoring of
machine functions and display of the related error
message if flagged) can be switched on or off
here.
If you answer Yes (Y):
This enables function monitoring/error message
display for this particular line.
If you answer No (N):
This disables function monitoring/error message
display for this particular line.
On the next two pages is a summary of all the
options accessible here, the errors monitored and
the error message which will be displayed for
each.
Use the numeric keys to
enter the value.
If you make a mistake while
entering digits:
Press ERASE.
When you have finished:
Press .
Use the numeric keys to
enter the value.
If you make a mistake while
entering digits:
Press ERASE.
When you have finished:
Press .
