23. Programme unit
438 9145-41/03
03.11
OIL LUBRICATION HOURS 100
PULSE TIME OIL LUBR. SEC 0:01
AMOUNT OF I/O MODULES (1-3) 3
DELAY CLEAR DOOR TEXT 04:00
MAX DRAIN TIME 4:00
TIMEOUT DURING PAUSE 1:00
MINIMUM TEMPERATURE INCREASE 5°C
DOOR OPEN DELAY FOR MOTOR LOST 1:00
ERROR, NO WATER Y
ERROR, OPEN DOOR Y
ERROR, DOOR LOCK Y
ERROR, LOW TEMPERATURE Y
ERROR, HIGH TEMPERATURE Y
ERROR, WATER IN MACHINE Y
1 2 3
4 5 6
7 8 9
0
PULSE TIME OIL LUBR. SEC 0:01
AMOUNT OF I/O MODULES (1-3) 3
DELAY CLEAR DOOR TEXT 04:00
MAX DRAIN TIME 4:00
TIMEOUT DURING PAUSE 1:00
MINIMUM TEMPERATURE INCREASE 5°C
DOOR OPEN DELAY FOR MOTOR LOST 1:00
ERROR, NO WATER Y
ERROR, OPEN DOOR Y
ERROR, DOOR LOCK Y
ERROR, LOW TEMPERATURE Y
ERROR, HIGH TEMPERATURE Y
ERROR, WATER IN MACHINE Y
1 2 3
4 5 6
7 8 9
0

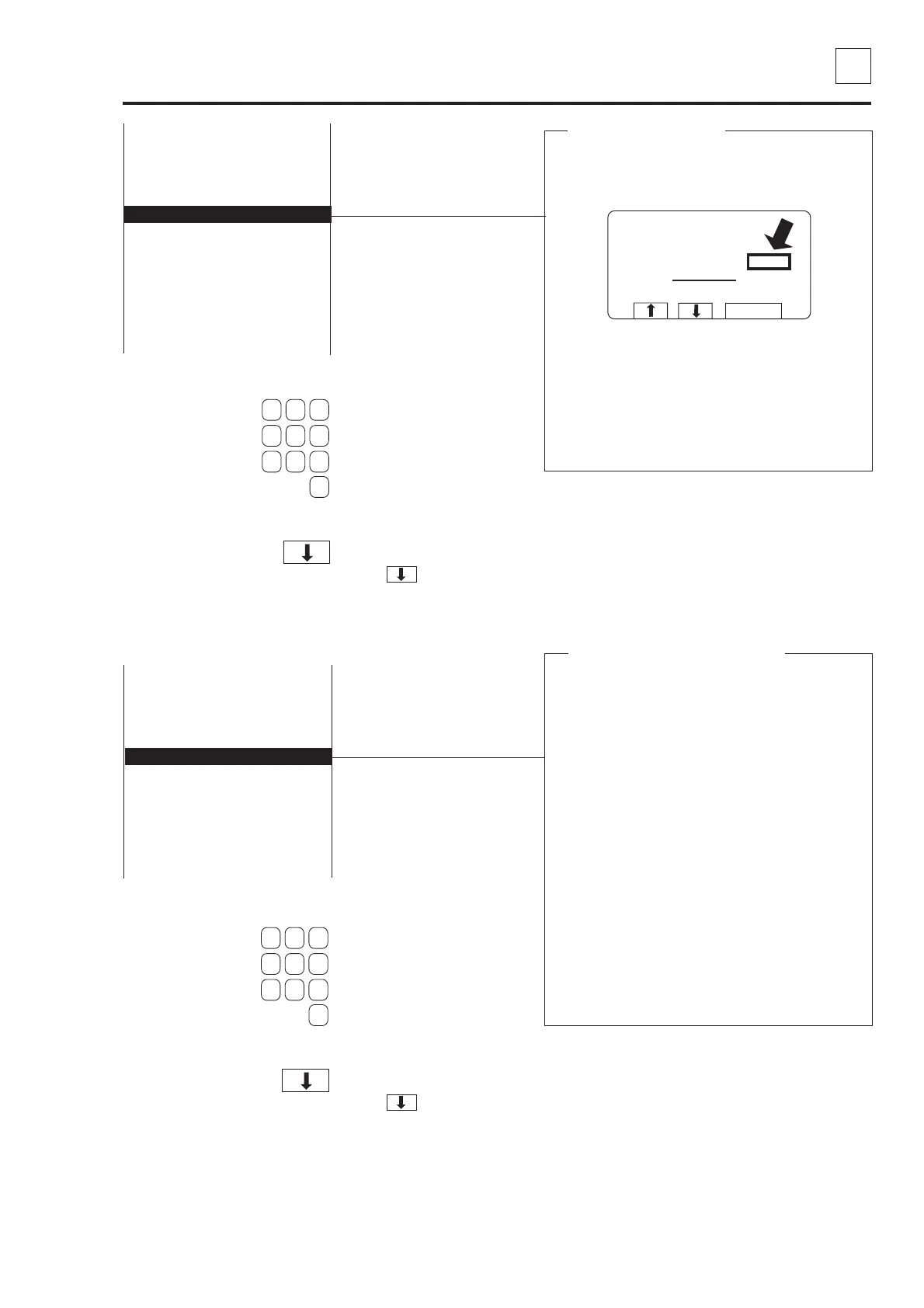

Minimum temperature increase
Here you determine the smallest temperature
increase allowed during the time specified in
MAXIMUM HEATING TIME (see below).
These three functions are linked:
The following two functions also affect the way in
which the machine is controlled during heating:
MAXIMUM HEATING TIME (SETTINGS 1)
Here you determine the maximum time it may
take to heat the water the number of degrees you
have specified above.
The function ERROR, NO HEAT (SETTINGS 2)
If you answer Y (Yes):
If the temperature has not increased by the
number of degrees you program here over the
time which is specified in MAXIMUM HEATING
TIME, the error message NO HEATING will
appear on the display.
If you answer N (No):
Monitoring of heating will be switched off, and
no error message will be displayed.
Timeout during pause
Here you determine the maximum time for a pause
in the program, if it is to be available for use in
calculating the average length of the program.
PROGRAM STEP: MAIN WASH 1
STEP TIME: 720 SEK
SET TEMPERATURE: 85 °C
ACTUAL TEMPERATURE: 21 °C
REMAINING TIME: 70 MIN
DRUM SPEED: 48 RPM
RAPID ADVANCE
PAUSE
991 NORMAL 95°C STD
SELECT
The time shown on the display alongside
”REMAINING TIME” is based on the average of
the last five times this program was used. This
time also includes pauses in the program. If the
pause time in the program exceeds the time
parameter you have programmed, it will not be
used for average-time calculation derived from the
current program operation.
Use the numeric keys to
enter the value.
If you make a mistake while
entering digits:
Press ERASE.
When you have finished:
Press .
Use the numeric keys to
enter the value.
If you make a mistake while
entering digits:
Press ERASE.
When you have finished:
Press .
