NOTICE
Use small adjustments (no more than 1/4 turn).
Run the belt for several minutes with an engine
speed of 1800 rpm to check results before making
any additional adjustments.
6. If belt runs to the left (as viewed facing toward
the front of the (sweeper), increase tension on
the left side. Then decrease tension an equal
amount on the right side.
SP-21
SERVICE
PROCEDURES

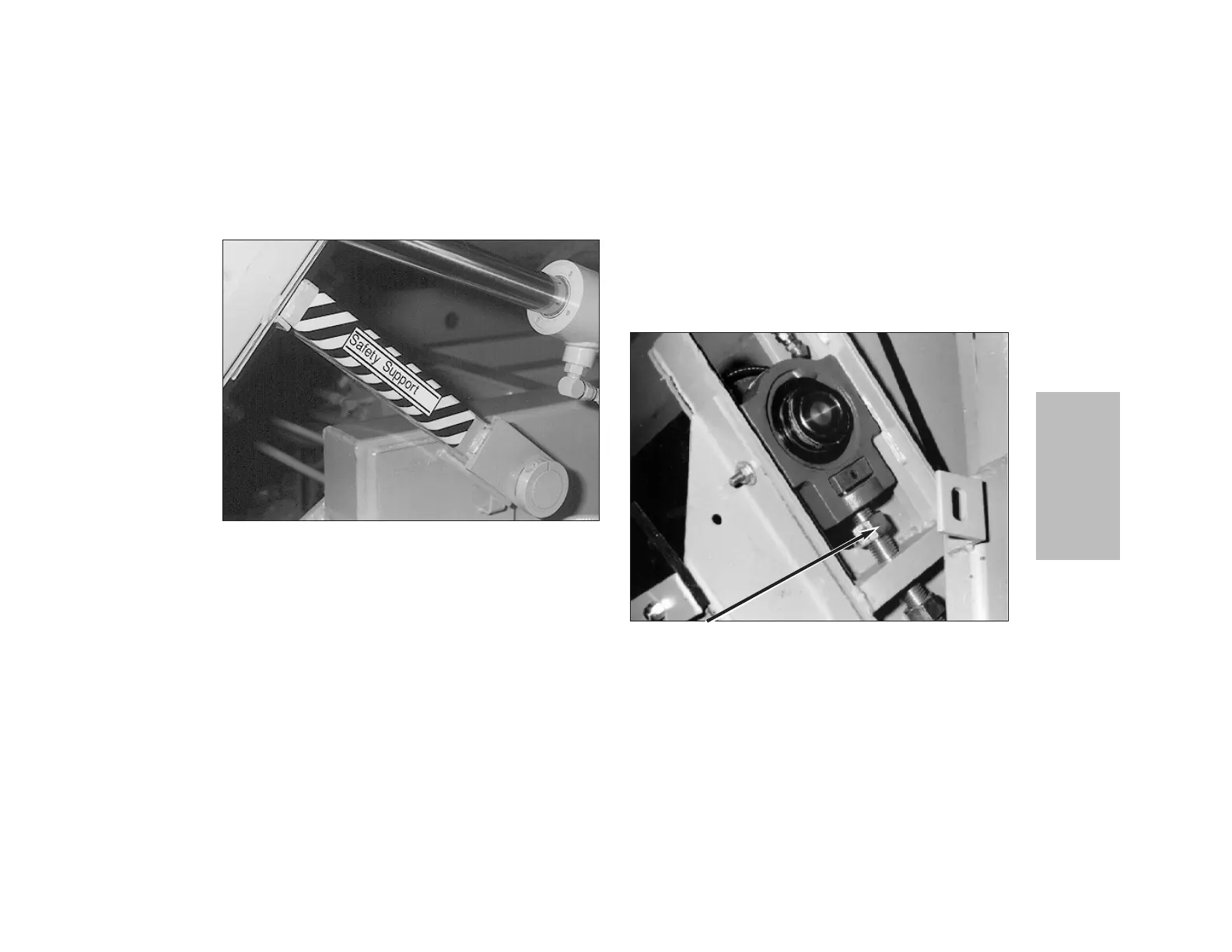

Figure SP-16
Safety Support In Place
(Up to F-999)
Figure SP-17
Upper Conveyor Assembly
Adjustment Nut
