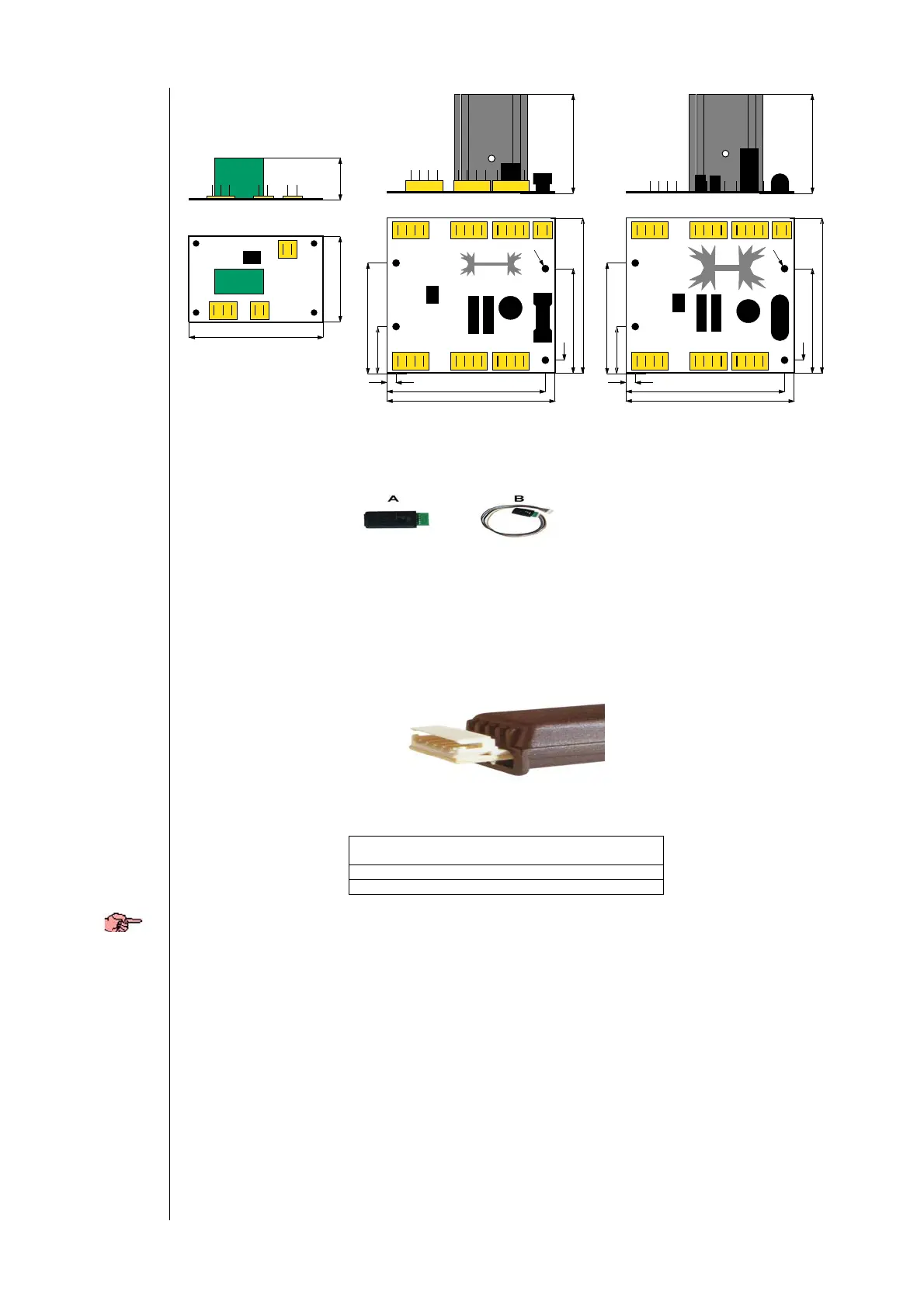

18.2 Copy Card
This device is used to upload and download the device parameter map.
A: Copy Card viewed from below: dimensions 4x2x1.3
cm
B: Copy Card and TTL cable (length 30 cm)
C: Copy Card, viewed from 3/4
The following conventions are usually applicable:
• UPLOAD means copying parameters from a unit to COPYCARD
• DOWNLOAD means copying the parameters from a COPY CARD to a unit
18.3 EMC filter
If the fans are regulated by means of the cutting phase, it is necessary to install a noise filter upstream from the power
supply. This filter removes the electromagnetic noise this control emits into the mains.
18.4 Param Manager
If you have an adequate Personal Computer running Windows 95 or a higher version, the Param Manager software, and an
adequate interface module and proper wiring, it is possible to control all the device parameters by means of a Personal
Computer.
The unit is easy to program thanks to a series of interfaces that offer a logical, controlled, fast and simple approach.
Æ For further information, see the Param Manager manual.
Module
dimensions
Copy Card photo
copy Card
5.0
85.0
90.0
7.0
56.0
83.0
59.0
25.0
fl 4.0
50.0
CF-05
5.0
85.0
90.0
7.0
56.0
83.0
59.0
25.0
fl 4.0
64.0
CF-15
CF-22
72.0
47.026.0
CF-REL
