2.7.3 Segmented display keypad description
TOTAL
ZONE
TEL
EXIT
SIREN
1
2
3
A
1
2
4
5
7
3
6
9
F
0
8
C
S
O
E
**
3
2
1
3
KP100
+
-

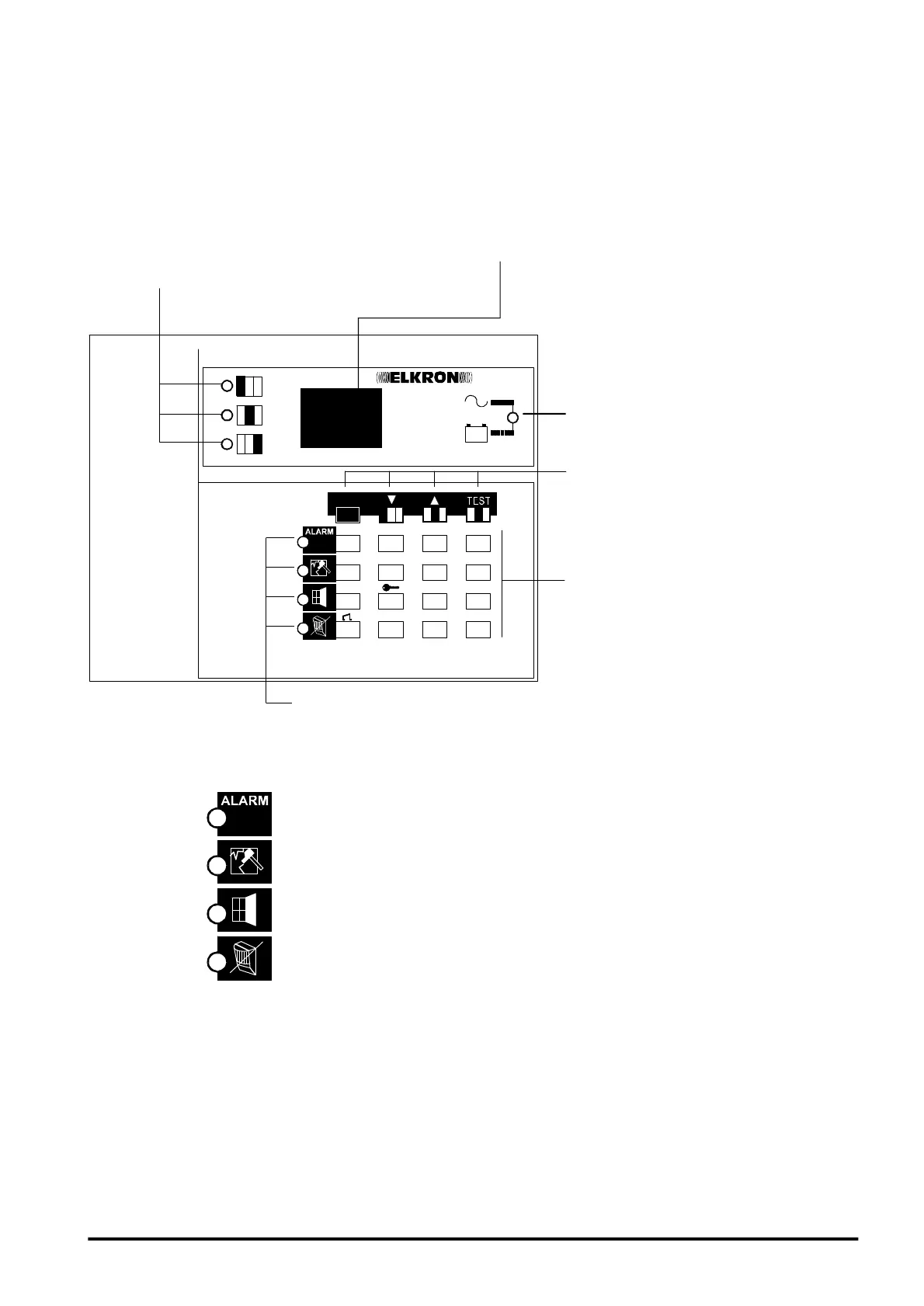

Indicates the presence of the mains
voltage and the level of battery charge:
OFF = 220V~ mains absent
FIXED LIGHT = 220V~ mains present
FLASHING = Insufficient battery charge
These display the status of the 3 zones
into which the alarm system is divided:
ON = armed zone
OFF = disarmed zone
These Leds flash to indicate the presence
of events to be displayed, see paragraph
“Display of System Status”
Keys used to arm/disarm the system.
These are also used to scroll the
programming menu.
Keys used to type the secret code and to
select certain functions on the alarm unit
programming menu.
A flashing light indicates that alarms have occurred.
A flashing light indicates that burglaries have occurred on one or more
parts of the system.
A flashing light indicates that there are some protected zones (doors or
windows protected by contacts) that are still open.
A flashing light indicates that some sensors/contacts are disabled.
Segmented display
