Elna International Corps. SA 3210 / 3230 Service manual
Needle Swing
If the needle swings when it is still in the fabric, correct it as follows:
Adjusting procedure:
1. Remove the face cover and top cover (See pages 4-5).
2. Select zigzag stitch and set the stitch width control at "6.5".

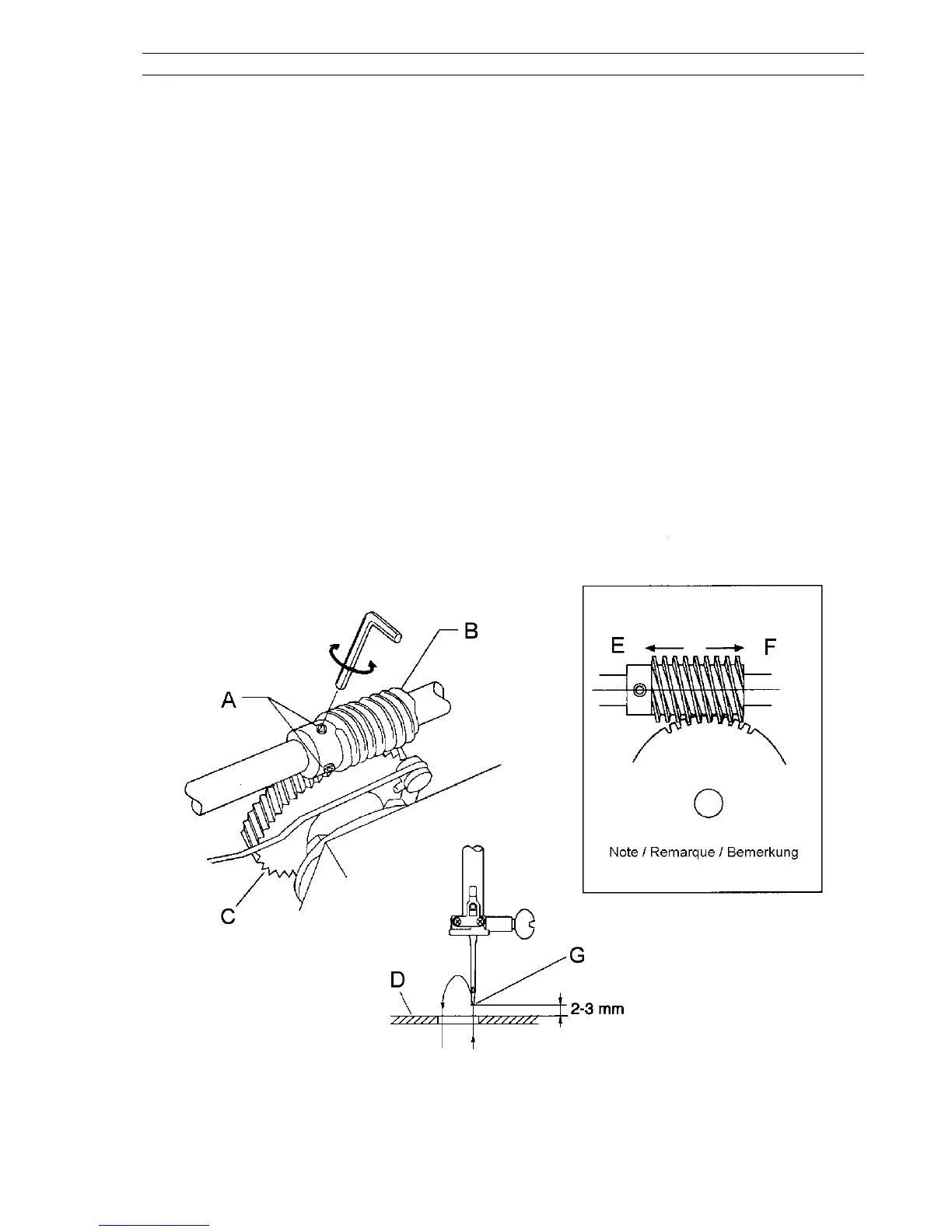

3. Loosen 2 screws A in the upper shaft worm B.
4. Adjust the needle swing by turning the handwheel by hand while holding the worm B so as not to
rotate it, until the needle starts to swing 2-3 mm above the needle plate when coming out from
the right side G of the hole in the needle plate D.
5. Tighten 2 screws A firmly.
6. Attach the top cover and face cover.
Note:
The upper shaft shall turn smoothly without an excess backlash in the worm gear. If necessary
adjust the backlash by pushing the worms B in direction E or F.
