Elna International Corps. SA 3210 / 3230 Service manual
Remplacement of B-Board and fuse (3230 only)
1. Remove the rear cover (see page 7).
2. Remove the circuit box lid (see page 27).

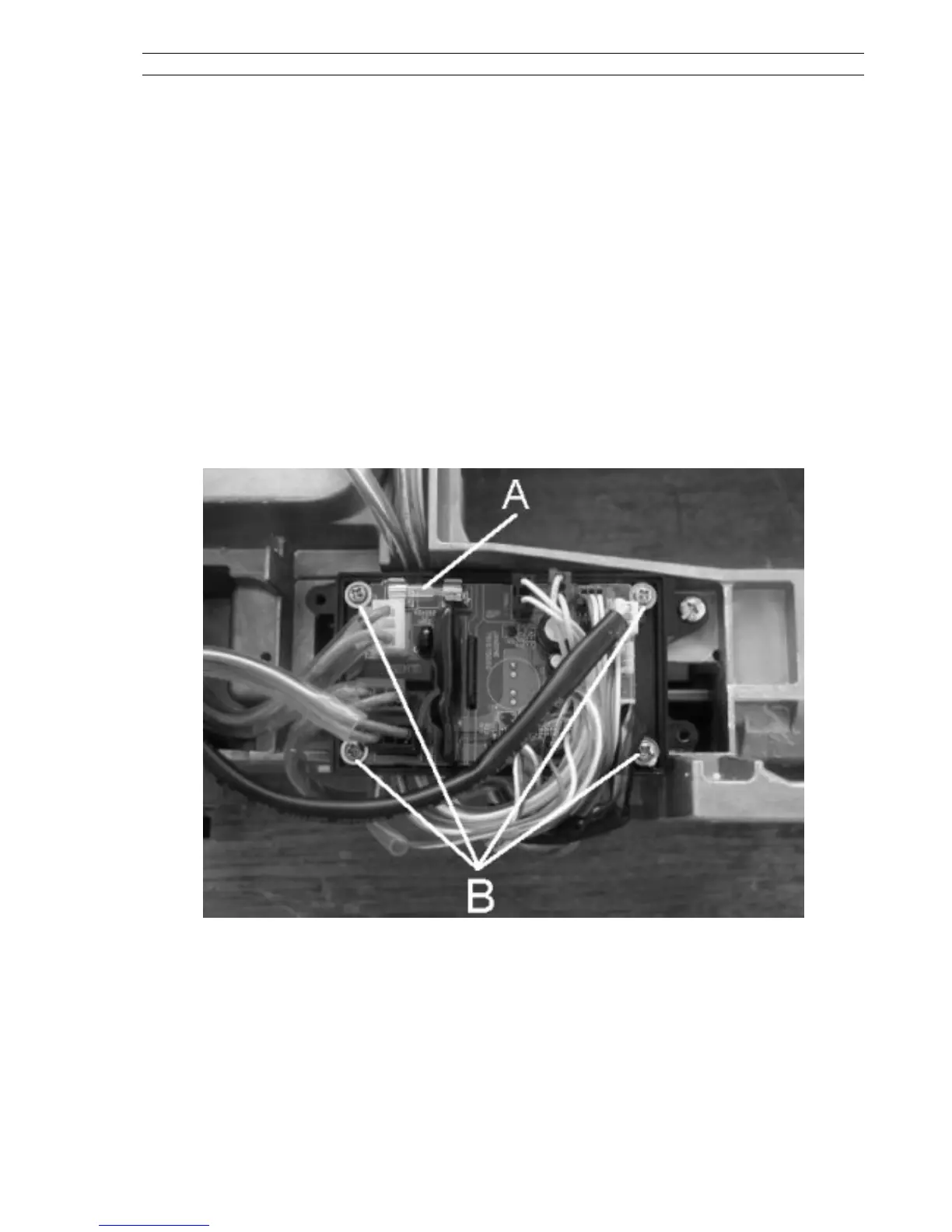

3. Disconnect all connectors and unscrew the four screws B.
4. Replace the circuit board and fix it.
5. Insert all connectors (see page 27)
6. Attach the circuit board lid and the rear cover.
To replace the fuse:
1. Pry out the fuse A with a screwdriver.
2. Replace the fuse and push it down into the fuse clip.
Page 28
