Elna International Corps. SA 3210 / 3230 Service manual

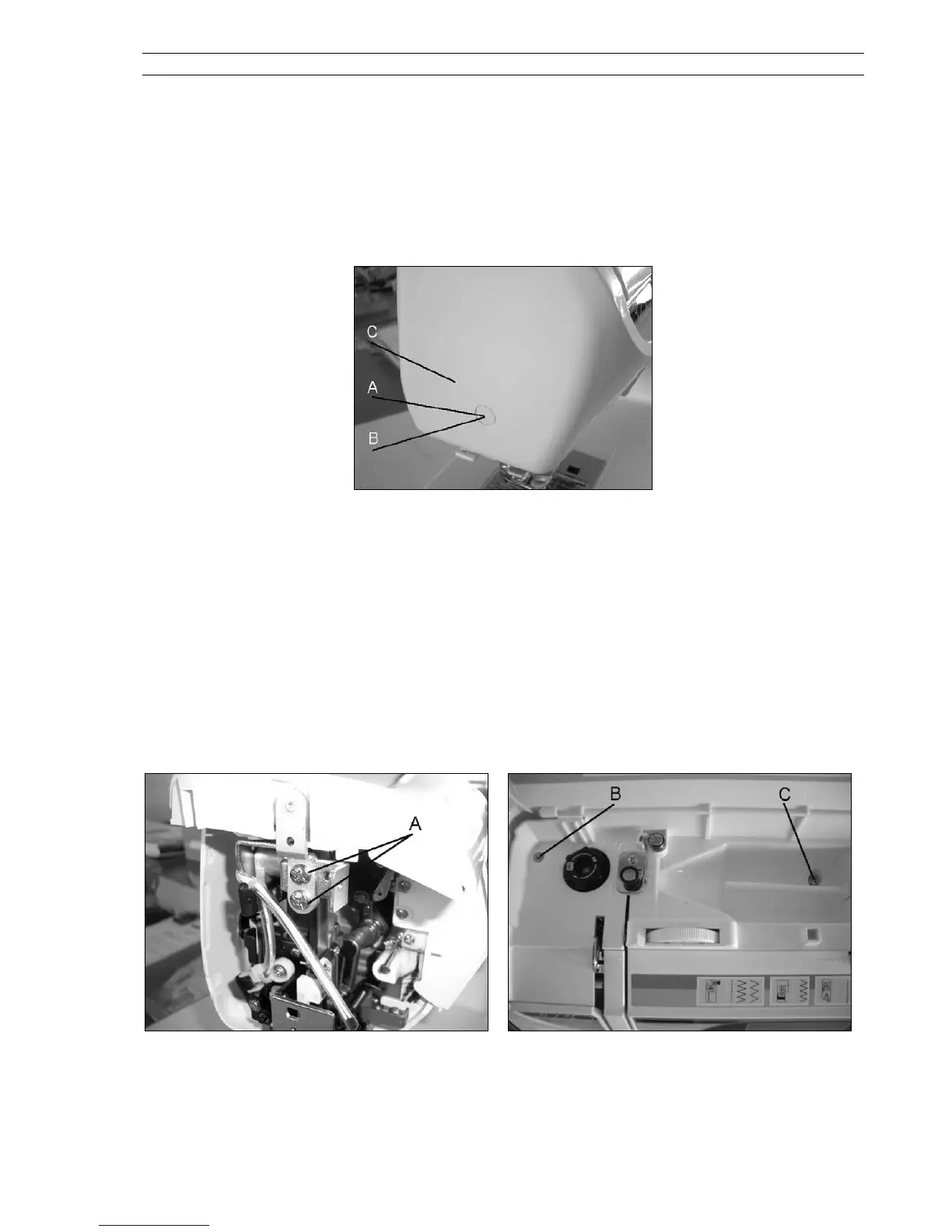

FACE COVER
To remove:
1. Remove the cap A and the screw B.
2. Remove the face cover C.
To attach:
1. Follow the above procedure in reverse.
TOP COVER
To remove:
1. Remove the face cover (see here above).
2. Remove the two screws A
3. Remove the screws B and C
4. Remove the handle with the top cover.
To attach:
5. Follow the above procedure in reverse.
Page 04
