Elna International Corps. SA 3210 / 3230 Service manual

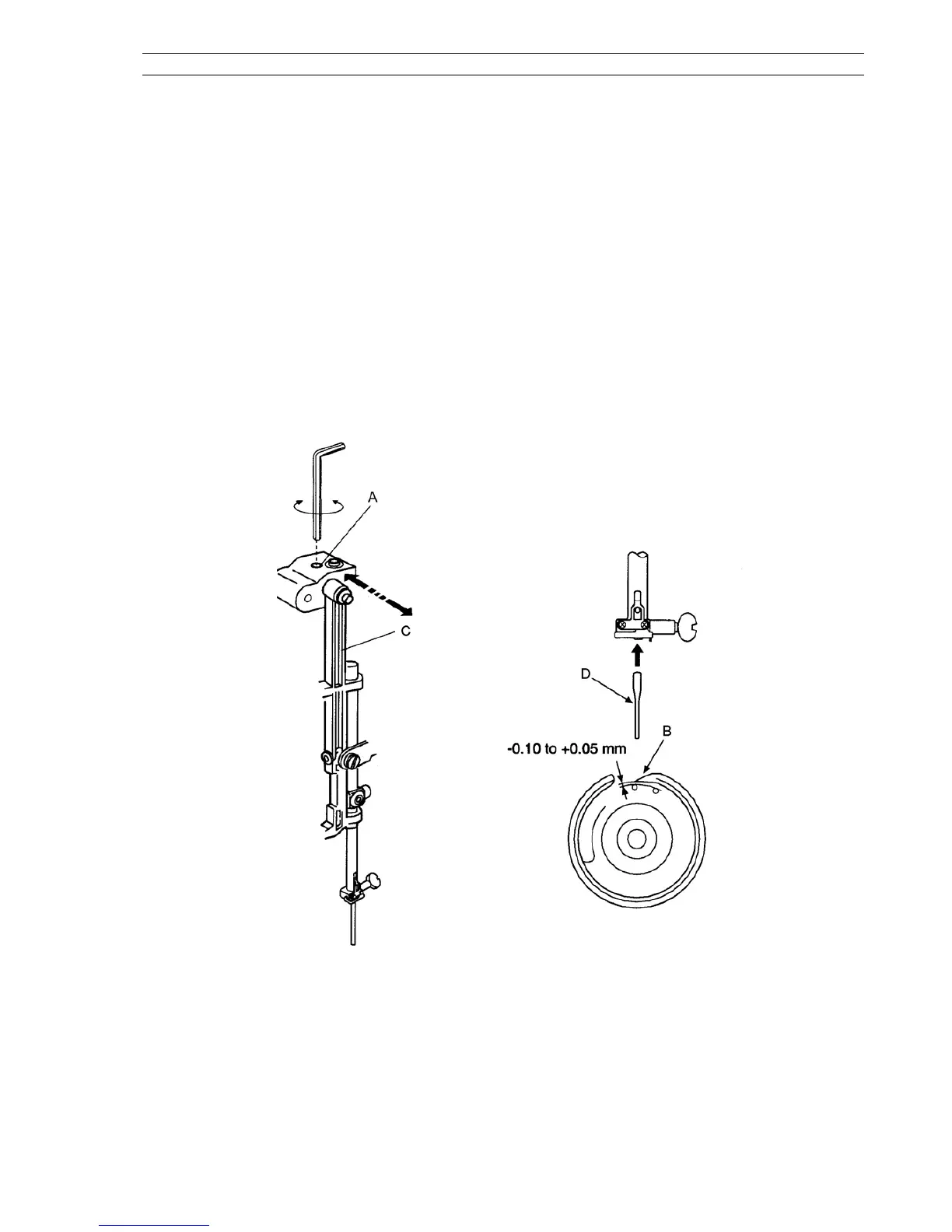

Clearance between Needle and Hook
The clearance between the needle and hook should be -0.10 to +0.05 mm.
Adjustment procedure:
1. Select the zigzag stitch and set the stitch width control at "6.5".
2. Remove the needle plate and bobbin holder.
3. Replace the needle with the gauge D 100240-10 and tighten the needle clamp screw.
4. Remove the face cover (See page 4.).
5. Turn the handwheel to bring the hook point B just behind the gauge 100240.
6. Loosen the setscrew A and adjust the clearance between the needle and hook point to -0.10 to
0.05 mm by moving the top end of the needle supporter C back or forth.
7. Tighten the setscrew A.
8. Attach the face cover.
9. Attach the bobbin holder and needle plate. Replace the master needle with the sewing needle.
Page 18
