Elna International Corps. SA 3210 / 3230 Service manual

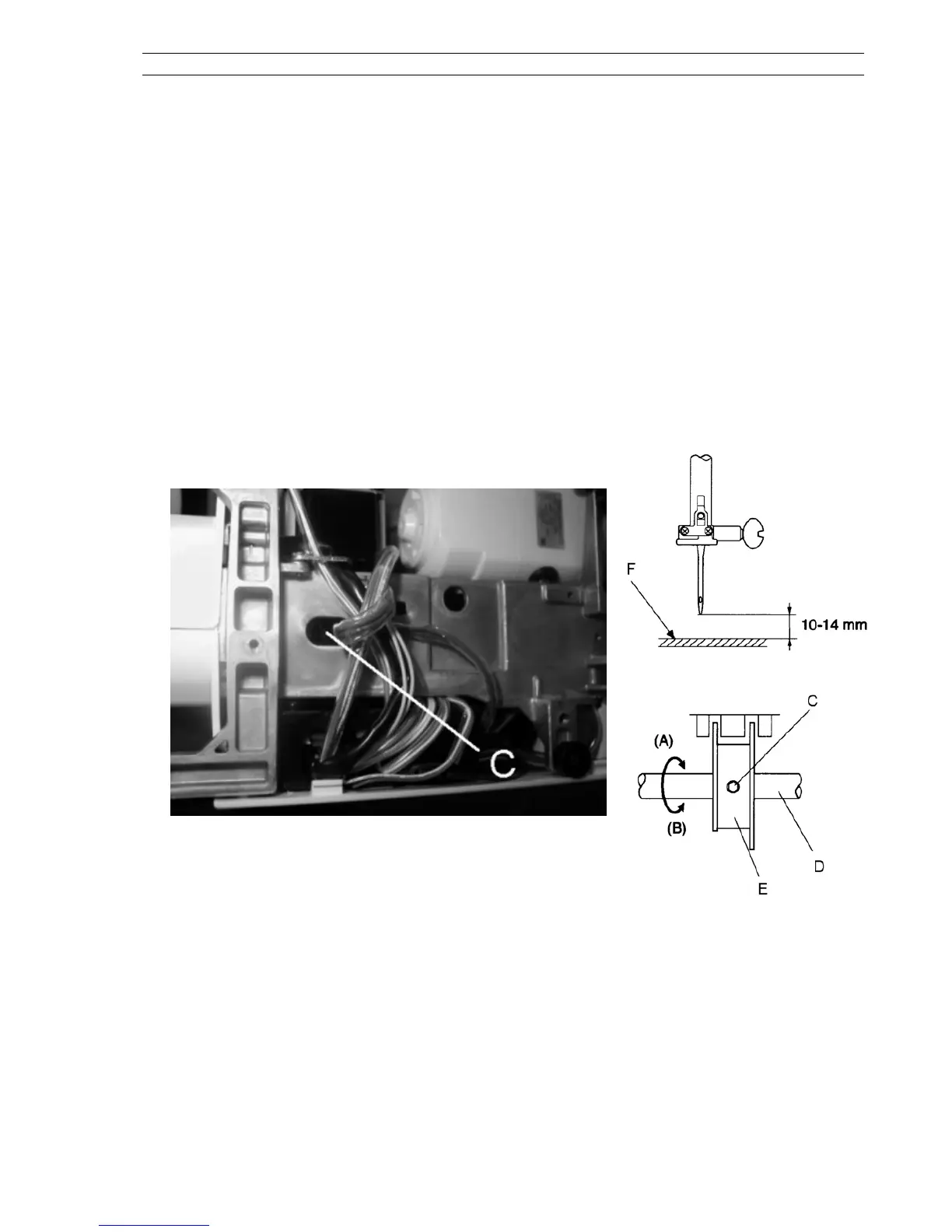

Needle Bar Stop Position (Model 3230 only)
The height of the needle point should be 10-14 mm above the needle plate when the machine stops.
If not, correct it as follows:
Adjustment procedure:
1. Remove the base (See page 5.)
2. Turn the power switch ON and press the needle up/down button twice to bring the needle bar to
the highest position.
3. If the needle point is higher than 14 mm: Loosen the setscrew C and turn the lower shaft
shielding plate E in the direction of A.
4. If the needle point is lower than 10 mm: Loosen the setscrew C and turn the lower shaft shielding
plate E in the direction of B.
5. Tighten the setscrew C.
6. Press the needle up/down button twice and check the needle stop position.
7. Attach the base.
Page 21
