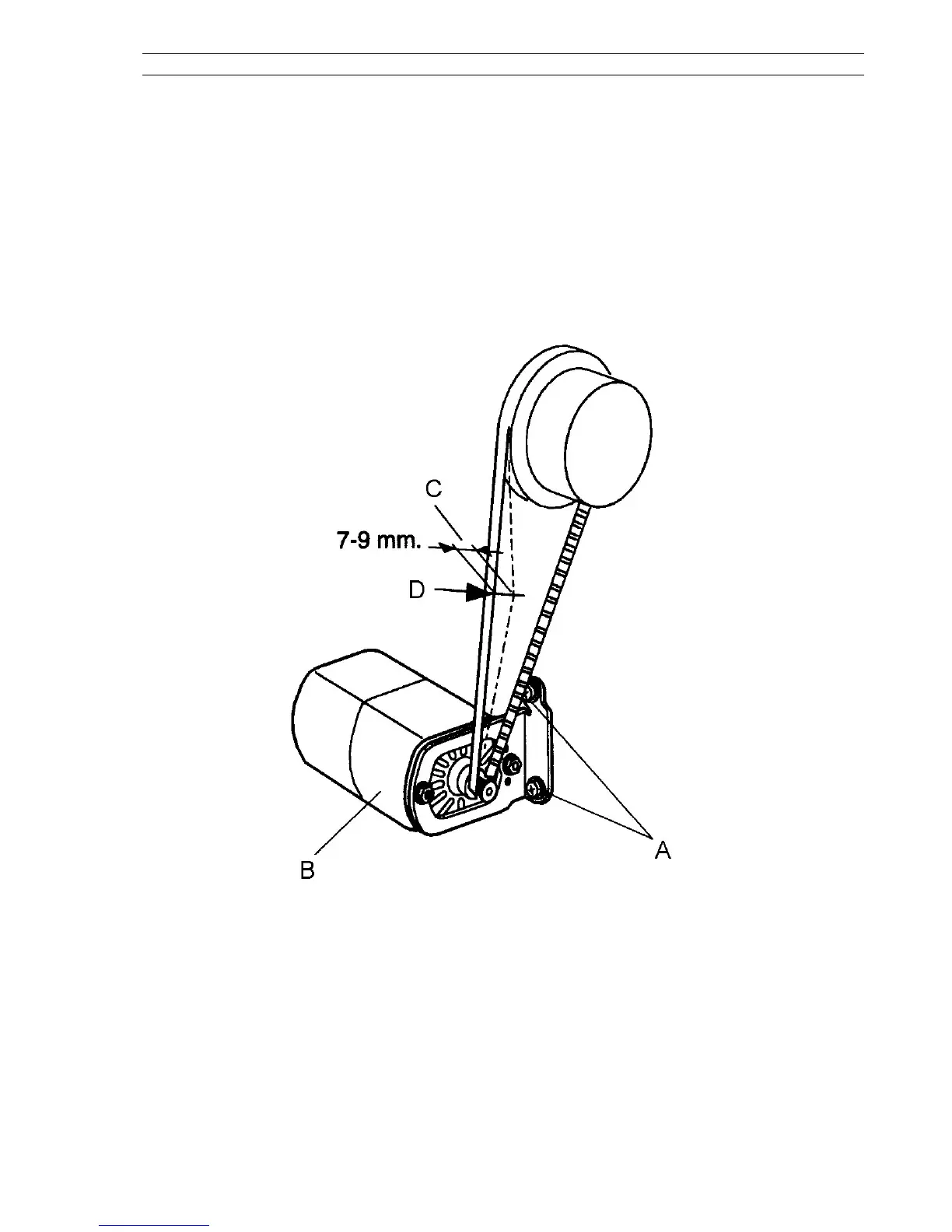

Motor Belt Tension
1. Remove the front cover (See page 6.).
2. Slightly loosen the 2 setscrews (A).
3. Move the motor to adjust the motor belt tension so that the belt is bent 7-9 mm when pressing
the middle of the belt with approximately 300 grams of pressure.
4. Tighten the setscrews
