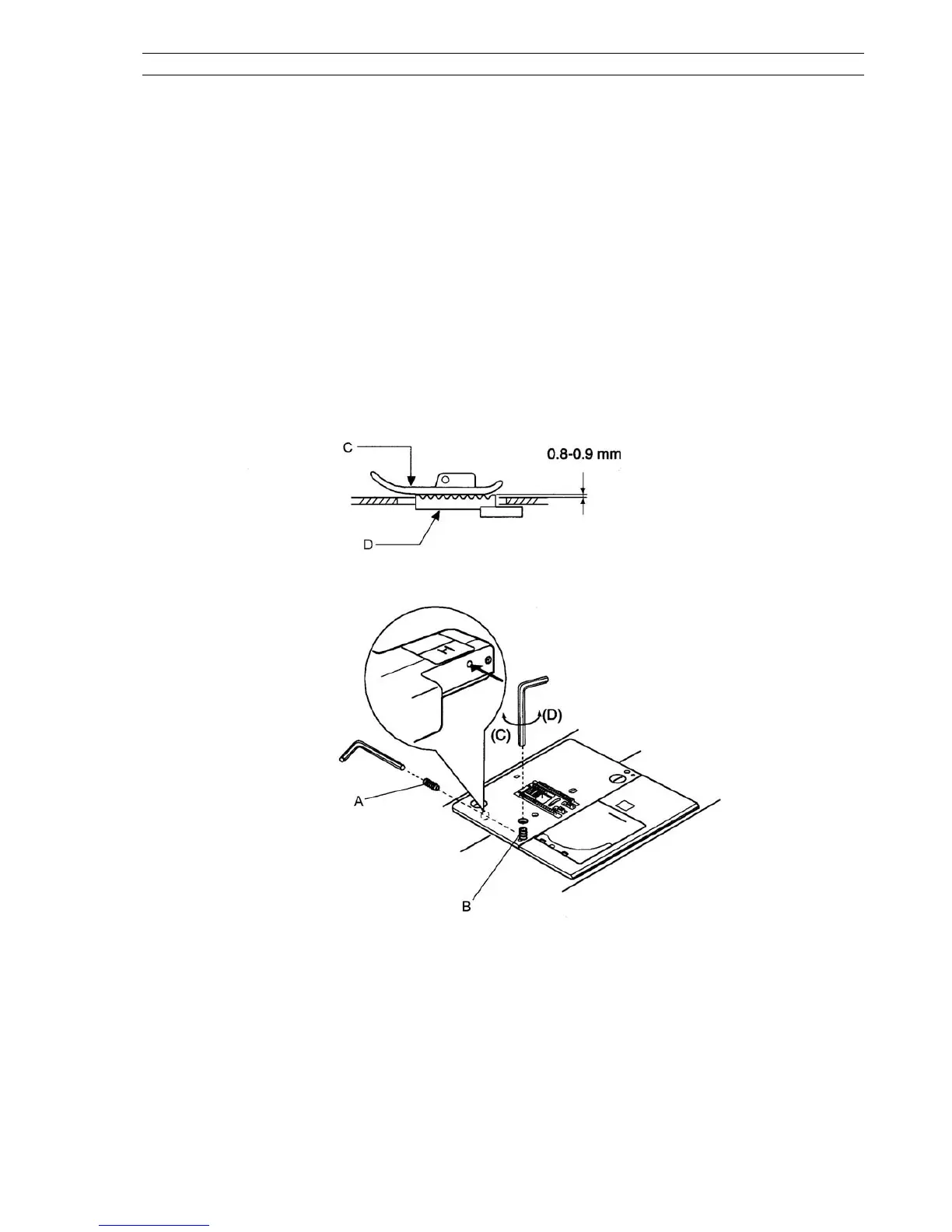

FEED DOG HEIGHT
The height of the deed dog should be 0.8-0.9 mm above the needle plate.
Adjustment procedure:
1. Select the straight stitch and set the stitch width control at "O".
2. Set the foot pressure dial at "3" and lower the foot.
3. Loosen the setscrew A
4. Turn the handwheel to bring the feed dog to its highest position.
5. If the feed dog height is lower than 0.8 mm: Turn the adjusting screw B in the direction of C.
6. If the feed dog height is higher than 0.9 mm: Turn the adjusting screw B in the direction of D.
7. Tighten the setscrew A.
