ELNA 3230 - Belt Cover; To Remove Belt Cover; To Attach Belt Cover; Base

Elna International Corps. SA 3210 / 3230 Service manual
BELT COVER

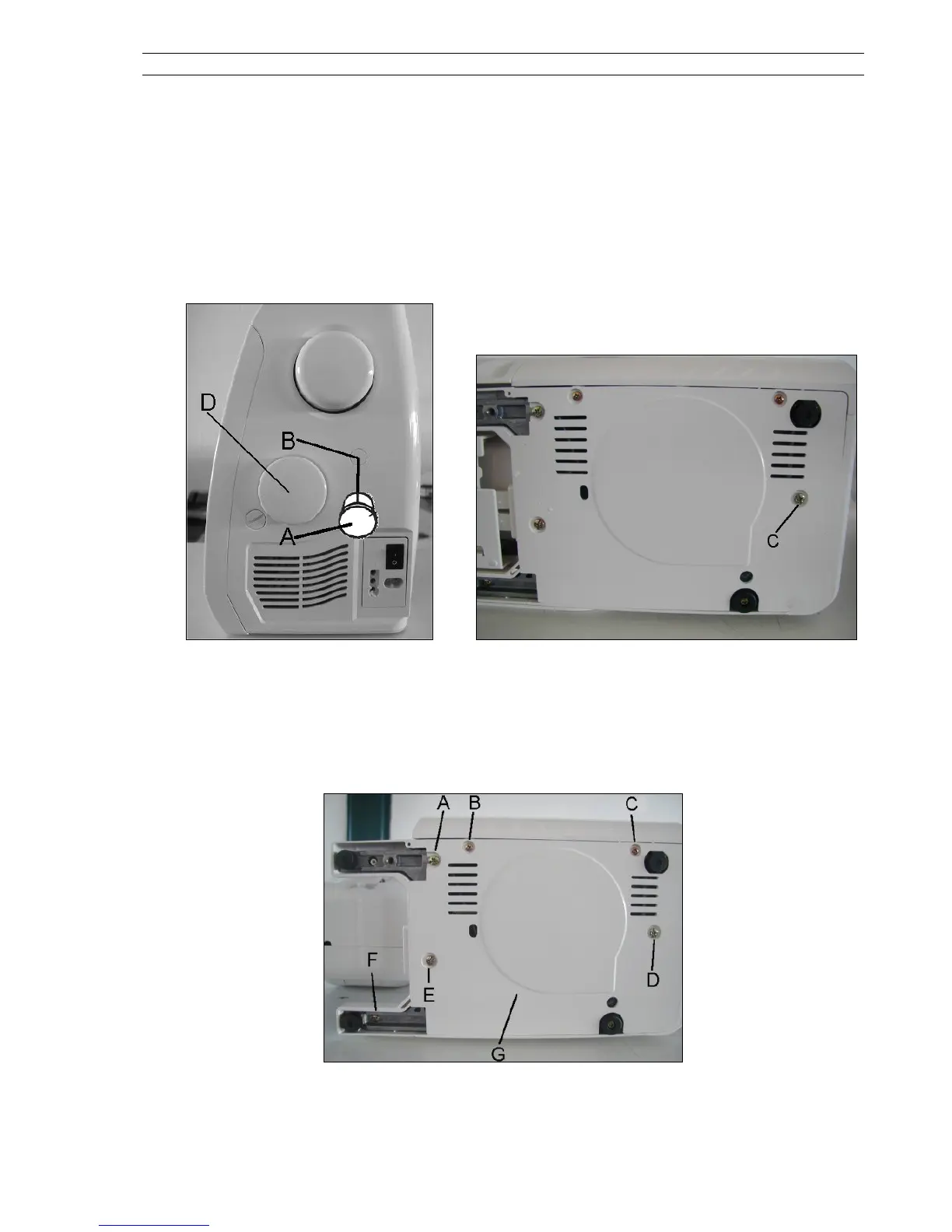

To remove :
1. Remove the face and top cover (see page 4).
2. Remove the cap A.
3. Remove the screw B
4. Pull out the stitch selector D
5. Remove the screw C and remove the belt cover.
To attach: Follow the above procedure in reverse.
BASE
To remove :
1. Remove the screws A to F.
2. Remove the base G.
To attach : Follow the above procedure in reverse.
Page 05
