Elna International Corps. SA 3210 / 3230 Service manual
Zero Feeding
The machine should not feed the fabric when the stitch length control is set at "O".
Adjustment procedure:

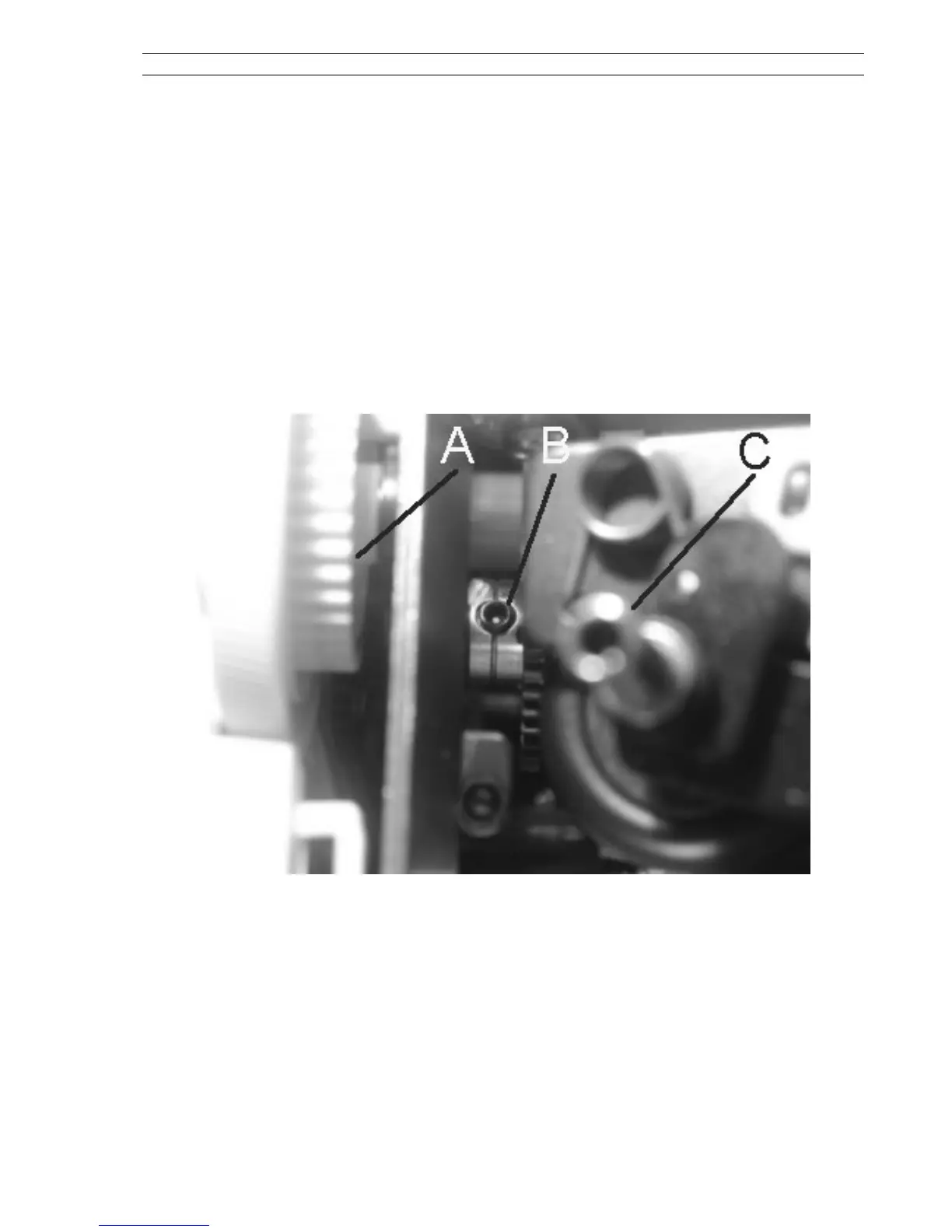

1. Select the straight stitch and set the stitch length control A at "O".
2. Remove the Top cover (See page 4).
3. Place a piece of paper on the machine and lower the presser foot. Rotate the handwheel to
check if the paper is fed or not.
4. Loosen the setscrew B on the feed adjusting gear near to bobbin winder C.
5. Turn the feed adjusting gear with the screw B to adjust the Zero feeding.
6. Tighten the setscrew B.
7. Attach the Top cover.
Page 20
