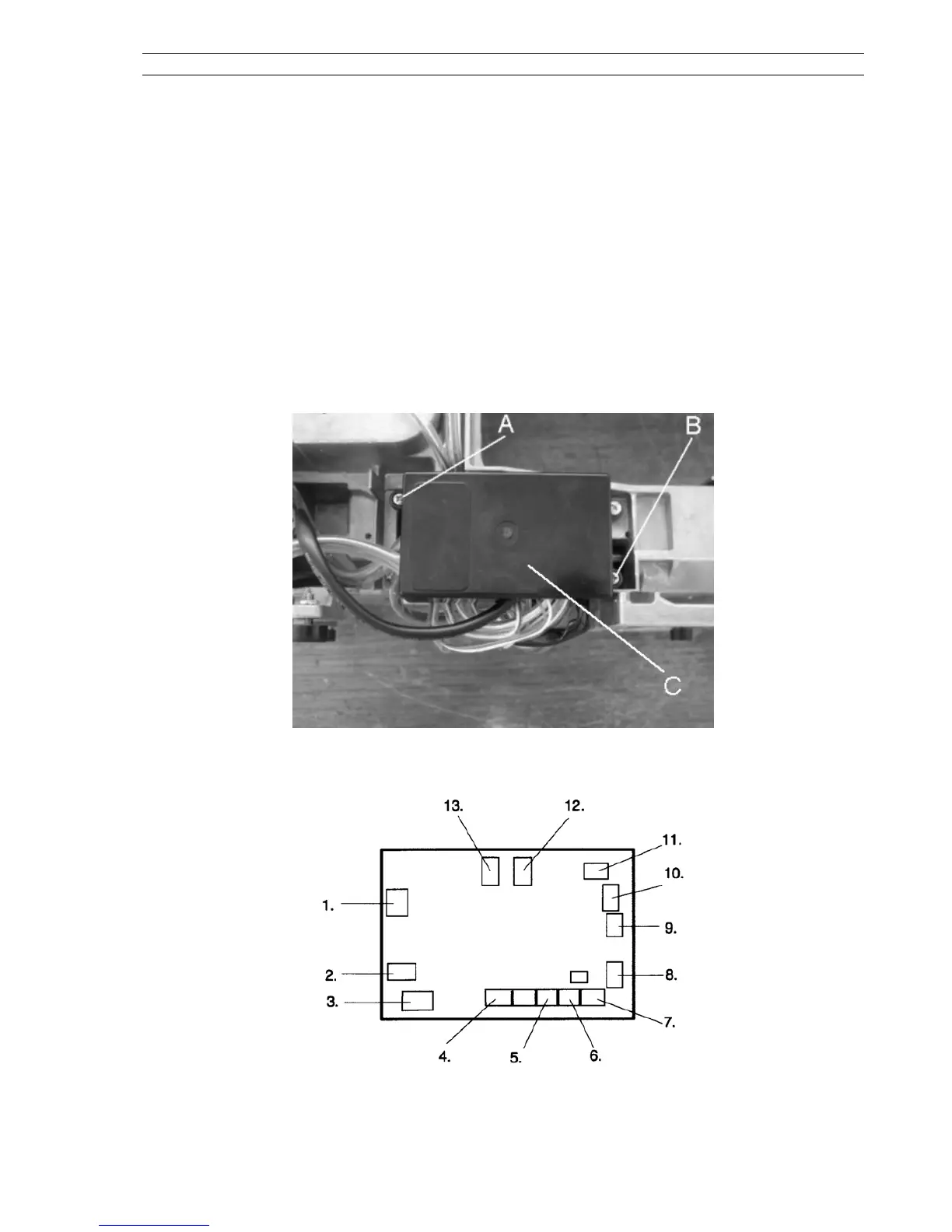

B-Board and Connector Location (Model 3230)
To access:
1. Remove the Rear cover (see page 7).
2. Remove the two screws A and B.
3. Remove the circuit box lid C.
1. Machine socket connector (primary) 2. Transformer connector (primary)
3. Motor connector 4. Needle position sensor connector
5. Bobbin winding switch connector 6. BH limited switch connector
7. BH selecting switch connector 8. Photo sensor connector
9. Slide volume connector 10. Machine socket connector
11. LCD connector 12. Transformer connector (secondary)
13. Lamp connector
Page 27
