Needle Drop Position
The needle should drop in the center of the hole in the needle plate when the straight stitch is
selected and the stitch width control is set at "O".
The clearance between the needle and each side of the needle hole should be 0.2 mm or more
when the needle swings maximum zigzag width.
Adjustment procedure:
1. Remove the face cover (See page 4).
2. Check the needle drop position of the straight stitch with the stitch width "O" and the zigzag stitch
with the stitch width ''6.5".

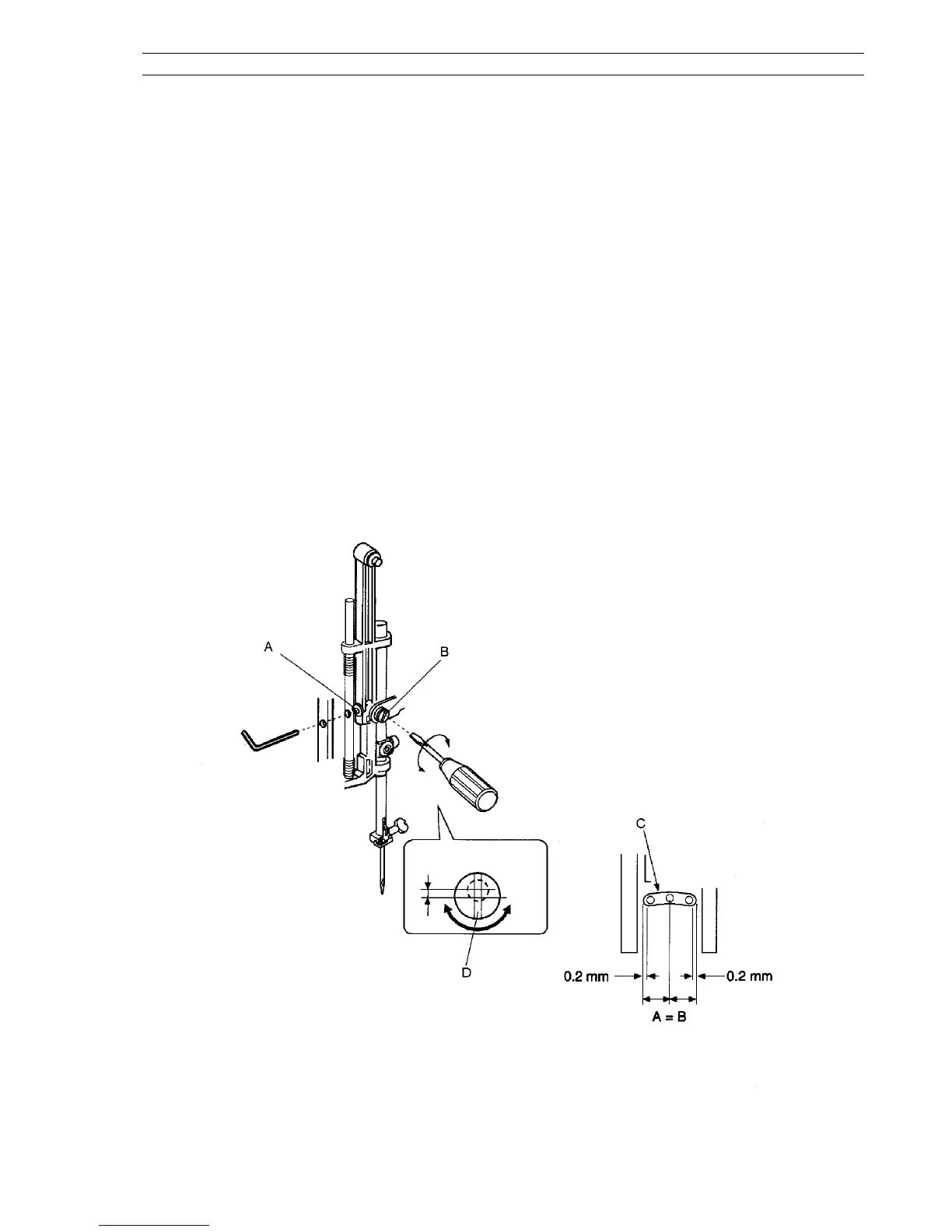

3. Loosen the set screw A and adjust the needle drop position by turning the eccentric pin B.
Note:
The eccentric pin should be positioned with its off-centered head facing downward.
Tighten the set screw A after adjustment is finished.
Attach the face cover.
