Operation and Maintenance
UFM Series 6
Q.Sonic-plus
A description of each diagnostic follows:
a) VoG Raw and VoS Raw
These subsections display the raw Velocity of Gas and Velocity of Sound
results.
b) Profile Diagnostics
Profile Diagnostics displays an array of useful calculations including:
Profile Factor Axial/Swirl, Swirl Angle, Axial Asymmetry, Horizontal
Asymmetry, Reynolds PathType A and Reynolds PathType B. Please see
Figure 7-14 below.
c) Performance
The performance screen displays the performance of each individual path,
as seen in Figure 7-15. For further explanation, please see Chapter 8.2.2
Performance (p.51).

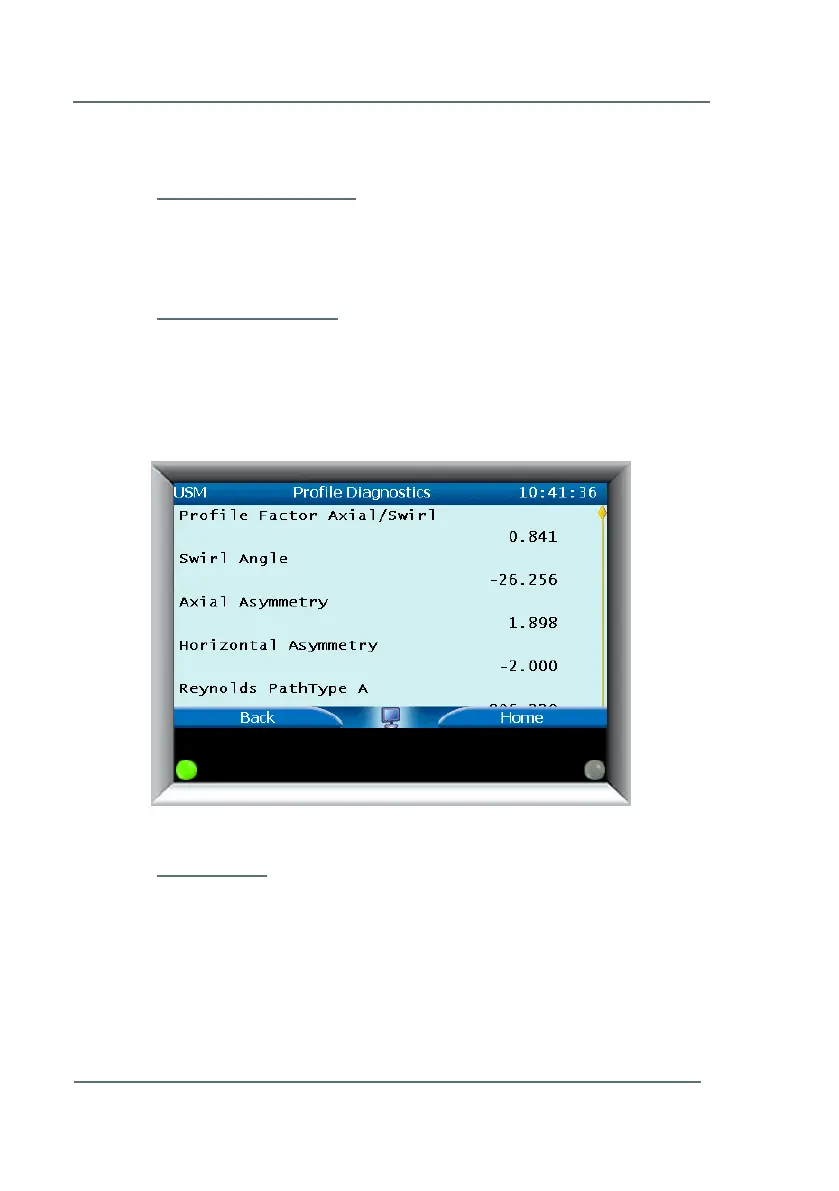

Figure 7-14: Profile Diagnostics
