ELTEX MES53xx User Manual

MES53xx, MES33xx, MES23xx Ethernet Switch Series 22
5
F
Functional key that reboots the device and resets it to factory default
configuration:
- pressing the key for less than 10 seconds reboots the device.
- pressing the key for more than 10 seconds resets the device to factory
default configuration.
6
[1-24]
MES2324B
24 10/100/1000 Base-T (RJ-45) ports.
MES2324FB
Slots for 1GSFP transceivers.
[11-12, 23-
24]
MES2324FB
4 x 10/100/1000 Base-T (RJ-45) ports.
[1-48]
MES2348B
48 x 10/100/1000Base-T (RJ-45).
7
Link/Speed
Optical interface status LED.
8
XG1, XG2
XG3, XG4
Slots for 10GSFP+/ 1GSFP transceivers.

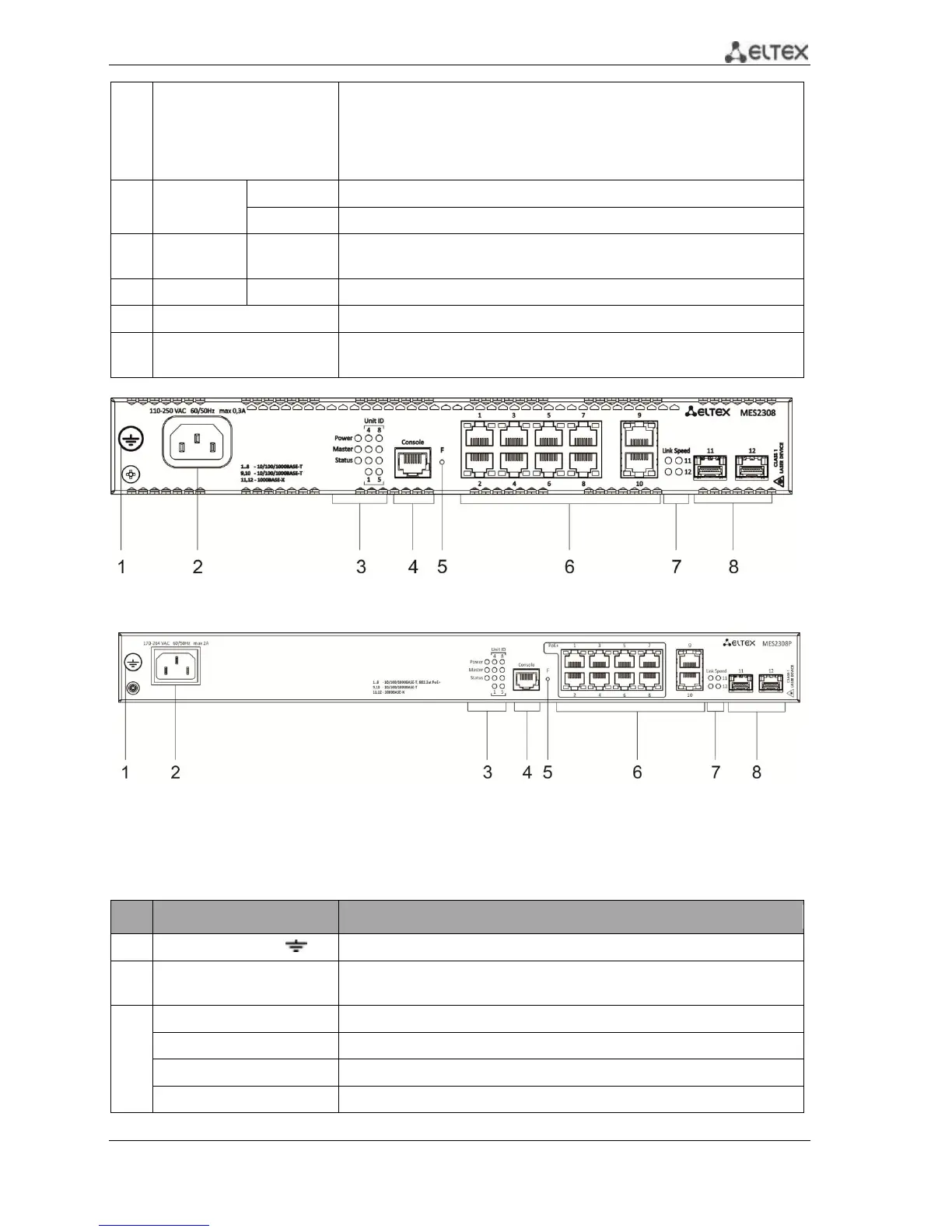

Figure 7. MES2308, front panel
Figure 8. MES2308P, front panel
Table 2.14 lists connectors, LEDs and controls located on the front panel of the MES2308,
MES2308P.
Table 2.14 – Description of MES2308, 2308P connectors, LEDs and front panel controls

Front panel element
Description
1
Earth bonding point
Earth bonding point of the device.
2
~110-250VAC, 60/50Hz max
2A
Connector for AC power supply
3
UnitID
Indicator of the stack unit number.
Power
Device power LED.
Master
Device operation mode LED (master/slave).
Status
Device status LED
