MES53xx, MES33xx, MES23xx Ethernet Switch Series 25

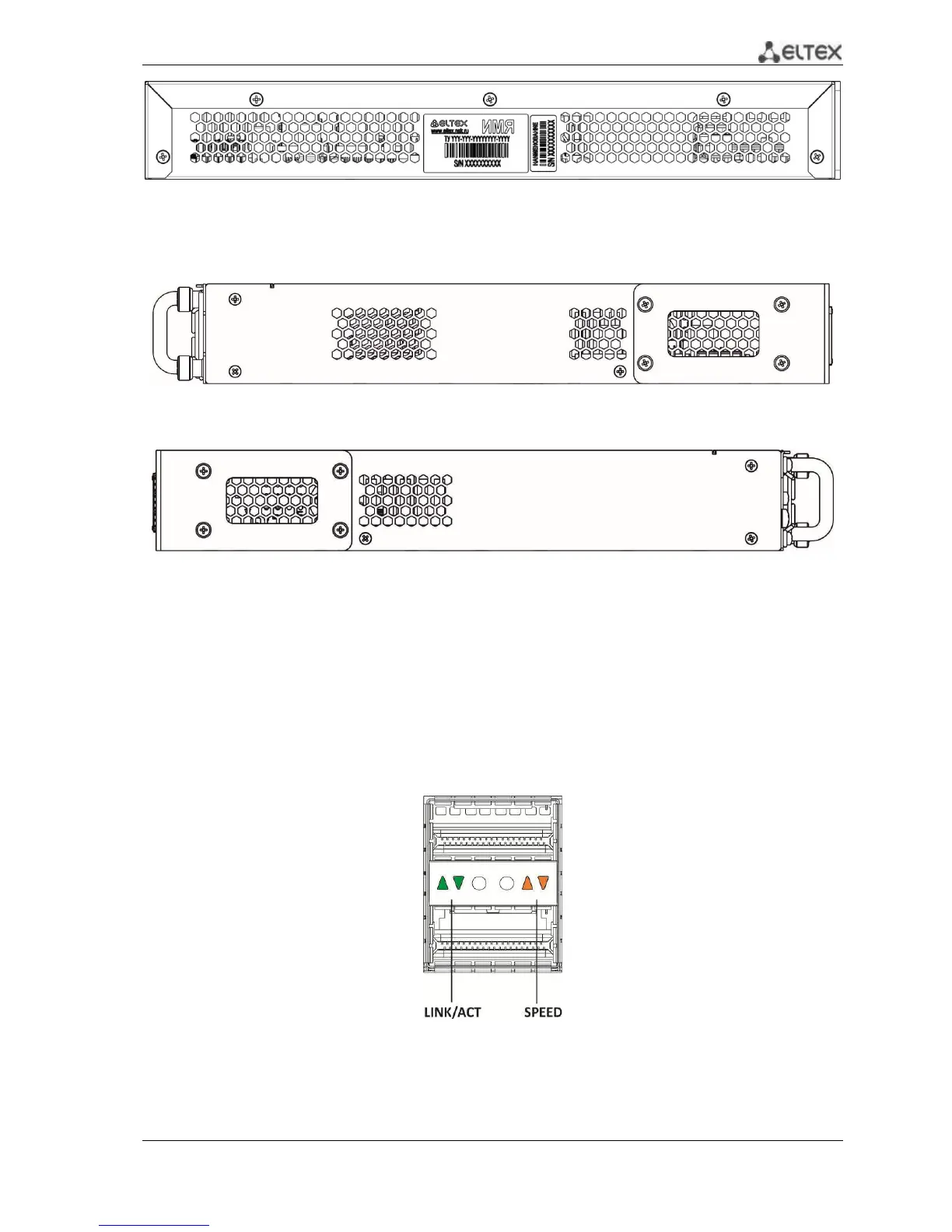

Figure 14. MES2308, MES2308P, rear panel
2.5.1 Side panels of the device
Figure 15. Right side panel of Ethernet switches
Figure 16. Left side panel of Ethernet switches
Side panels of the device have air vents for heat removal. Do not block air vents. This may cause the
components to overheat, which may result in device malfunction. For recommendations on device
installation, see section 'Installation and connection'.
2.5.2 Light Indication
Ethernet interface status is represented by two LEDs: green LINK/ACT and red SPEED. Location of
LEDs is shown in Figure 15-17.
Figure 17. QSFP transceiver socket appearance
