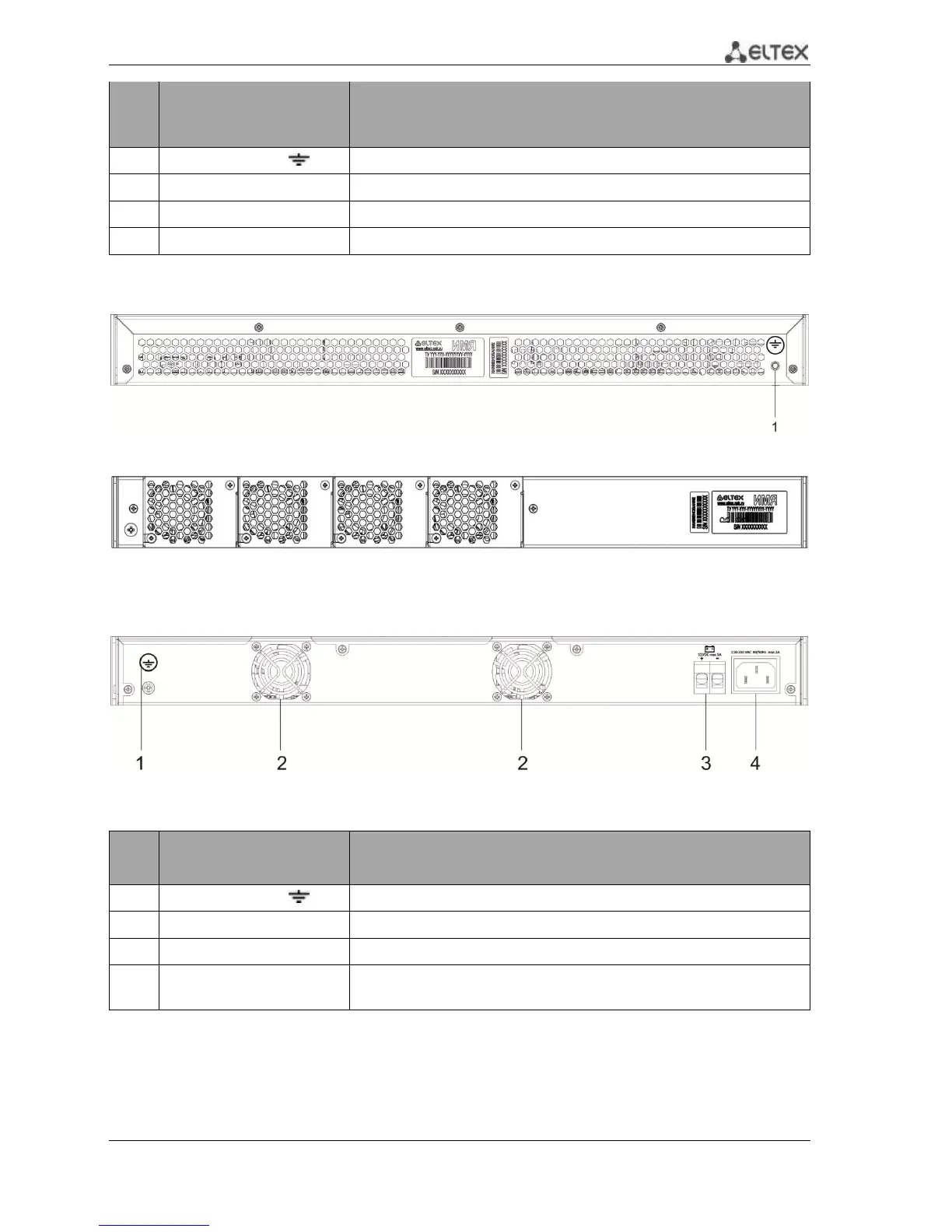

MES53xx, MES33xx, MES23xx Ethernet Switch Series 24
No
Rear panel element
Description
1
Earth bonding point
Earth bonding point of the device.
2
Removable fans
Hot-swappable removable ventilation modules.
3
Connector for DC power supply
4
Connector for AC power supply
The rear panel layout of MES23xx series switches is depicted in Figure 
-Ошибка! Источник ссылки не найден..
Figure 11. MES2324, MES2324B, rear panel
Figure 12. MES2324FB, rear panel
Figure 13. MES2348B, rear panel
Table 2.17 Description of the rear panel connectors of the MES2324, MES2348B switches
Rear panel element
Description
1
Earth bonding point
Earth bonding point of the device.
2
Fans
3
12VDC max 5A
Terminals for battery 12V
4
~110-250VAC, 60/50Hz max
2A
Connector for AC power supply
