ELTEX MES53xx User Manual

MES53xx, MES33xx, MES23xx Ethernet Switch Series 23
4
Console
Console port for local management of the device.
5
F
Functional key that reboots the device and resets it to factory default
configuration:
- pressing the key for less than 10 seconds reboots the device.
- pressing the key for more than 10 seconds resets the device to factory
default configuration.
6
[1-10]
10x 10/100/1000 Base-T (RJ-45) ports.
7
Link/Speed
Optical interface status LED.
8
11,12
Slots for 1GSFP tranceivers.

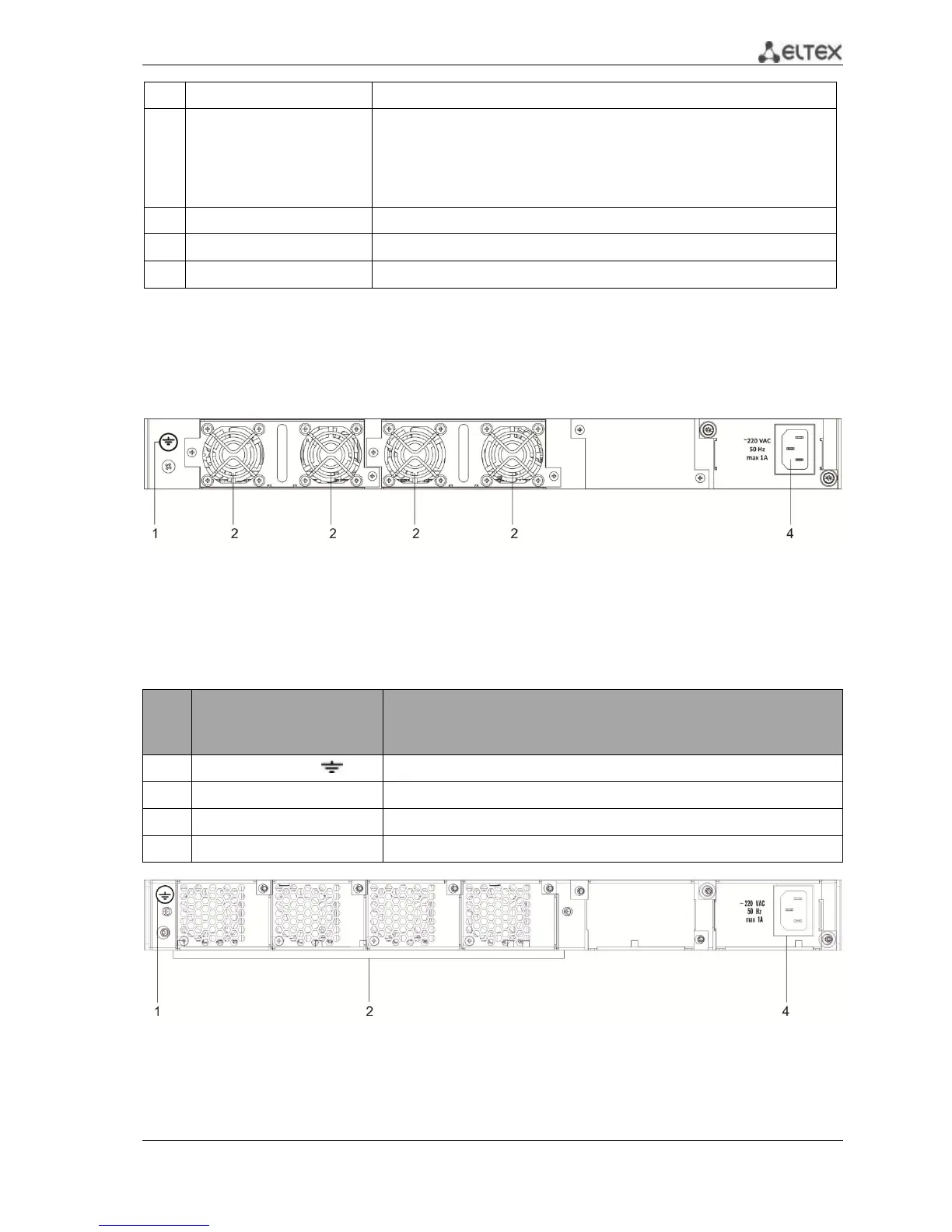

2.5 Rear panel of the device
The rear panel layout of MES5324 series switches is depicted in Figure 9.
Figure 9. MES5324, rear panel
Table 2.15 lists rear panel connectors of the switch.
Table 2.15. Description of the rear panel connectors of the switch
No
Rear panel element
Description
1
Earth bonding point
Earth bonding point of the device.
2
Removable fans
Hot-swappable removable ventilation modules.
3
Connector for DC power supply
4
~220 VAC 50 Hz max 1A
Connector for AC power supply
Figure 10. MES3324F, rear panel
Table 2.16. Description of the rear panel connectors of the switch
