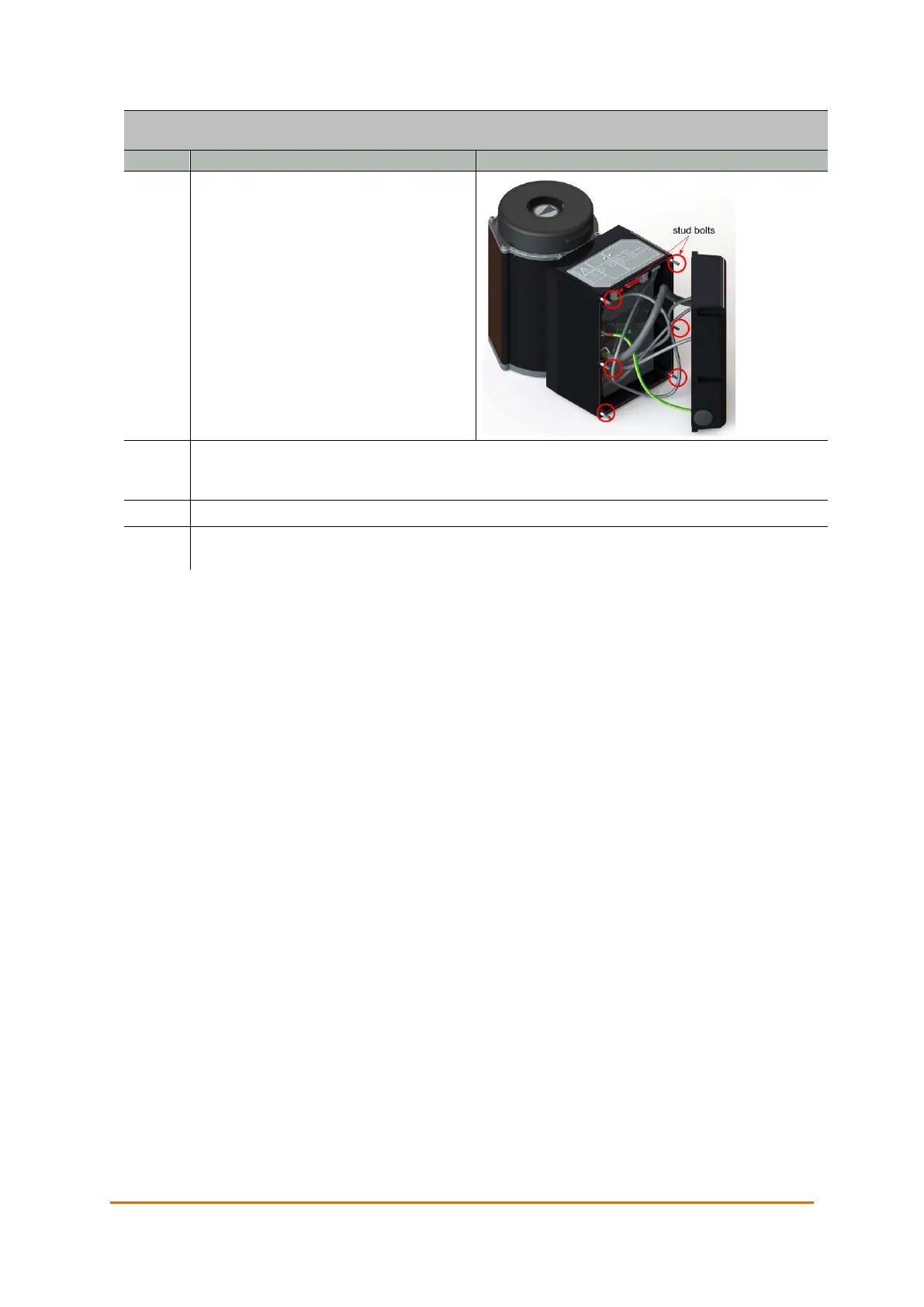

Failsafe Option
Page 80 of 92
User Manual QT250 and QT800 gen 2.5, ID 2021 2.3 20. April 2021
Procedure
Step
Description
Illustration
6
Disconnect the rest of the cable
connectors marked by yellow circles in
the illustration.
7
Place the interface in a secure location to avoid any damage to it.
8
Remove the four M3 hex socket head
screws holding the battery bracket by
turning them counterclockwise. The
screws are circled red in the illustration.
Place the screws and connector in a
secure location.
Required equipment:
2,5mm Hexagon Key.
9
Remove the battery by sliding it out of
the frame.
Replace the battery and slide the new
battery into the frame.
10
Fasten the battery holding bracket with
the four M3 hex socket head screws by
turning them clockwise. Tighten the
screws to 1,2Nm and lubricate the
threads using Molykote 1000 or similar
lubricant containing MoS2. Make sure
that the grounding connectors are
placed as shown in the illustration
before tightening the screws. The
screws are circled red in the illustration.
Required equipment:
2,5mm Hexagon Key.
