Flow Measurement System Version 1.00 page 2 of 75

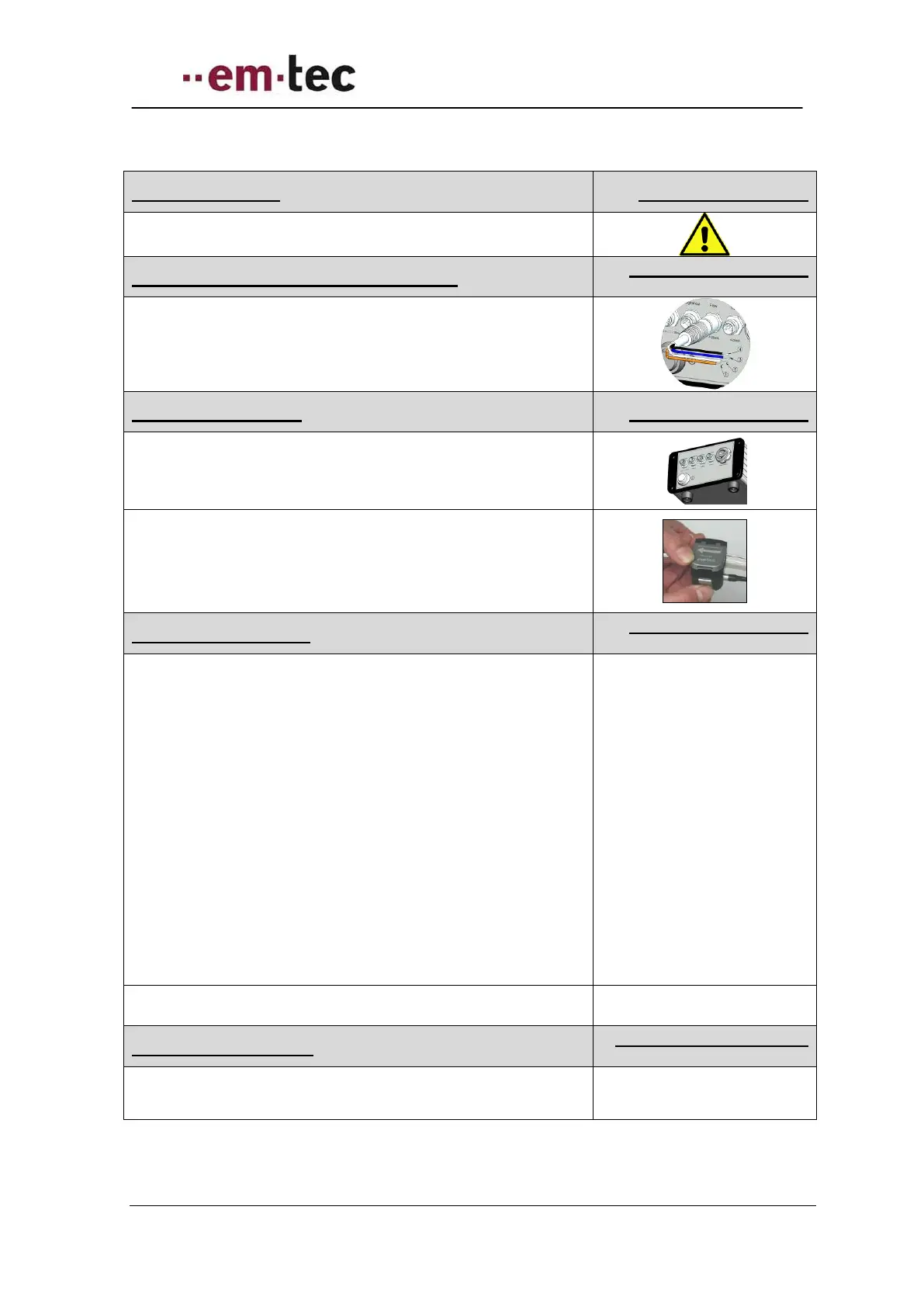

Brief Operating Instructions - Quick Guide BioProTT™ Flow Measurement System
Safety instructions
Chapter 2 - Page 6 ff.
Familiarize yourself with the safety instructions!
Setting up and connecting the flow meter
Chapter 6 - Page 15 ff.
Connect the BioProTT™ flow meter to power supply, e.g.
with supplied 24V DC power supply and connect analog or
digital interfaces as needed.
Installing flow sensor
Chapter 7 - Page 29 ff.
Connect Clamp-On Transducer to BioProTT™ flow meter
by plugging it into the correct socket.
Please ensure that transducer is proper size for the tubing.
Insert tubing into BioProTT™ Clamp-On Transducer and
close lid. The flow direction is indicated with an arrow.
Prepare Measurement
Chapter 7 - Page 29 ff.
Power the BioProTT™ flow meter on and wait approx. 15s
for initialization.
Usually a sensor will show a flow value even with no flow
present. Zero this (flow value) offset by pressing the
appropriate button or selecting the appropriate menu option.
Note: ensure that
 correct calibration table is selected (for sensors with
more than one table programmed)
 tubing is filled with medium,
 there is sufficient coupling and
 the liquid in the tubing not moving (no flow) before
adjusting the zero offset (flow value ml/min!)
Perform custom calibration if necessary
Perform Measurement
Chapter 7.7 - Page 32 ff.
The BioProTT™ flow measurement system is now ready
for use.
Please note: If troubleshooting is necessary please see chapter TROUBLESHOOTING.
