10.5.
Surge pulse application
Discharge switch:
The discharge switch is a highly reproducible semiconductor switch.
10.6.
Coupling/decoupling network
The coupling network has to couple the interference pulses to the lines of a power supply system (AC or DC).
Capacitive coupling is the specified coupling mode for surge testing.
10.6.1.
Coupling to AC/DC power supply lines

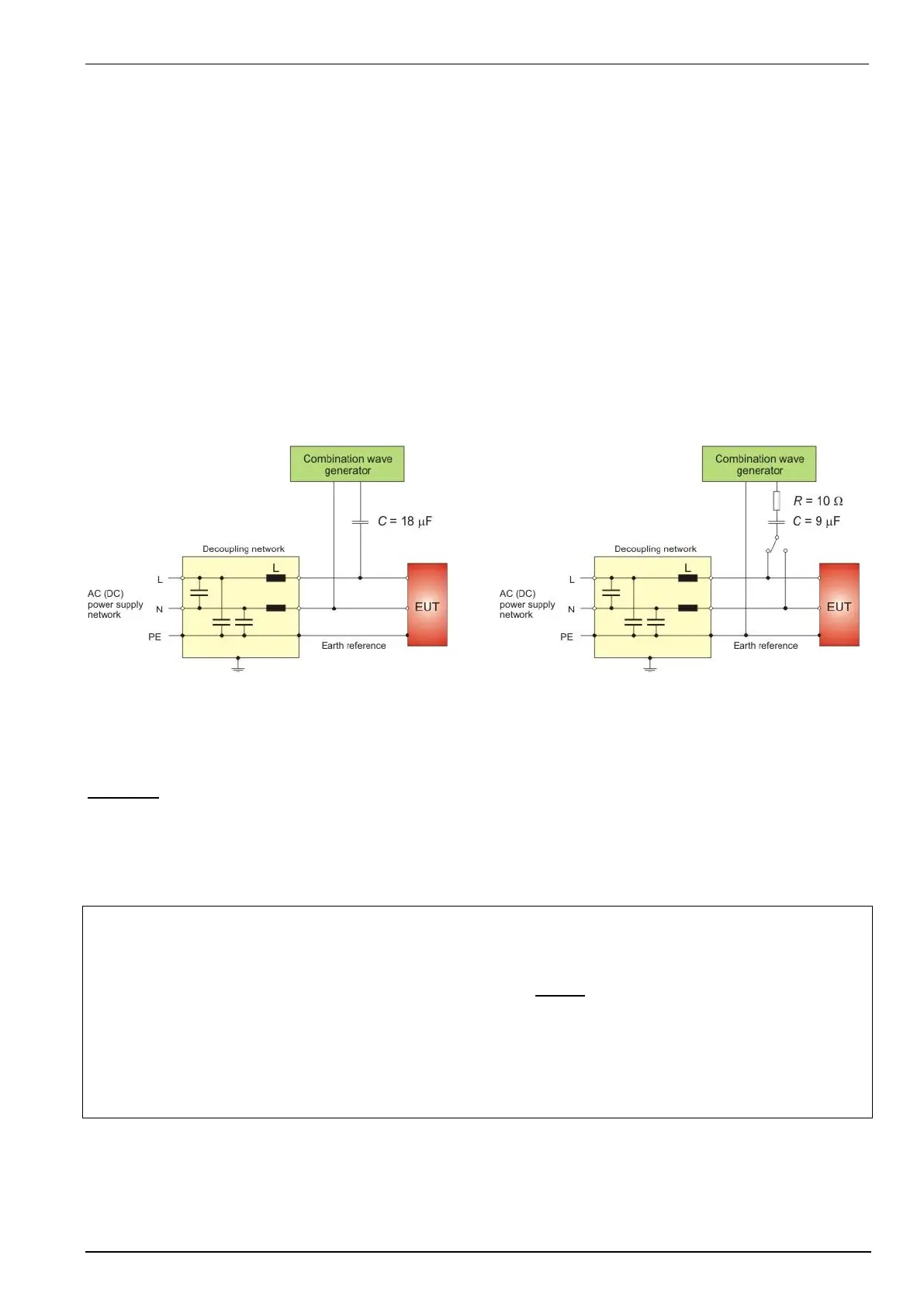

The surge generator compact NX5 has an integrated coupling network in accordance with IEC 61000-4-5. It must
be possible to test with different coupling modes:
Line

GND or (source impedance is 12)
Neutral

GND or (source impedance is 12)
L + N

GND or (source impedance is 12)
Line

Neutral (source impedance is 2)
Coupling Line to Line
Coupling Line to Earth
The release of the surge pulses is mostly related to a certain phase angle.
The surge pulses are synchronized to the input signal at the rear Sync-connector.
Attention: The decoupling part of the coupling/decoupling network includes some capacitors for filtering of 20F
related tp protective Earth (chassis of the generator). This is to be conform to the requirement of IEC 61000-4-5
concerning attenuation of the surge transients in direction to the power mains supply input of the CDN.
As consequence there will exist an increased current to PE (protective earth) which might be hazardous to the
operator in case of a failure or wrong installation. Therefore, it is very important to take the following points into
account before setting the generator into full operation.
1. Due to this increased current into the PE system no earth fault current protectors can be used within a
surge testing area.
2. As consequence the surge generator shall be connected always to Protective Earth, even if no test is
conducted.
 via plugged in power mains supply cable including the PE wire !!!!
 via plugged in EUT power mains supply at the rear side of the generator, including the PE wire !!!!
 via Ground Reference Connector, screwed to the chassis of the generator.
These measures result in double safety in case of a fault
