EM TEST compact NX5 Series User Manual

EM TEST Compact NX5
Operating Manual V 1.06 112 / 143
12.2.2.

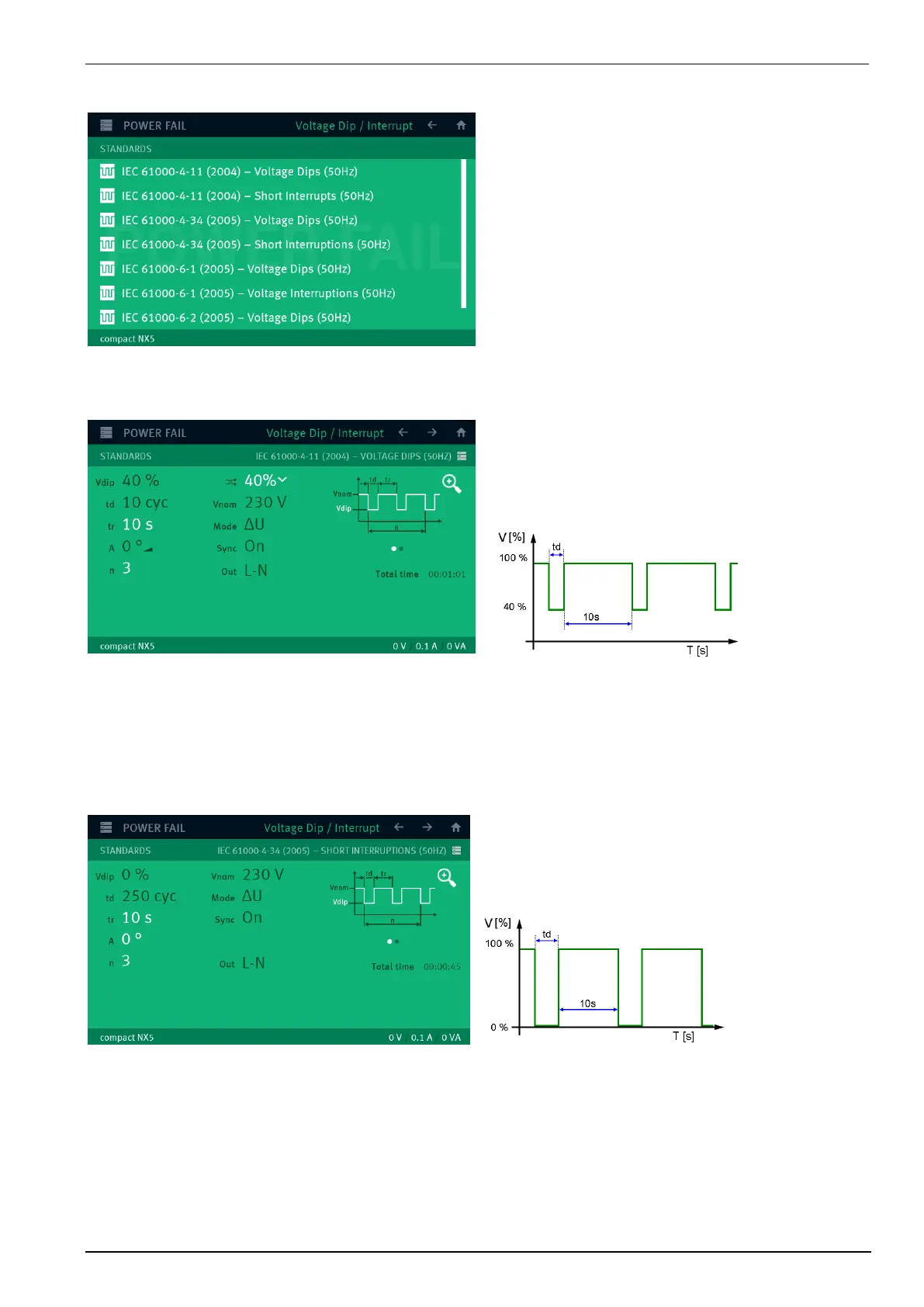

Standard Test Routines
12.2.2.1.
IEC 61000-4-11 (AC power supply mains)
As long as the external transformer variac NX1-260-16 is used, controlled by an analogue 0-10V control voltage,
the test is conducted automatically. If this option is not available the manual test routine shall be used.
Using a tapped transformer V 4780, the user must connect the PF2 UCS input with the correct plug at the V4780.
At 0% selection the PF2 input must be connected to the neutral (0V) plug.
Short interruptions
