14.2.

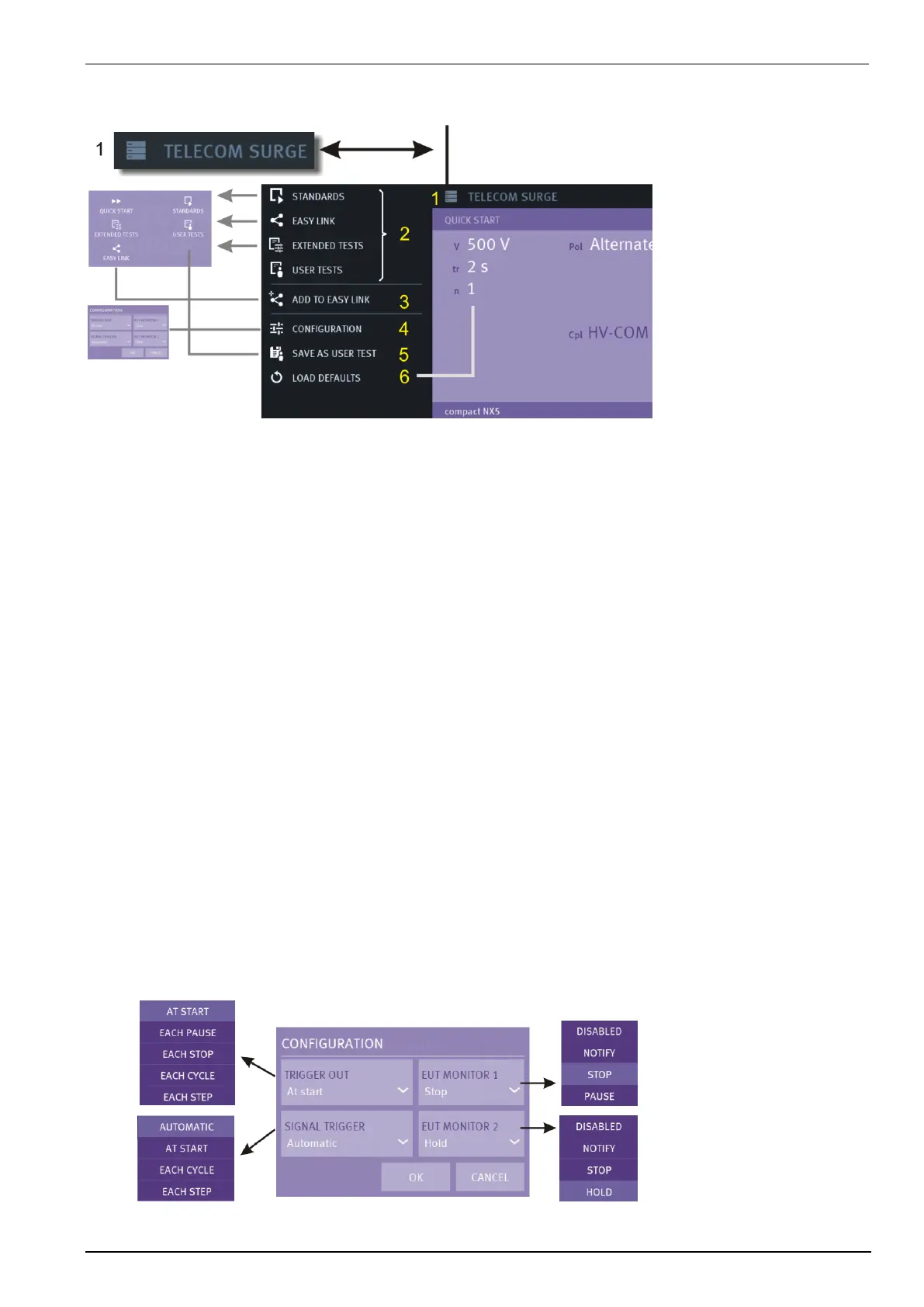

Telecom Surge Menu
Telecom Surge Menu
1
Button for open and close the Telecom Surge Menu
2
Change to other Surge test routines. The last used test in this routine will be loaded.
- Quick Start
- Standards
- Extended Tests
- User Tests
- Easy Test
3
Add the actual test to Easy Link library
4
Trigger and Monitor setting for Surge test. (Each phenomenon has an individual configuration)
5
Add the actual test to User Test library
6
Load the default parameters for the Quick Start test (factory setting)
14.3.
Telecom Surge pulse settings
14.3.1.
Configuration
In the configuration menu the user set the following parameters:
- Trigger out signal at the BNC plug on generator front side
- Start trigger for the impulse or event on the BNC Ext. Trigger plug on rear side or blinking Start button
- Behavior of the EUT Monitor 1 and EUT Monitor 2 on BNC plug on rear side
