EUT Setup
In the EUT Setting the user specified his EUT. With this information the compact generator software will configure
all settings to the EUT requirements.
The user defines:
- Mode of supply voltage (AC/DC)
- Configuration of the EUT supply wiring
- Default channel for the power supply
- The mains supply voltage
- Current and Voltage limit and their settings
Advantages are:
- Select only set the possible couplings and hides all unnecessary settings for the user
- Filters the standard tests adapted to the EUT like AC 50Hz, AC 60 Hz, DC.
- Set the motor variac to the settled nominal voltage
Select EUT setting menu

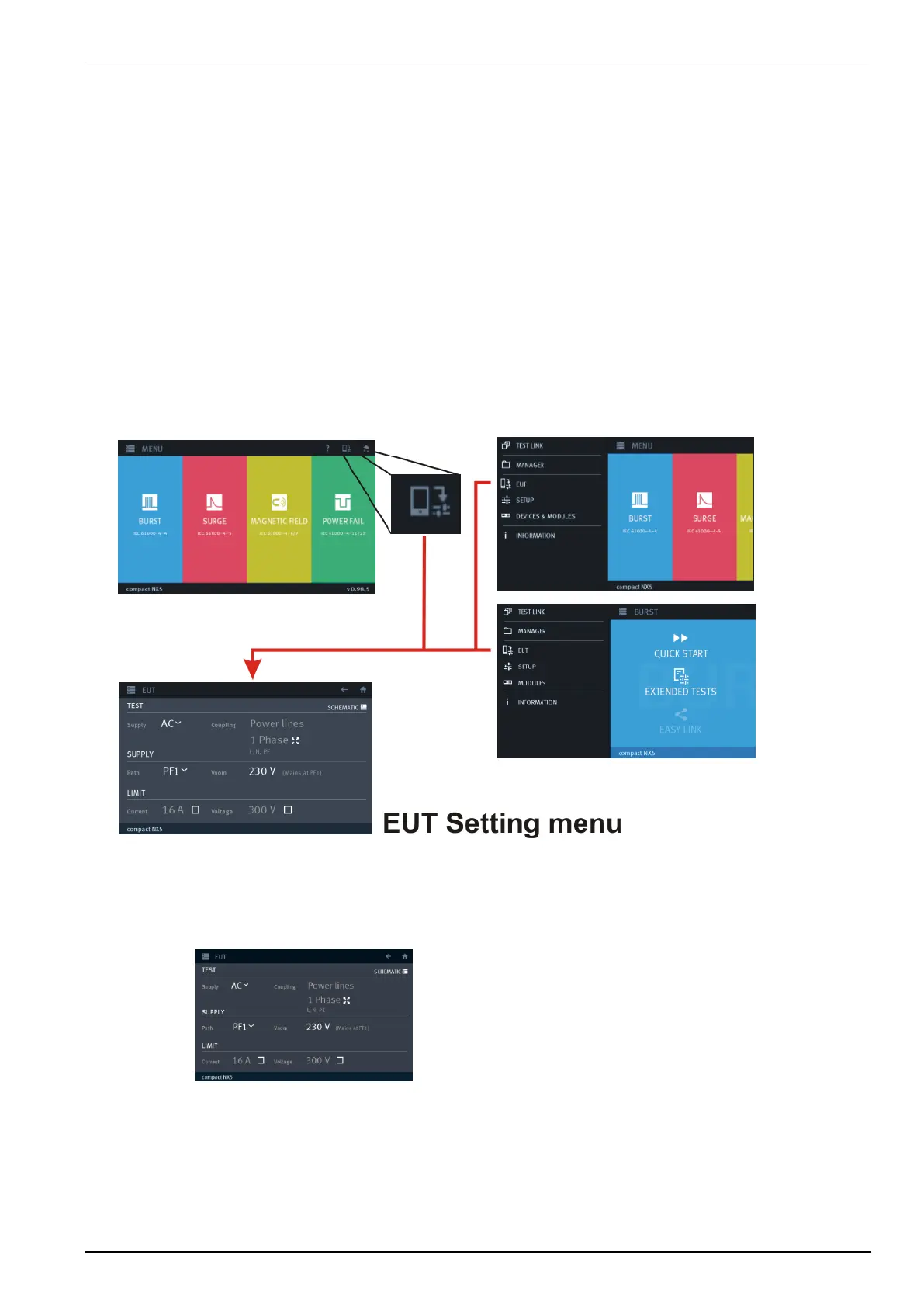

Figure below shows how enter into the EUT setting menu
The generator uses the settings and offers exact the needed
information for the EUT. All needless information will not be
displayed
EUT Configuration and Setup for the test.
EUT and Supply path and mains voltage configuration
EUT current and voltage limit
To Next Page
