EM TEST compact NX5 Series User Manual

EM TEST Compact NX5
Operating Manual V 1.06 84 / 143

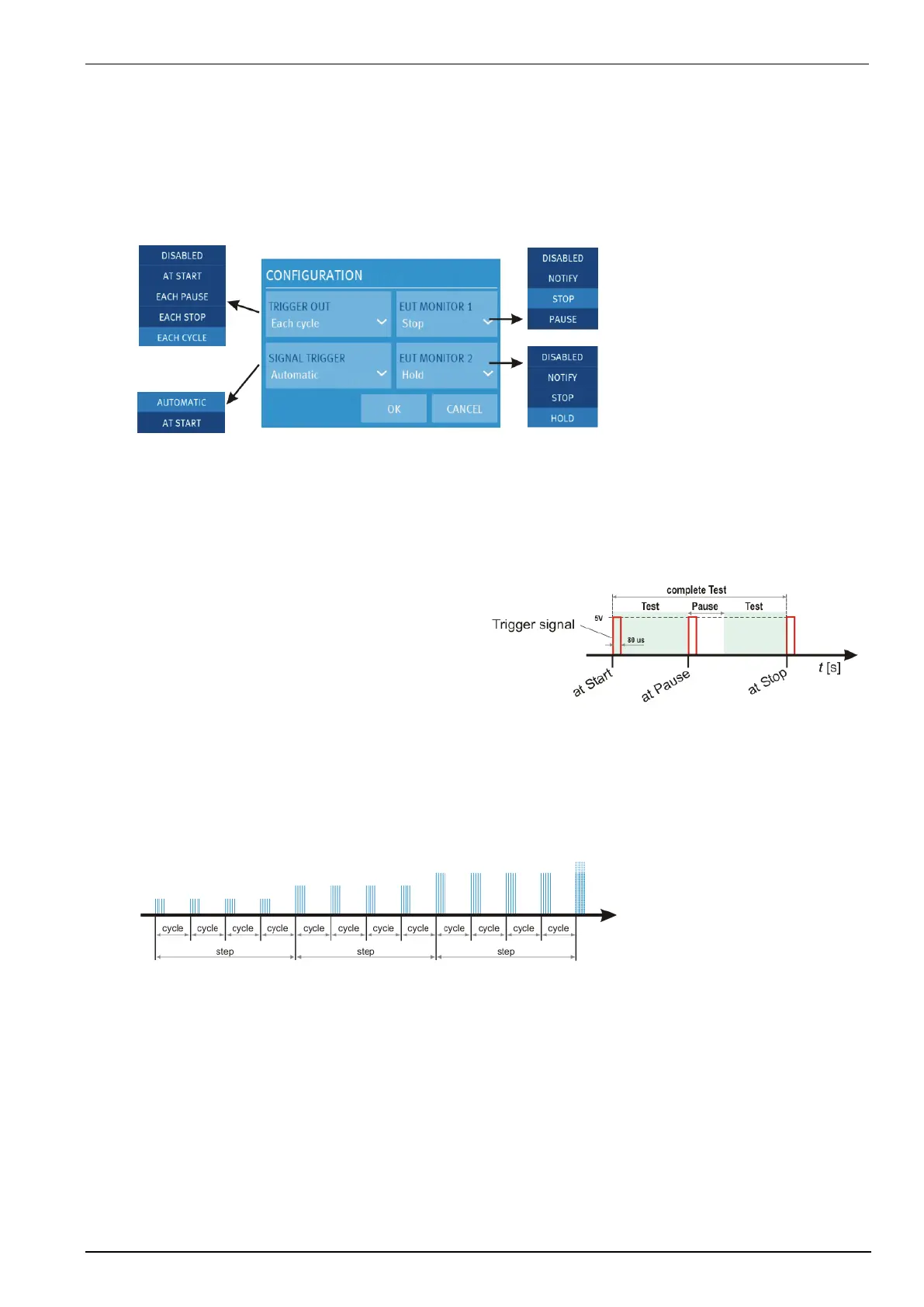

9.2.1.
Configuration
In the configuration menu the user set the following parameters:
- Trigger out signal at the BNC plug on generator front side
- Start trigger for the impulse or event on the BNC Ext. Trigger plug on rear side or blinking Start button
- Behavior of the EUT Monitor 1 and EUT Monitor 2 on BNC plug on rear side
9.2.1.1.
Trigger OUT
The trigger out signal is a programmable 5V edge signal located at the front side BNC Trigger plug. This
signal is for trigger other devices like oscilloscopes or other devices.
The generator offers the following trigger out
options:
- At Start
- Each Pause (Break)
- Each Stop
- Each Cycle every burst packet release
Iterations
For Iteration tests the parameters changes after each step as shown in the figure below. Depends of the
order and setting the following parameters can change:
- Polarity
- Voltage
- Frequency
- Phase angle
Example with voltage iteration that illustrate trigger out for cycle and step
