EM TEST Compact NX5
Operating Manual V 1.06 76 / 143

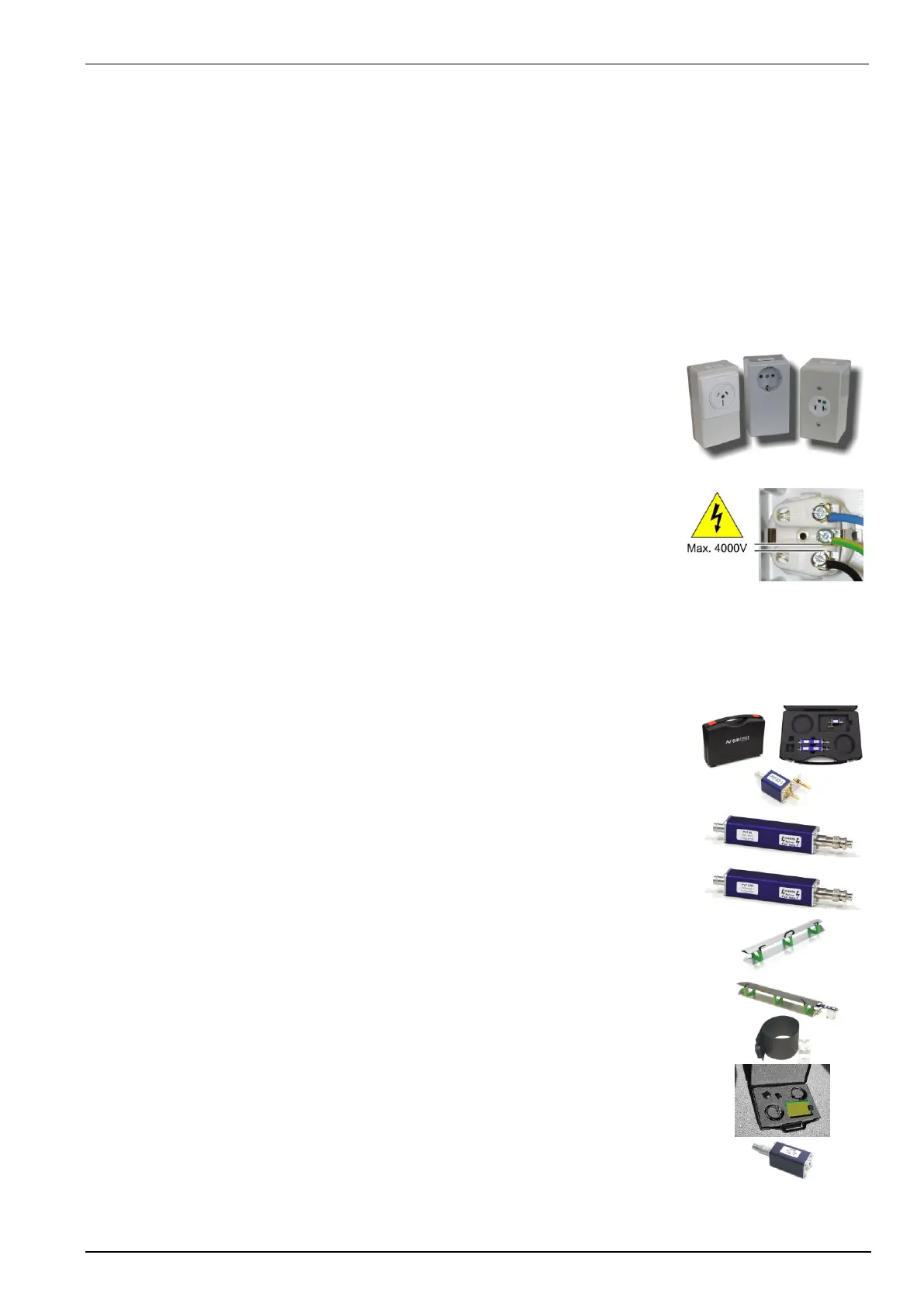

Basic equipment
Generator model: compact NX5 with recommended modules (Burst, Surge, Power Fail, Magnetic Field,
Telecom Surge)
Mains cable
Mains cable for the EUT supply
Adapter for power cable
Manual
Calibration certificate
ESA Adapter for adapt different power mains connectors
As accessories adapters to different power mains connectors are part of the
delivery of EM TEST surge generators. E.g. these are adaptors for Schuko - US
- AUS - UK power mains connectors.
Most of these commercially available power mains sockets cannot withstand
surge voltages higher than 4000V. Therefore each of these EM TEST adaptors
are labeled to be used up to 4000V maximum.
In case that the EM TEST surge generator can generate higher surge voltages
than 4000V a sparkover at the power mains socket may occur.
Customers shall be aware of this matter and shall not use higher voltages than
labeled on the adapter.
For testing higher voltage it is necessary to use high voltage cables with
sufficient isolation and safety banana connectors connected direct to the
generator output plugs (L-N-PE).
PVF BKIT 1 Calibration kit for Burst verification on EUT output including
PVF 50 + PVF 1000 and PVF AD1 adapter
PVF AD1 adapter for calibration
PVF 50 Matching resistor 50 with integrated attenuator (1:100)
PVF 1000 Matching resistor 1000 with integrated attenuator (1:500)
ICC Industrial capacitive coupling clamp as per IEC 61000-4-4 to couple the fast
transients to signal and data lines.
CCI PVKIT 1 Calibration kit for capacitive coupling clamp as per IEC 61000-4-
4 Ed.3
- Flexible plate insulated
- Support for PVF 50 and adapter to PVF 50
ITP EF Radiating set for immunity and emission
A6dB as additional 6 dB / 50 attenuator of the test signal
