EM TEST compact NX5 Series User Manual

EM TEST Compact NX5
Operating Manual V 1.06 12 / 143
3.2.
Installation of the compact NX5 system
3.2.1.
Unpacking
Check the packaging for signs of damage in transit. Any damage should be reported immediately to the
transportation company and the local representative.
Lift the compact NX5 test system out of its packaging. Place the test system so that there is sufficient free space
around the cooling air inlets on both sides and behind the fan outlet on the rear panel.
NOTE Do not dispose of packaging materials. All packaging should be retained in the event that the instrument or any
of its accessories should need to be returned to a EM TEST service center for repair or calibration.

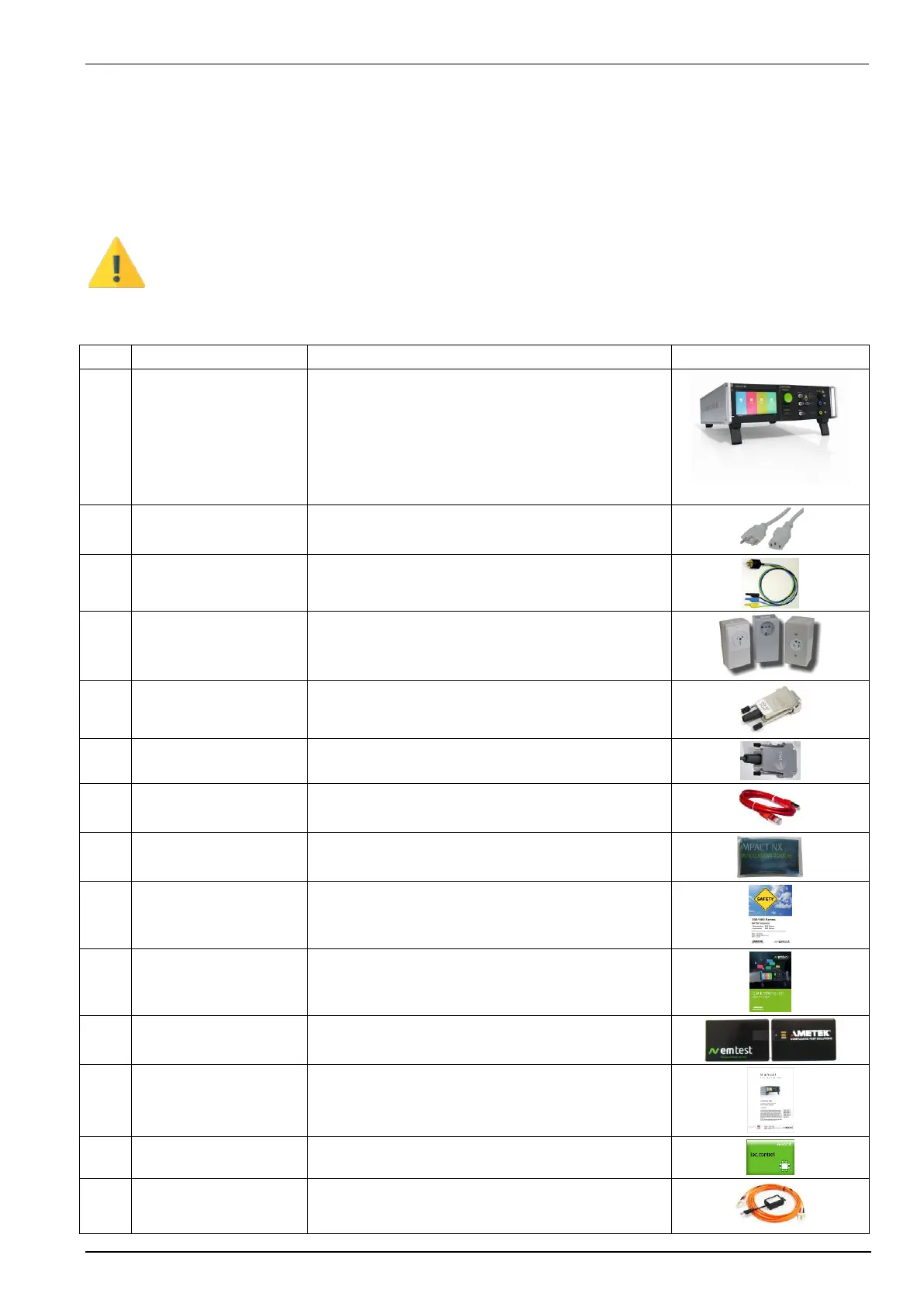

Using the following list, check that all the items ordered have been delivered:
Item
Name
Remark
1
Compaxt NX5
Compact NX5 generator including
- Single phase coupling network 300 V / 16 A
Including ordered Modules
- Burst Module
- Surge Module
- Power Fail Module
- Telecom Surge Module
2
Power Mains cable
Power Mains cable
- Connectors country coded
3
ESC
EUT Supply Cable
- Connectors country coded
4
ESA1
EUT Supply Adapter
- Connectors country coded
5
SCC AD
Safety Circuit Adapter (Sys. Link)
Short circuit for Interlock
6
SWL AD
Warning Lamp Adapter
7
Ethernet cable
Ethernet crossover network cable
RJ45, Cat 6, SF/UTP, red
8
Cleaning tissue
9
Safety Manual
Safety Manual
200 / 500 /NX Series
10
Quick Start Guide
Quick Start Guide
Compaxt NX – English or German
11
USB Memory card
Files on USB Memory card
12
User Manual
User manual (pdf on the memory card)
13
Iec.control Software
Software iec.control, (on the memory card)
14
Software license
If ordered on a license sheet
- UOC Optolink Converter USB to LWL
- Optical fiber cable 5m

EM TEST compact NX5 Series Specifications

General

Brand	EM TEST
Model	compact NX5 Series
Category	Laboratory Equipment
Language	English
