EM TEST Compact NX5
Operating Manual V 1.06 80 / 143
9.1.2.
Standard test routines

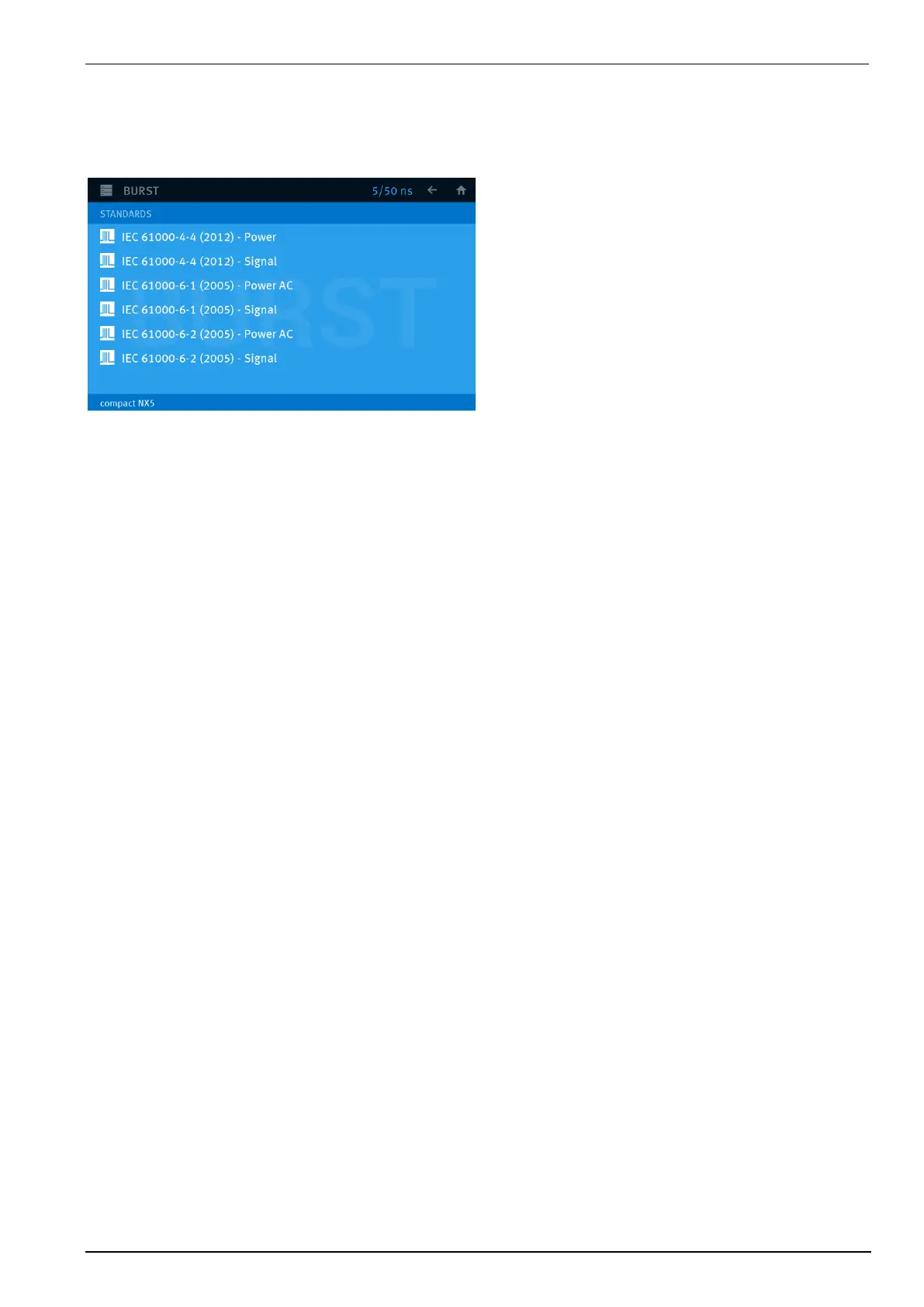

The user can select preprogrammed standard test routines.
Standard Menu
Within this test routine all standard parameters can be changed online during testing at the 1-phase and coaxial
50 Ω output of the compact NX5 generator. This procedure therefore is very easy and fast to use.
The user can easy select the following parameters
Level (voltage): Select Level 1(500 V), Level 2(100 V), Level 3(2000 V), Level 4(4000 V)
Coupling (Cpl): Common (L+N+PE), All (All combinations (L, N, PE), 50 Ohm (coaxial output)
Rep (frequency): 5 kHz (td= 15 ms), 100 kHz (td= 0.75 ms)
