EM TEST compact NX5 Series User Manual

EM TEST Compact NX5
Operating Manual V 1.06 133 / 143
14.3.1.1.
Trigger OUT
The trigger out signal is a programmable 5V edge signal located at the front side BNC Trigger plug. This
signal is for trigger other devices like oscilloscopes or other devices.
The generator offers the following trigger out
options:
- At Start
- Each Pause
- Each Stop
- Each Pulse every surge impulse release
- Each Step for tests with iteration
Iterations

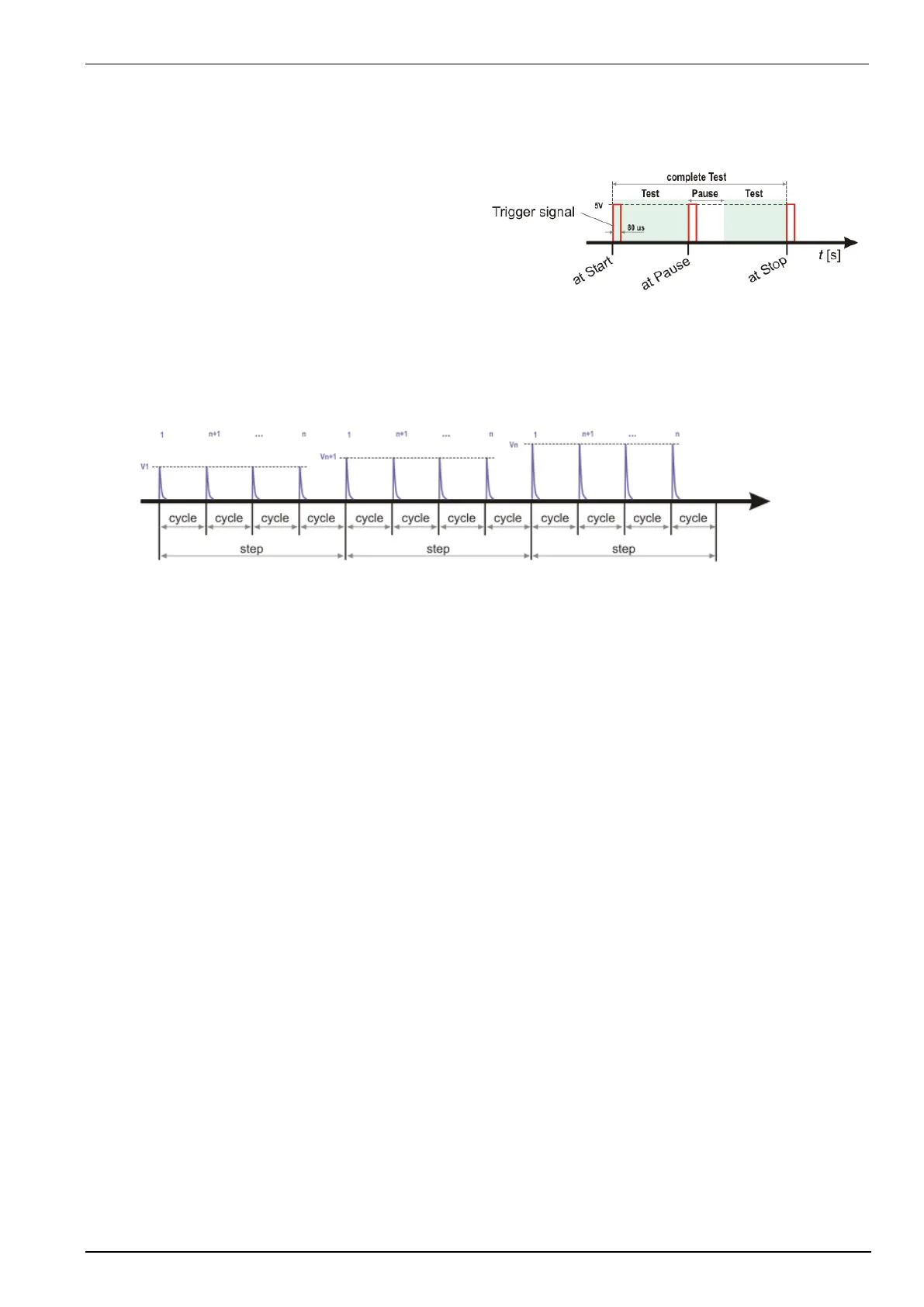

For Iteration tests the parameters changes after each step as shown in the figure below. Depends of the
order and setting the following parameters can change:
- Polarity
- Voltage
Example with voltage iteration that illustrate trigger out for cycle and step
