EM TEST Compact NX5
Operating Manual V 1.06 121 / 143
12.9.1.4.
Technical Data V 4780 models
Design
Tapped auto-transformer with 40%, 70%, 80%, 100 % output voltage
Input:
Voltage
Uin: max. 250 V
Frequency
50/60Hz
Tap selection
manually (V4780 ) banana plugs for 40%, 70%, 80%
Remote control
0.10V dc (V4780 S2) for 40%, 70%, 80%
Output:
Voltage tap [% Unom]
120 % (V4780 S1)
100 %
80 %
70 %
40 %
V 4780, S1, S2
V 4780 S3
Current Imax.
16 A
32 A
Power
4.1 kVA
8.2 kVA
Fuse
2x 16 A
2x 35 A
Weights and measures
Dimensions
95 x 170 x 190 mm (H x B x T)
200 x 170 x 190 mm (H x B x T)
Weights
ca. 7 kg
ca. 14 kg
Temp Ambiance
10C - 35C
10C - 35C
12.9.1.5.
Setup V4780
The output voltages are available at
safety banana plugs. For safety
reasons the related safety cables
shall be used.
The power supply input is realized
with a power connector for L, N and
PE. The voltage shall be 100% of
the nominal voltage Vn.

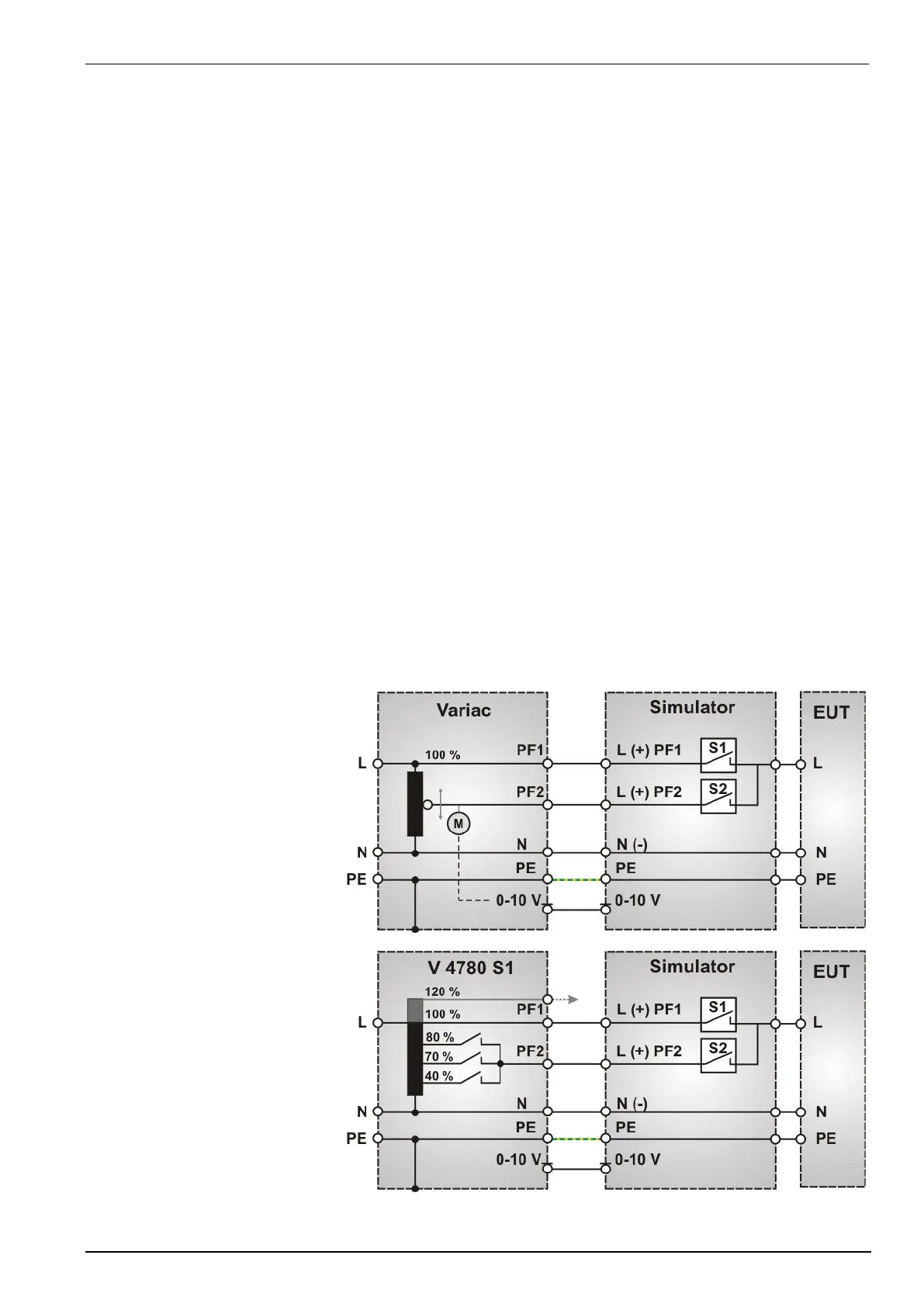

Connection V 4780 / V 4780 S2
Connection V 4780 S1
