EM TEST Compact NX5
Operating Manual V 1.06 39 / 143

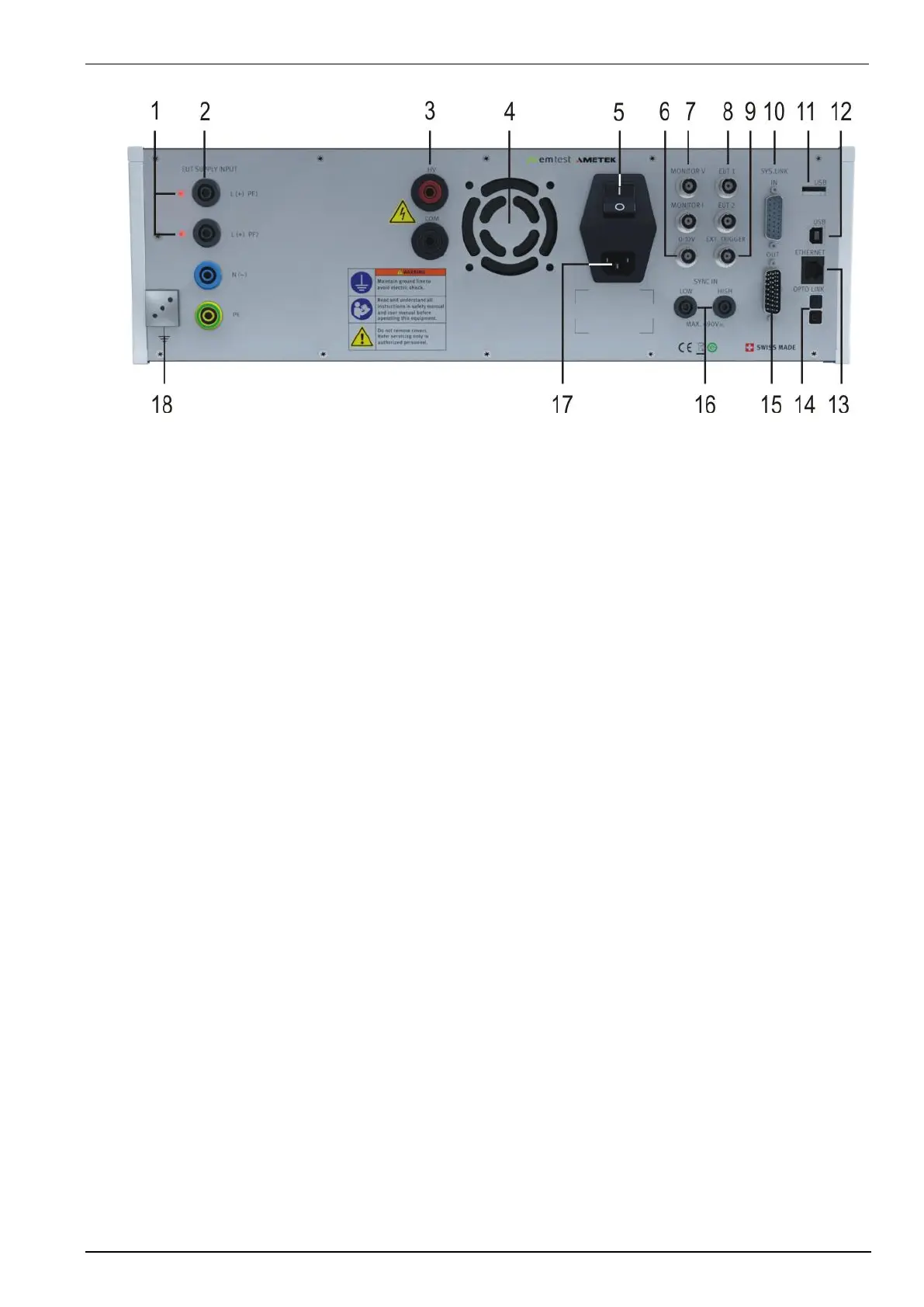

1 Phase indication PF1 / PF2
2 EUT supply input
3 Surge output HV - COM
4 Ventilator
5 Mains Switch
6 DC output 0-10 V
7 Monitor V, Monitor I
8 Fail, EUT 1, EUT2
9 External Trigger IN
10 Sys Link IN
11 USB A interface
12 USB B interface
13 Ethernet interface
14 Opto Link Interface
15 Sys Link OUT
16 Sync input
17 Mains input device
18 Reference earth connection
6 DC output 0-10 V
Dc output for control an external AC source.
0.0 V = zero position
10.0 V = max. position for maximum voltage
7 Monitor V and Monitor I (BNC connector)
BNC output for measuring the EUT supply voltage and supply current
Impedance measuring instrument: 1M.
Accuracy: 5%
Monitor V:
Voltage output: 10 V = 300 V rms, 450 V peak
Internal divider: 42.5 : 1
Monitor I:
Current output: 10 V = 16 A rms,
Internal divider: 2.26 A/V
Max. 16 A rms, max. 25 A dc
8 Fail input EUT 1, EUT 2
Programmable input monitors for fail events. Possible input settings: Notify, Stop, Break or Disabeled
Input signal: 5 V pos. slope
Max- Input voltage: +24 V
9 External trigger
One single event, burst, surge, voltage dip can be released. Trigger level 5V positive going.
BNC connector 50
Digital Input (0 5 V)
Positive slope
Trigger Level: 2.5 V +/-1 V
Max- Input voltage: +24 V
10 Sys Link input
Sys link is the internal control bus to the connected compact NX devices. The sys link is a daisy chain wired bus
for connect the devices in series. The bus includes a 26 pole high density connectors. This port is terminated
with the SSC AD Safety circuit adapter with a short circuit.
