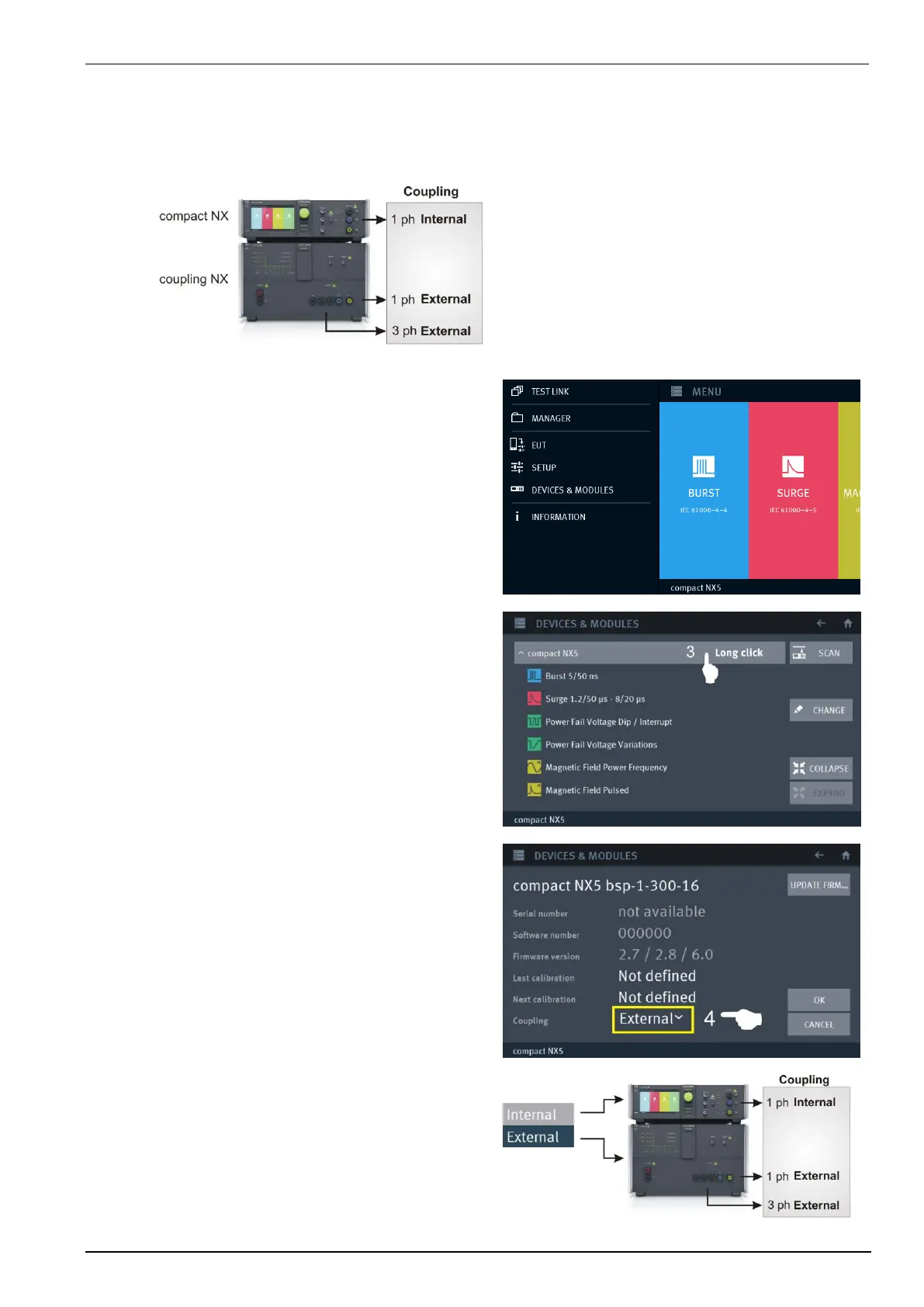

Select the output path where to couple the impulse
To define at which device the generated pulse to applies, the user must configure it in the system. This happens
in the menu Devices and Modules
Internal Pulse output at the compact NX5 CDN
- 1 phase
External Pulse output at the coupling NX5…CDN
- 1 phase
- 3 phase
Software Update procedure
1. Select MENU /
2. Select DEVICES & MODULES
3. Make a long click to compact NX5
4. Select the coupling device for testing:
- INTERNAL
using CDN from compact NX5 generator
- EXTERNAL
using CDN from coupling NX5
