EM TEST Compact NX5
Operating Manual V 1.06 66 / 143

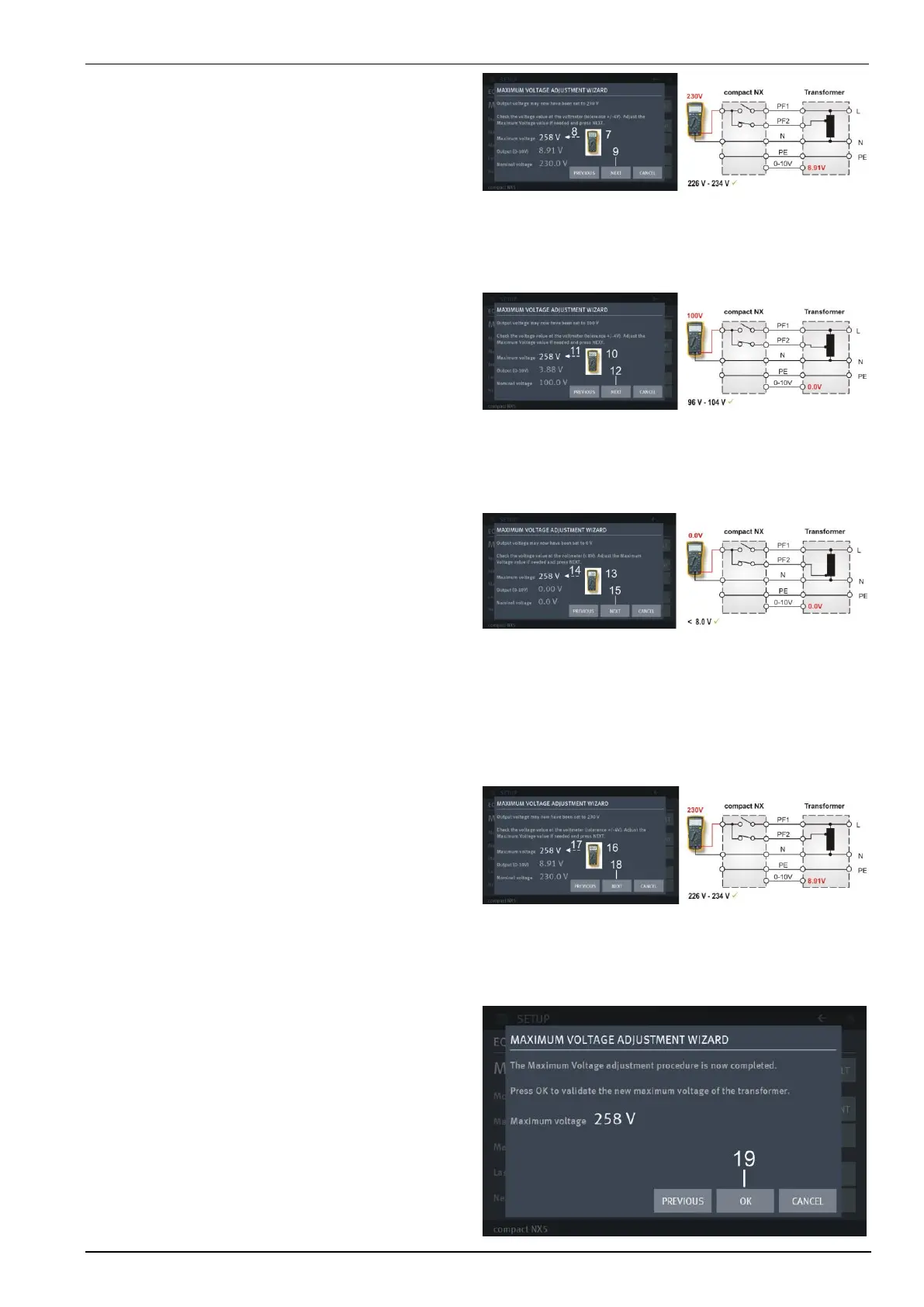

Check at Vnom (230 V) level. variac output voltage
- Settled nominal voltage: =V
nom
(230 V)
- Output (0-10 V) voltage: 230V/Max. voltage *10.00 V
7. Read the value at the voltmeter and check if
the value is inside the tolerance of ± 4 V
8. If needed correct the Maximum voltage
- decrease the value for higher voltage
- increase the value for lower output
9. Press NEXT to continue
Check at Vnom (100 V) level. variac output voltage
- Settled nominal voltage: = V
nom
(100 V)
- Output (0-10 V) voltage: 100V/Max. voltage *10.00 V
10. Read the value at the voltmeter and check if
the value is inside the tolerance of ± 4 V
11. If needed correct the Maximum voltage
- decrease the value for higher voltage
- increase the value for lower output
12. Press NEXT to continue
Check at Vnom (0 V) level at zero position
- Settled nominal voltage: = V
nom
(0 V)
- Output (0-10 V) voltage: 0 V to 0.3 V
13. Read the value at the voltmeter and check if
the value is below 8 V
14. If needed correct the Maximum voltage
- decrease the value for higher voltage
- increase the value for lower output
NOTE: The correction at this level will change the
voltage only marginal. Note that one
transformator winding is approx. 1.9 V
15. Press NEXT to continue
Check at Vnom (230 V) level. variac output voltage
- Settled nominal voltage: =V
nom
(230 V)
- Output (0-10 V) voltage: 230V/Max. voltage *10.00 V
16. Read the value at the voltmeter and check if
the value is inside the tolerance of ± 4 V
17. If needed correct the Maximum voltage
- decrease the value for higher voltage
- increase the value for lower output
18. Press NEXT to continue
Final screen of max. voltage adjustment
- Settled nominal voltage: =V
nom
(230 V)
- Output (0-10 V) voltage: 230V/Max. voltage *10.00 V
19. OK: Write the max. Voltage value into
the parameter list and exit wizard.
Previous: Jumpers to the previous page
Cancel: Exit the wizard without change
