EM TEST compact NX5 Series User Manual

EM TEST Compact NX5
Operating Manual V 1.06 95 / 143
This Function is actually not implemented
ANSI A coupling after n pulses
The coupling mode with 12Ω und 9µF will automatically be
changed after the preselected number of pulses has been
released. All possible coupling modes will be selected. The
same parameters as under Quick Start can be selected.
ANSI B coupling after n pulses
The coupling mode with 2Ω und 18µF will automatically be
changed after the preselected number of pulses has been
released. All possible coupling modes will be selected. The
same parameters as under Quick Start can be selected.
For coupling ANSI B coupling L-N is actually not
supported with NX system.

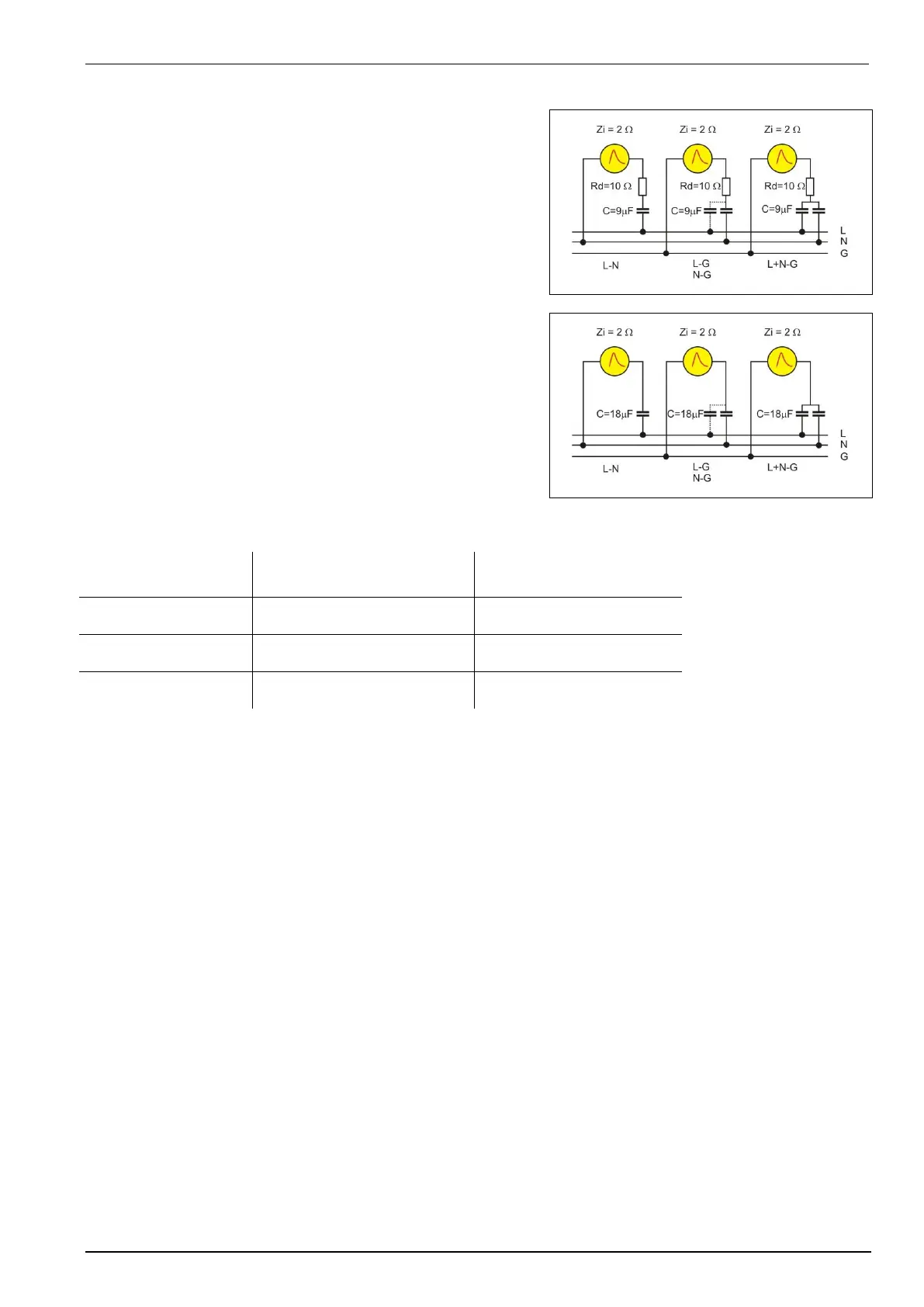

Surge Generator and coupling impedances
Line to Line
Line to PE (IEC)
Line to GND (ANSI)
IEC
2Ω; 18µF
12Ω; 9µF
ANSI A
12Ω; 9µF
12Ω; 9µF
ANSI B
2Ω; 18µF
2Ω; 18µF

EM TEST compact NX5 Series Specifications

General

Brand	EM TEST
Model	compact NX5 Series
Category	Laboratory Equipment
Language	English
