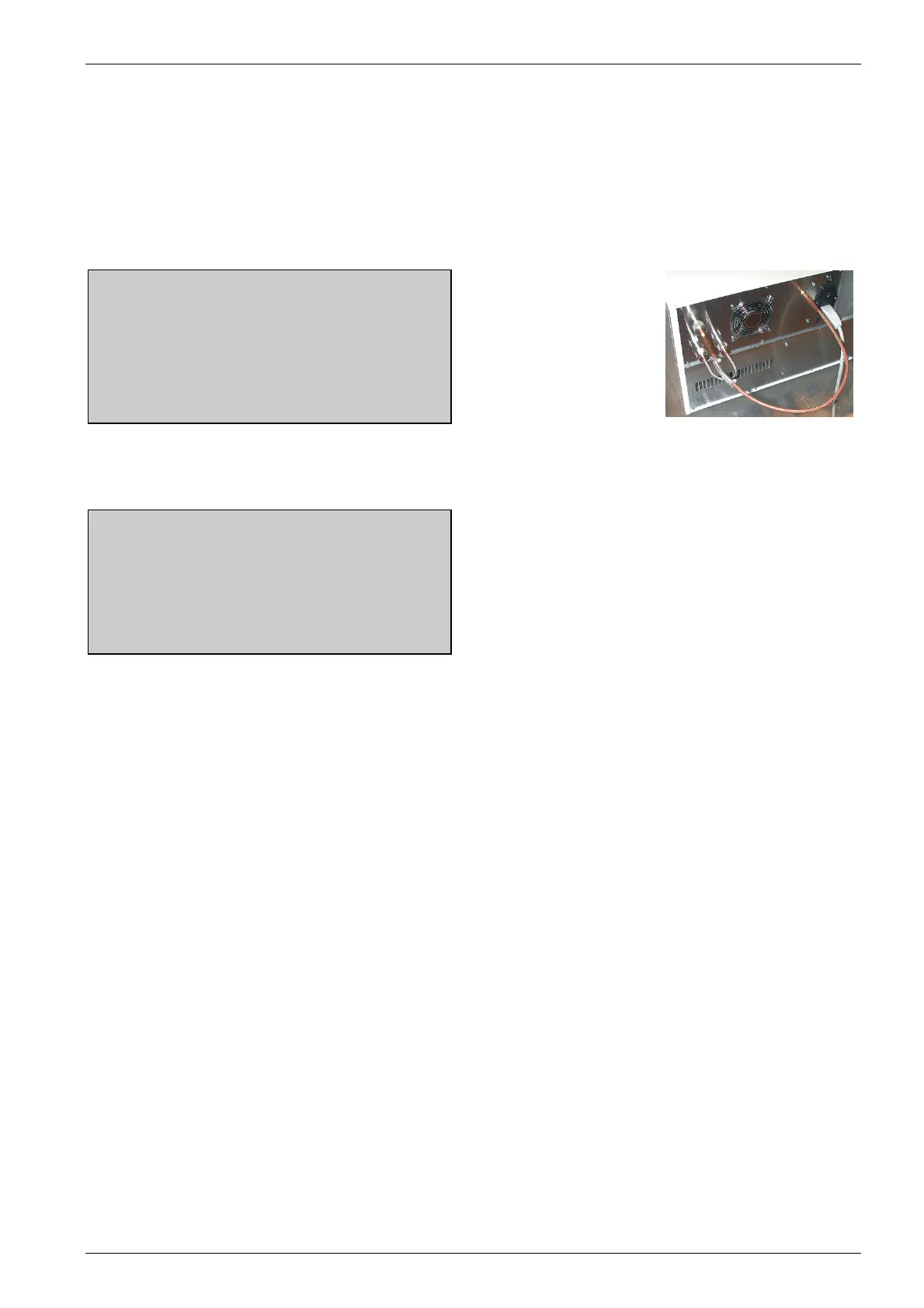

5.4. Function Check amplifier switch ( 1GHz model only)
This function is for checking the correct operation of the built in amplifier switch. During this test the output
connector at the frontside should be left open.
The function check has the following procedure:
Page 3 (Service )
Function check amplifier switch
- Press TEST ON
- Disconnect the HF OUT
- Connect the SG OUT directly
to the CPL IN ( on the backside )
continue break
Fig 5.4
F1 F2 F3 F4 F5 F6 F7
Page 3 (Service )
Function check amplifier switch
result
Pass / Fail
end
F1 F2 F3 F4 F5 F6 F7
