EM TEST CWS 500D - CDN Applications as per IEC 61000-4-6

EM Test CWS500 D
User manual V 1.07 5 / 34
2.3.2. CDN Applications as per IEC 61000-4-6

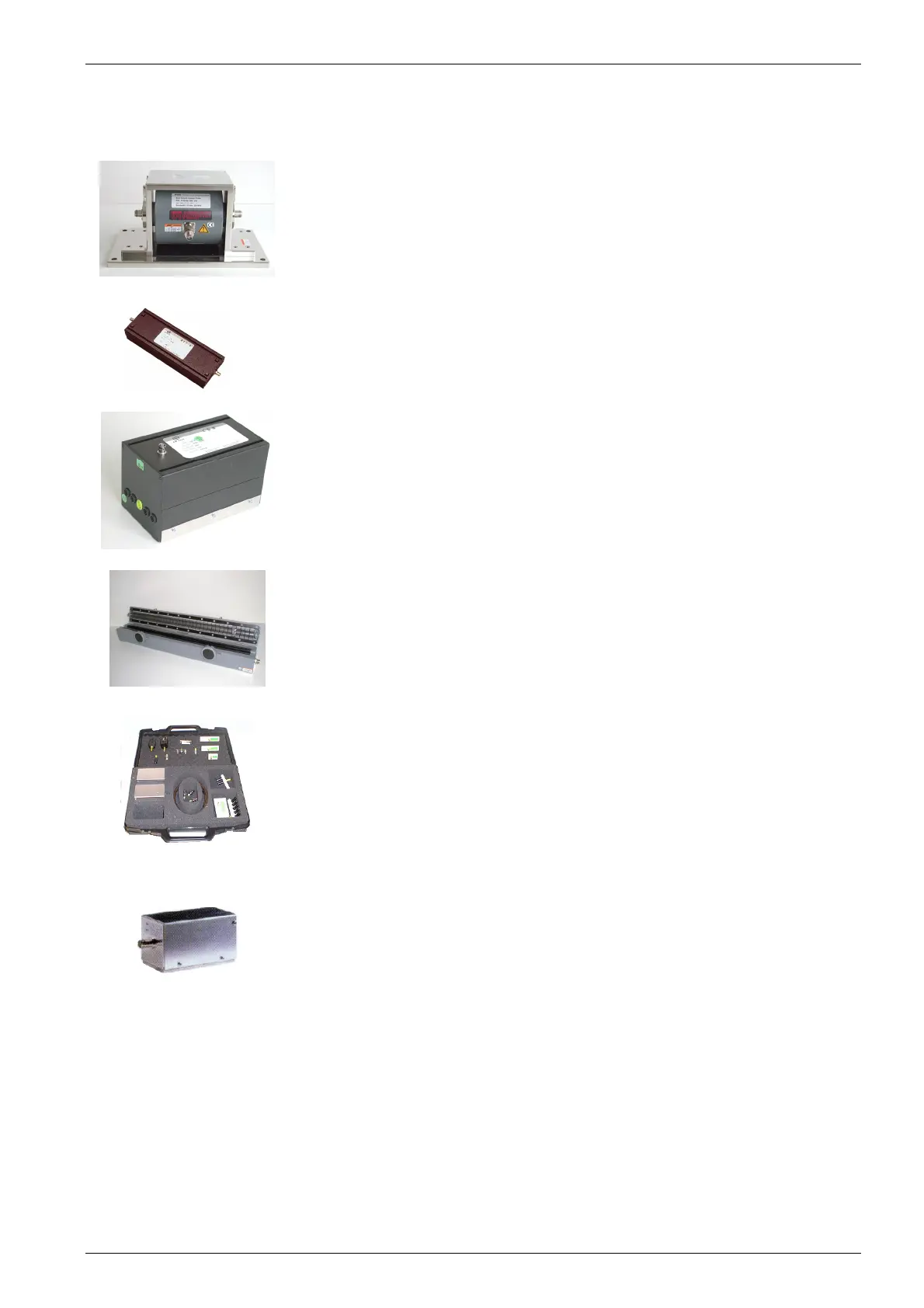

Fig 2.11
Bulk Current Injection Clamp BCI type
F-120-9A 10kHz – 230MHz
FCC-BCICF-4 Calibration Fixture for BCI clamp (jig)
Fig 2.12
Attenuator 6 dB / 75W
Fig 2.13
Coupling / Decoupling Network
Types:
CDN-M 1; M 2; M 3; M4; M 5;
CDN-S1-50/75Ω; S 2; S 4; S 9; S 15; S 25; S68
CDN-T 2; T 4; T 2-RJ11; T8-RJ45;
CDN-AF 2; AF 3; AF 4; AF 8
Fig 2.14
EM Clamp
Type EM 101
Fig 2.15
Calibration
CWS-Cal Basic Calibration Kit
Transport Case
150Ω to 50Ω Adapter
BNC cable 0.5m
Cal adapter according to CDN ,
Fig 2.16
Adapter
R100 150Ω to 50Ω Adapter
R100A 150Ω to 50Ω Adapter for Current Clamp CAL Fixture
