4. Front Panel Operation
4.1. Basic Operations
The simulator is operated by an easy menu control system.
Seven function keys are available to select parameters and
functions.

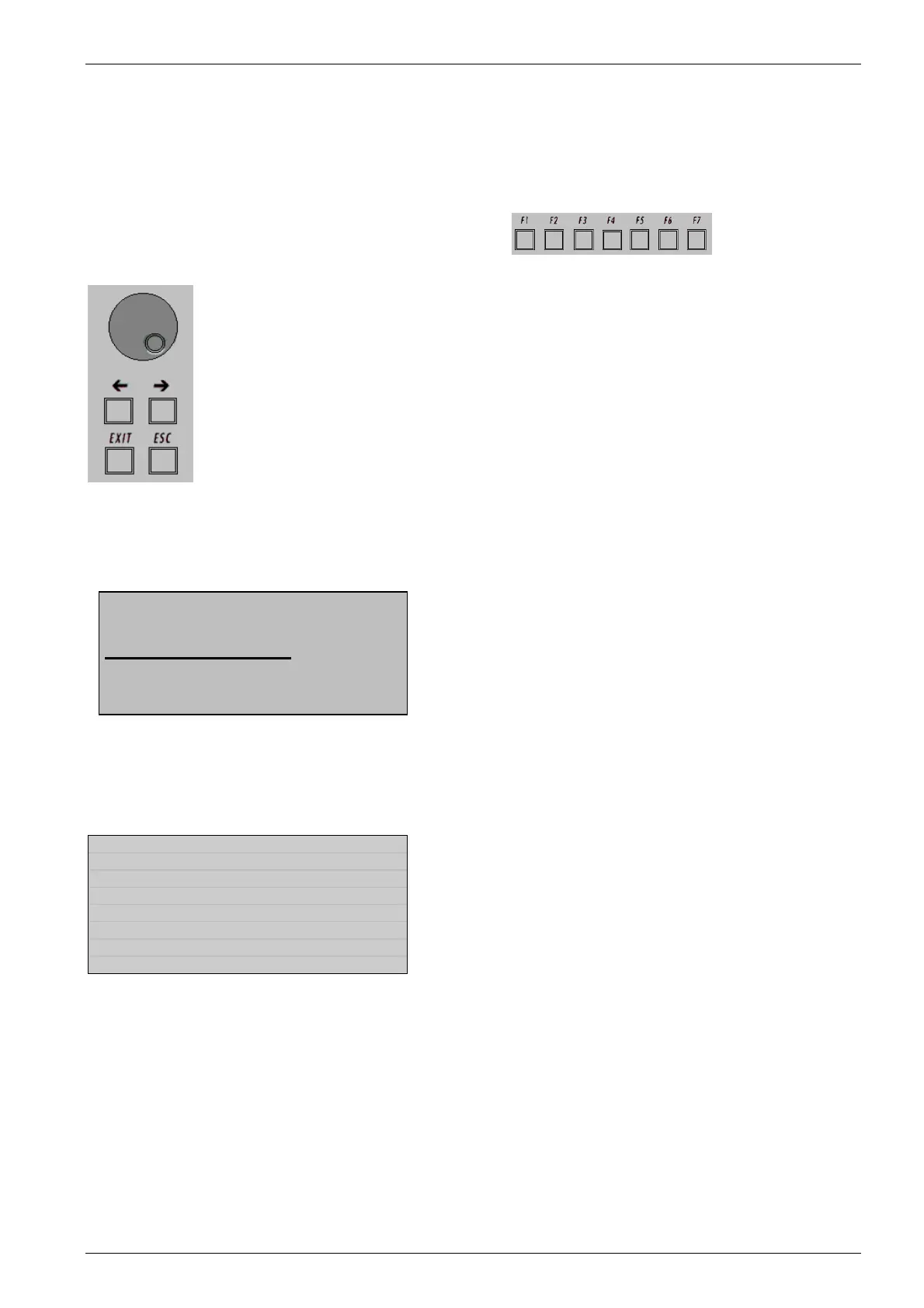

Fig 4.1
The selected parameter is blinking and can be changed by turning the knob (incr./decr.).
ÍÎ : The digit to be changed can be selected with the cursor (ÍÎ ).
- Setted values are direct indicated on the screen.
- Status on the bottom lines shows the desired status after pressing the function
key.
ESC : ESC will take you back to the previous level in the menu and set the displayed
values. The latest settings are stored automatically and will be recalled when the
menu is selected again.
EXIT : The firmware will reset to the main screen.
Fig 4.2
Start-up display
EM TEST
C W S 5 0 0D
RF 9kHz – 1 GHz
V 2.11a03 SWN: 002234
← Generator Model
← Frequency Range
The version number and the software number SWN are used for tracing purposes. These numbers are listed in
the test reports and calibration certificates. These numbers are also listed within the test reports generated by
the software report generator.
Page 1 (Main Menu)
MAIN MENU
F1 : Quickstart
F7 : Service
F1 F2 F3 F4 F5 F6 F7
F1 Quickstart
Manual operation by entering the attenuation, frequency and modulation
F7 Service
Setup can be selected and displayed
To Next Page
