Disk-array enclosure (DAE)
EMC VNX7500 Parts Location Guide 49

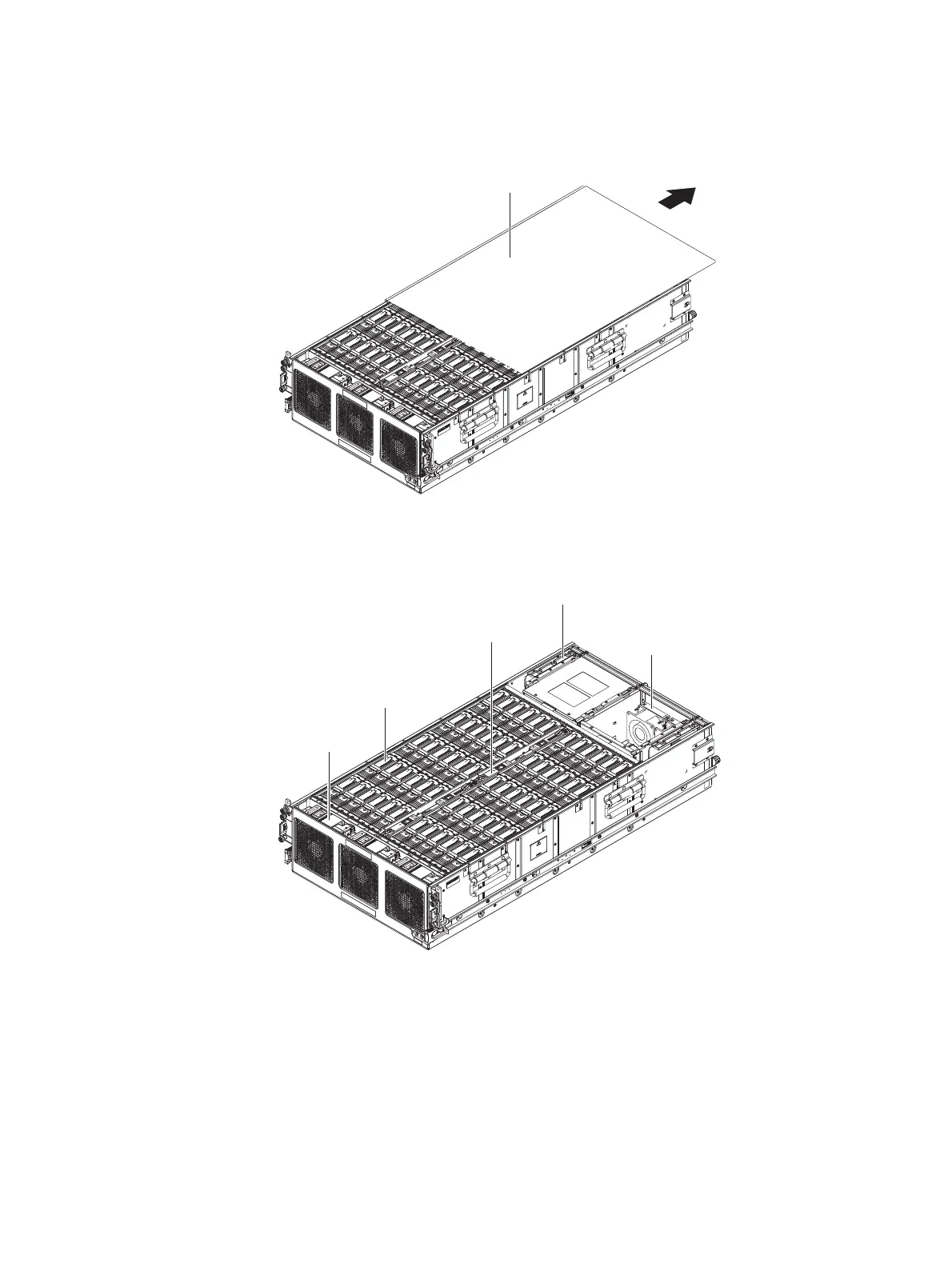

Figure 41 shows an example of a 4U, 60 DAE with the top cover open showing the disk
drives, LCCs, and the fan control modules (or fans).
Figure 41 4U, 60 DAE (with top cover open)
Figure 42 shows an example of the full interior view of a 4U, 60 DAE.
Figure 42 4U, 60 DAE (interior view)
The ICMs and power supplies shown in Figure 42 are accessed from the rear of the 4U, 60
DAE. “4U, 60 (2.5- or 3.5-inch) DAE ICM and power supply” on page 54 provides more
information.
Top cover
VNX-000649
CL4658
Disk
ICM
Power Supply
Fan
LCC
