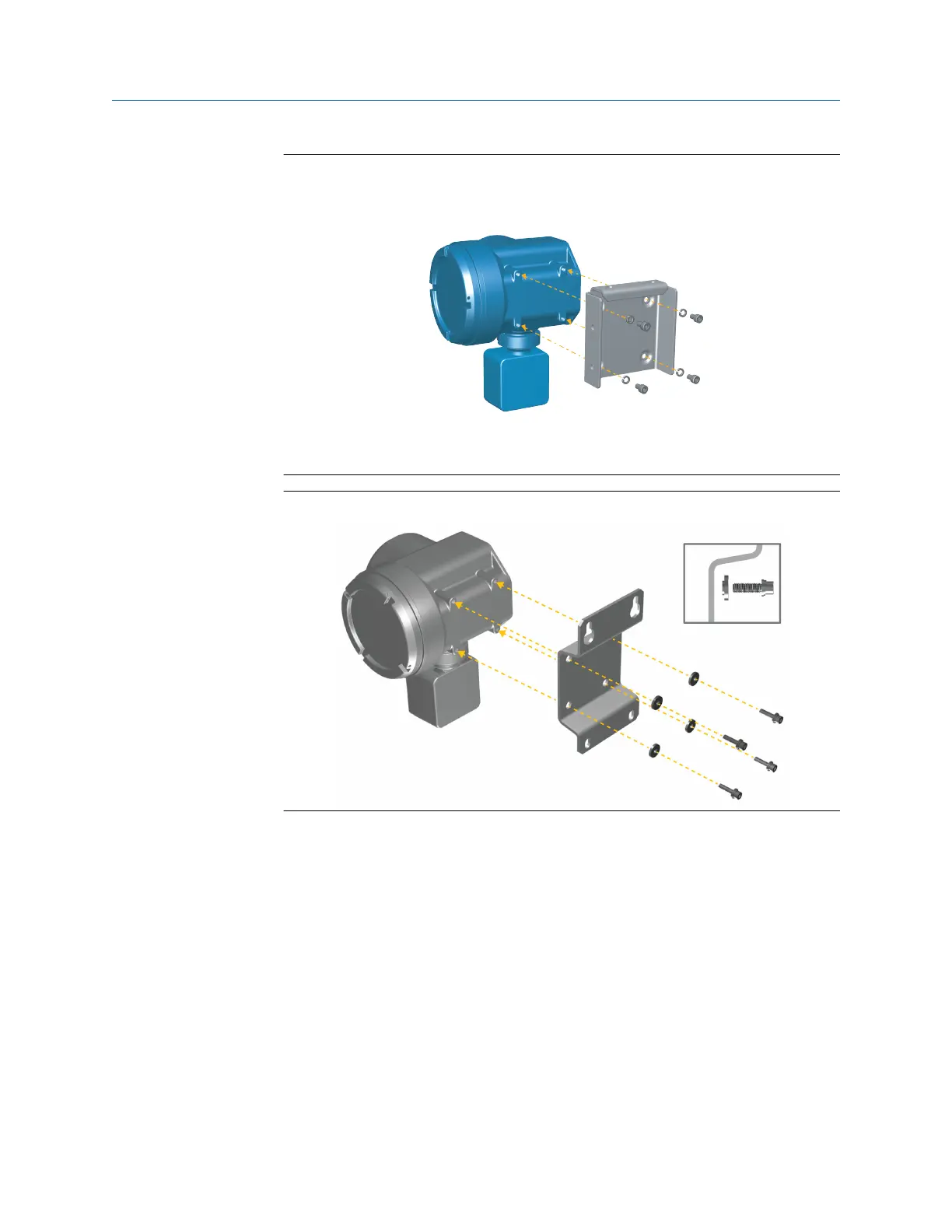

Figure 3-1: Mounting bracket to an aluminum transmitter
Figure 3-2: Mounting bracket to a stainless steel transmitter
2. For wall-mount installations, secure the mounting bracket to the prepared surface.
Mounting and sensor wiring Installation Manual
April 2022 MMI-20027478
12 Micro Motion 5700 Transmitters with Configurable Inputs and Outputs
