3. For aluminum transmitters, place and attach the transmitter-mounting bracket to
the mounting bracket secured to the wall or instrument pole.

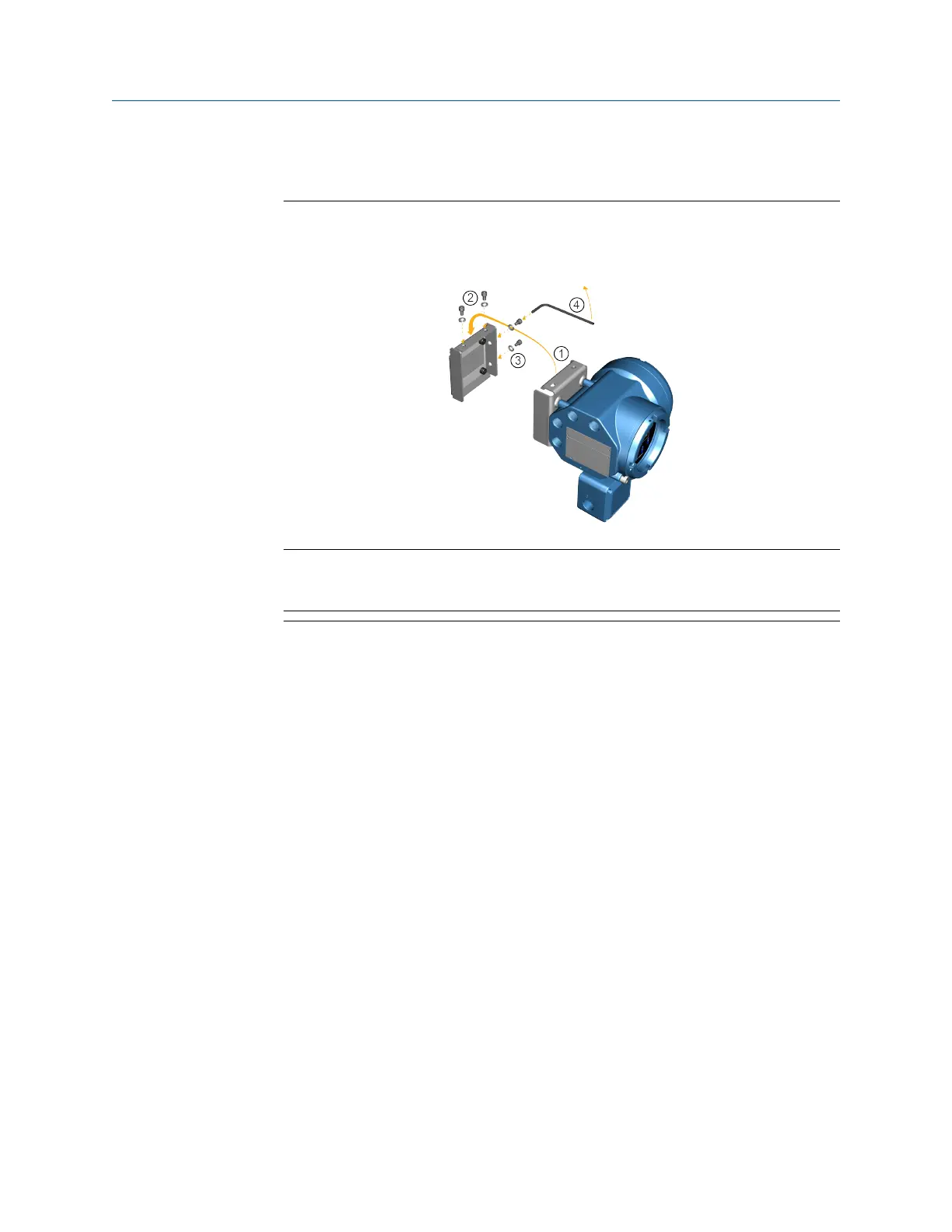

Figure 3-5: Attaching and securing an aluminum transmitter to the mounting
bracket
Tip
To ensure the mounting bracket holes are aligned, insert all attachment bolts into
place before tightening.
3.2.2
Mount the transmitter to a pole
Prerequisites
• Ensure that the instrument pole extends at least 12 in (305 mm) from a rigid base and
is no more than 2 in (51 mm) in diameter.
• Confirm that you have the necessary tools, and the instrument-pole mounting kit
shipped with the transmitter.
Procedure
For pole-mount installations, attach the U-bolt mounting piece to the instrument pole.
Mounting and sensor wiring Installation Manual
April 2022 MMI-20027478
14 Micro Motion 5700 Transmitters with Configurable Inputs and Outputs
