3.4 Bottom Panel

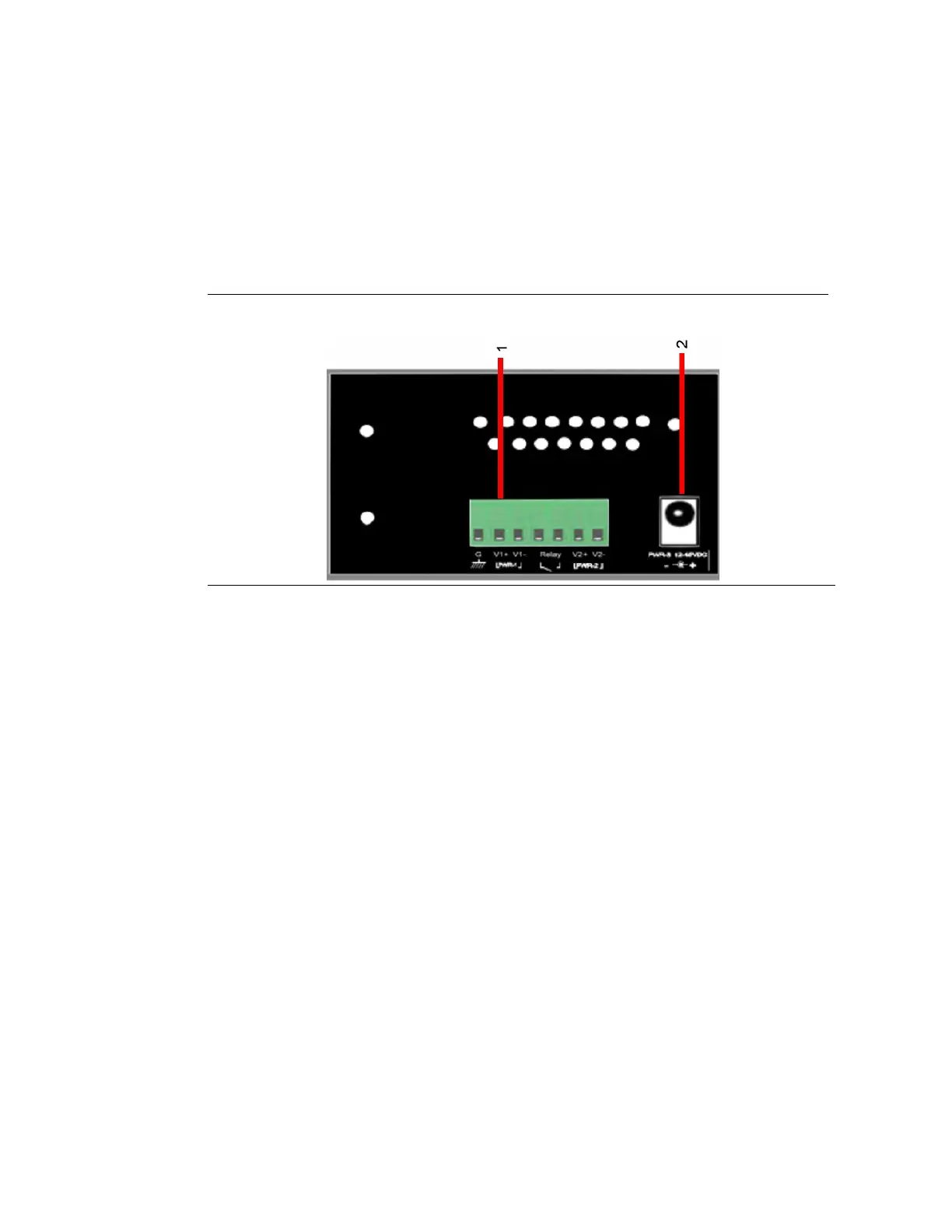

The bottom panel components of SLM042 are showed as below:
1. Terminal block includes: PWR1, PWR2 (12-48V DC) and Relay output (1A@24VDC).
2. Power jack for PWR3 (12-45VDC).
.
Figure 4: SLM042 Power Connection
